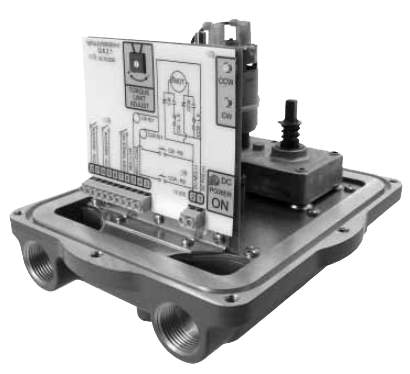

Jamesbury Q6 Series Electric Actuator
Brand: Metso
The Valvcon Q6-Series actuator was designed for use in remote, solar-powered locations.
The low current draw 12-volt dc motor, built-in dual relays, lightning surge protection, and NEMA 4/4X/7&9 enclosure make this product suitable for use in oil and gas fields, off-shore rigs, remote skids, and many other applications.
Features- Compact and lightweight
- Ideal for remote, solar locations using RTUs
- Designed for use in hazardous locations
- 80% duty cycle
- Agency approvals are standard
- Built-in dual relays provide signal isolation
- Low idle current: 3mA
- Long-term reliability
- No maintenance required
- Easy installation and set up
Specifications
Brand
Actuator Type
- Electric
Applications
- Aerospace
- Automotive
- Consumer Services
- Discrete Manufacturing
- Energy
- Environmental
- Oil/Pipeline
- Petrochemical
- Power & Utilities
- Process
- Recreation
- Transportation
- Water & Wastewater
Approvals & Certifications
- CSA
Conduit Connection
- 1/2" NPT Female
- 3/4" NPT Female
Current
- Idle: 3 mA
- Running (Full Load): 1.3 A
- Running (No Load): 0.3 A
Duty Cycle
- 80%
Electrical Protection
- Reverse Polarity
Electrical Rating
- SPDT: 11 A at 250 Vac
Environmental Protection
- IP66
- NEMA 4
- NEMA 4X
- NEMA 7
- NEMA 9
Flange Size - F07
- F07 - ISO 5211
Flange Size - F10
- F10 - ISO 5211
Indication
- Input Power: LED
Materials of Construction
- Gearing: Hardened Steel
- Stamped Gearing: Aluminum
- Stamped Gearing: Non-Metallic
Mounting
- ISO 5211
Operating Voltages
- 12 Vdc
Response Time
- Cycle (90°): 15 seconds
Switch Type
- SPDT
Temperature Range
- 0° to 66° C (32° to 150° F)
Torque
- 150 to 600 In/Lbs
