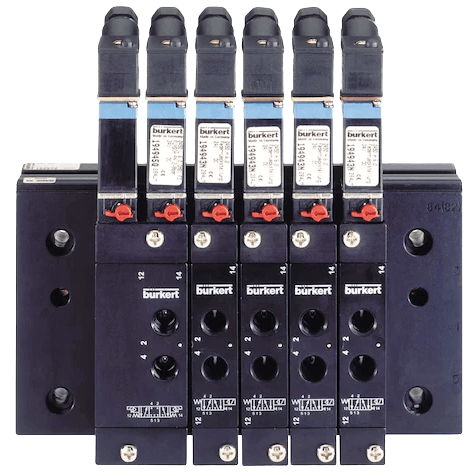

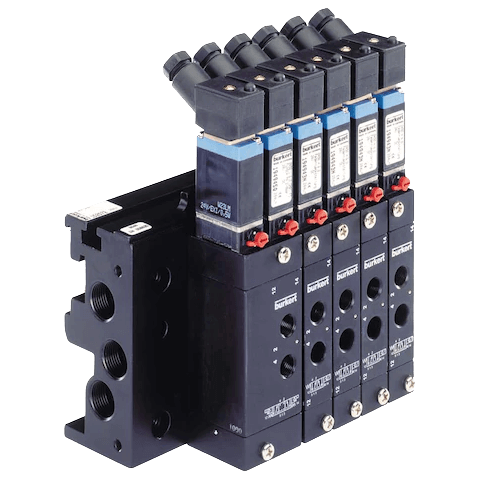

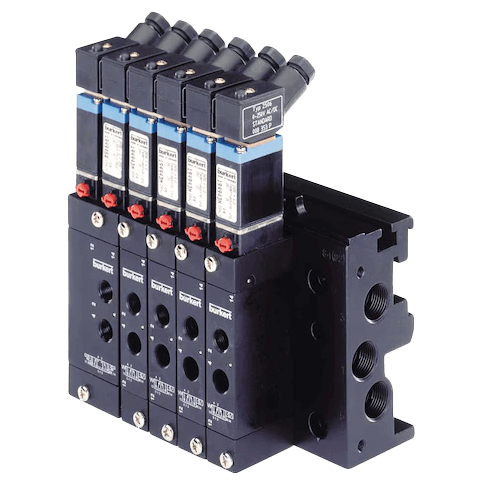

0450 Process Actuation System
Brand: Burkert Fluid Control Systems
The multi-way valve type 0450 Ex brings Burkert’s 0450 centralized process actuation solution to hazardous areas. Its high flow rates in combination with the aluminum bodies allow a wide range of applications.
Most commonly used safety barriers are approved for applications with the 0450 EExi. For easy installation, the valves can (on request) be supplied pre-wired to WAGO and Harting junction boxes.
Features- EEx ia IIC T6 approved
- Optimized System Solutions for hazardous areas
- High Flow Rates
- Long service life even with non-lube conditions
- Pre-tested and supplied easy to connect
Specifications
Ambient Temperature Range
- Pi = 0.7 W: -10° to 50° C (14° to 122° F) at T6
- Pi = 0.9 W: -10° to 60° C (14° to 140° F) at T5
Applications
- Chemical Industry
- Cosmetic Processing Equipment
- Pharmaceutical Processing Equipment
- Water Treatment/Processing Equipment
Approvals & Certifications
- EEx Ia Llc T6
BSP Connection
- G 1/8" Female
- G 3/8" Female
Electrical Connectors
- Cable Plug 2506, EaseOn Cable Plug 2510
- Junction Box
Enclosure, Body Material
- Aluminum Anodised
Environmental Protection
- IP65
Flow Rate
- 650 to 750 L/minute
Materials of Construction
- Pneumatic Module: Aluminum Anodised
- Valve Internal: Aluminum
- Valve Internal: Brass
- Valve Internal: Stainless Steel
Media
- Filtered Compressed Air
- Lubricated
- Non-Lubricated
Override
- Manual Override
Power Supply
- 24 Vdc
Pressure Range
- psi: 29 to 116 (kPa: 200 to 800, bar: 2 to 8)
Resistance
- 54 to 273 ohms, Maximum
Response Time
- Closing: 16 to 27 milliseconds
- Opening: 16 to 19 milliseconds
Seat / Seal Material
- Seal: NBR
- Seal: POM
