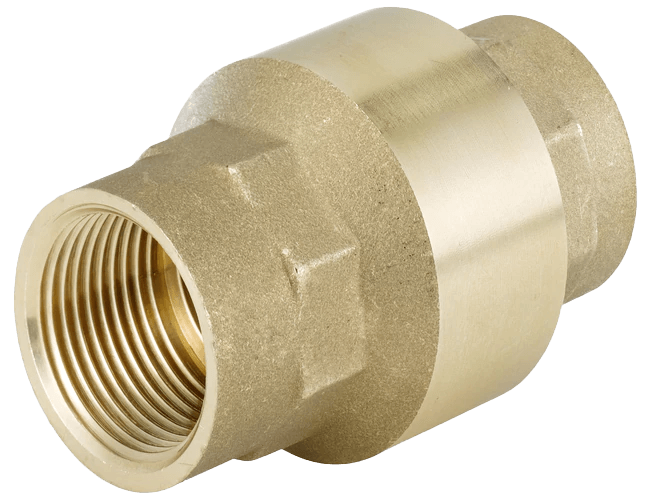

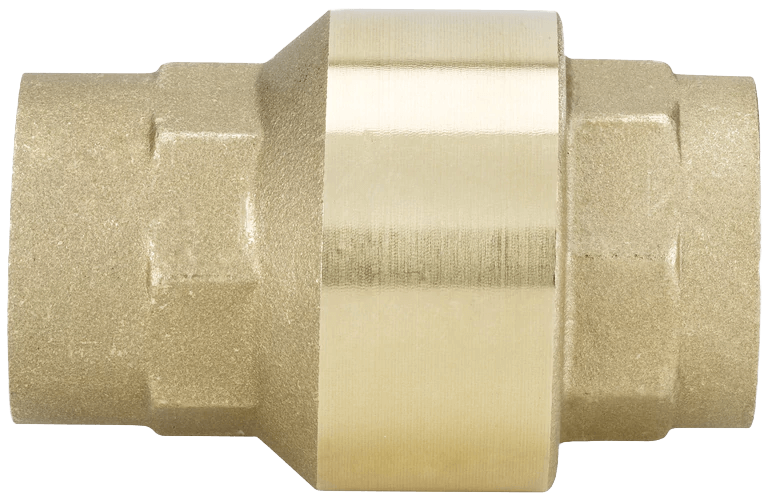

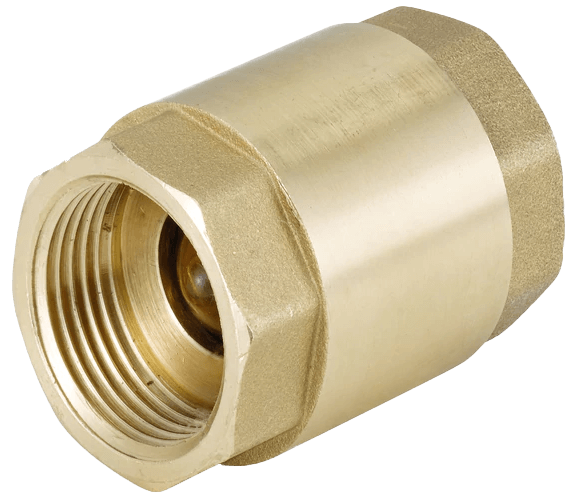

TFU002 Check Valve
Brand: Burkert Fluid Control Systems
Non-return valve for horizontal or vertical installation.
Features- Brass or Stainless steel body
- Internal parts stainless steel
Specifications
BSP Connection
- G 1" Female
- G 1/2" Female
- G 1-1/2" Female
- G 1-1/4" Female
- G 2" Female
- G 2-1/2" Female
- G 3" Female
- G 3/4" Female
- G 3/8" Female
- G 4" Female
- 1" BSPT Female
- 1/2" BSPT Female
- 1/4" BSPT Female
- 1-1/2" BSPT Female
- 1-1/4" BSPT Female
- 2" BSPT Female
- 3/4" BSPT Female
- 3/8" BSPT Female
Cone Material
- Valve: Polyamide (PA) - Light, Heavy Design
Enclosure, Body Material
- AISI 316 Stainless Steel, 1.4408 - Angle Seat
- Pressed Brass (CW 617N) - Light, Heavy Design
Internal Part Material
- Stainless Steel
Mounting
- Horizontal or Vertical
Nominal Pressure
- psi: 145 to 580.2 (kPa: 1,000 to 4,000, bar: 10 to 40) - Light Design
- psi: 232.1 to 580.2 (kPa: 1,600 to 4,000, bar: 16 to 40) - Heavy Design
- psi: 580.2 (kPa: 4,000, bar: 40) - Angle Seat
Operating Pressure
- psi: 0.29 to 11.6 (kPa: 2 to 80, bar: 0.02 to 0.8)
Orifice Size
- 0.31" to 1.96" (8 to 50 mm) - Angle Seat
- 0.39" to 3.93" (10 to 100 mm) - Light Design
- 0.393" to 1.574" (10 to 40 mm) - Heavy Design
Process Temperature
- 100° C (212° F), Maximum
- -20° to 100° C (-4° to 212° F), Maximum
- -20° to 200° C (-4° to 392° F) - Angle Seat
Seat / Seal Material
- Seal: NBR - Light, Heavy Design
- Seal: PTFE - Angle Seat
Spring Material
- Stainless Steel - Light, Heavy Design
