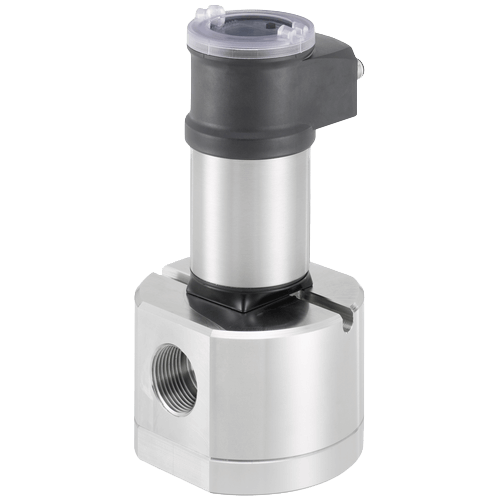

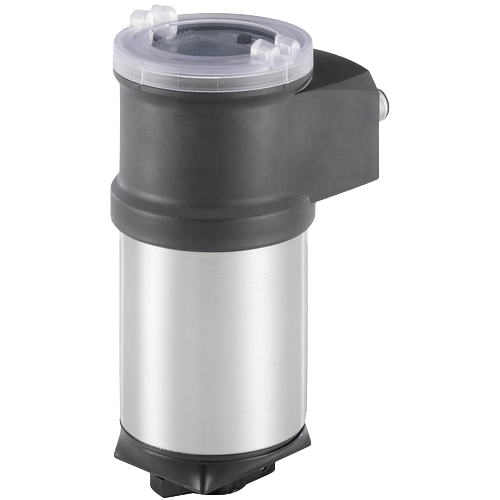

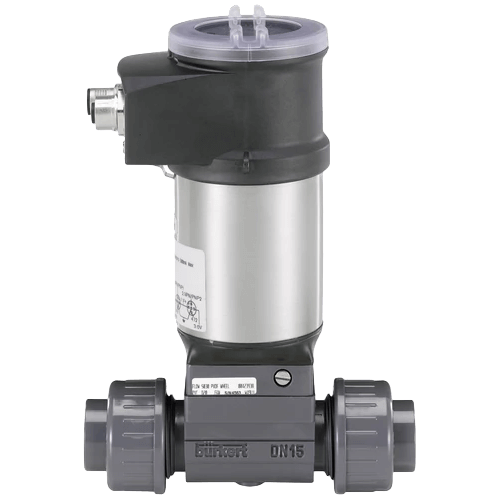

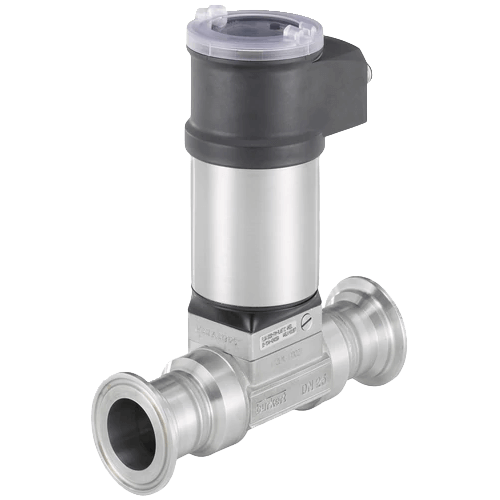

8036/SE36 Inline Flowmeter with Paddle Wheel
Brand: Burkert Fluid Control Systems
The Burkert flowmeter Type 8036 is a compact device, specially designed for measuring the flow rate in solid-free liquids, in a variety of applications (water, waste water monitoring, chemical processing etc.).
Type 8036 converts the measured signal, displays different values in different units (if display/configuration module mounted) and computes the output signals, which are provided via one or two M12 fixed connectors. Thanks to 1 or 2 transistor outputs, the flowmeter can be used to switch a solenoid valve, activate an alarm and, thanks to 1 or 2 current outputs, establish one or two control loops.
Type 8036 is available with:
- 2 configurable outputs: One transistor output (NPN) and one 4-20 mA current output (2-wire)
- 3 configurable outputs: Two transistor outputs (NPN/PNP) and one 4-20 mA current output (2-wire)
- 4 configurable outputs: Two transistor outputs (NPN/PNP) and two 4-20 mA current outputs (3-wire).
- Size of measurement pipes: DN06 to DN65
- Configurable outputs: One or two transistor output(s) and single or dual 4-20 mA Analog output(s)
- Removable backlit display/configuration module for indication of flow rate and volume with two flow totalizers
- Automatic calibration using Teach-In, all outputs can be checked without the need of actual flow
Specifications
Accuracy
- 4-20 mA Output Uncertainty: ± 1%
Ambient Temperature Range
- Operating & Storage: -10° to 60° C (14° to 140° F)
Approvals & Certifications
- CE
- EU Directives
- PED 2014/68/EU
- UL (C,US): UL 61010-1 + CAN/CSA-C22.2 No.61010-1
Approvals & Certifications
- EN ISO 5167-1
Bearing Material
- Ceramics (Al₂O₃)
Circuit Protection
- Short Circuit: Protected for Transistor Outputs
Consumption
- Current (2 or 3 Outputs Transmitter): ≤ 25 mA at 14 Vdc without Transistors Load, with Current Loop
- Current (4 Outputs Transmitter): ≤ 5 mA at 12 Vdc without Transistors Load, without Current Loop
- Current: ≤ 1 A with Transistor Load
- Power: 40 W, Maximum
Cover Material
- Polycarbonate (PC)
Current
- 4-20 mA
Diameter
- Pipe: 1/4 to 2-1/2" (DN06 to DN65)
Electrical Connectors
- 2 or 3 & 4 Outputs Transmitter: 1 x 5-Pin M12 Male Fixed Connector
- 4 Outputs Transmitter: 1 x 5-Pin M12 Female Fixed Connector
- Shielded Cable
Electrical Protection
- Voltage Peak: Protected
Enclosure, Body Material
- 316L Stainless Steel, 1.4404
- PPS
Environmental Protection
- IP65
- IP67
Humidity
- ≤ 85% Relative Humidity, Non-Condensing
Linearity
- ± 0.5% of Full Scale
Loop Impedance
- 1 & 2 Current Outputs: 1,100 ohms at 36 Vdc, Maximum
- 1 & 2 Current Outputs: 610 ohms at 24 Vdc
- 1 Current Output: 180 ohms at 14 Vdc, Maximum
- 2 Current Outputs: 100 ohms at 12 Vdc, Maximum
Materials of Construction
- Display, Quarter-Turn System: Polycarbonate (PC)
- Fixed Connector Mounting Plate: 316L Stainless Steel, 1.4404
- Fixed Connector: Brass Nickel-Plated
- Fixed Connector: Stainless Steel
- Navigation Key: PBT
Measuring Error
- Measurement Deviation (Standard K-factor): ± 2.5% of the Measured Value
- Measurement Deviation (Teach-In): ± 1% of the Measured Value
Measuring Range
- 0.3 to 10 m/sec
Output
- 2 Transistor Outputs: 0.5 A, Maximum
- 4-20 mA, 2-Wire
- 700 mA - Maximum
- NPN: 1-36 Vdc
Output Format
- Open Collector
Pipe Connection
- DN15 Pipe
- DN20 Pipe
- DN25 Pipe
- DN32 Pipe
- DN40 Pipe
- DN50 Pipe
- DN65 Pipe
Power Supply
- 2 or 3 Outputs Transmitter (2-Wire): 14-36 Vdc, Filtered & Regulated
- 4 Outputs Transmitter (3-Wire): 12-36 Vdc, Filtered & Regulated
Pressure Range
- bar: 0 to 16
- kPa: 0 to 1,600
- psi: 0 to 232
Process Temperature
- PP: 0° to 80° C (32° to 176° F)
- PVC: 0° to 50° C (32° to 122° F)
- PVDF, Brass or Stainless Steel: -15° to 100° C (5° to 212° F)
Repeatability
- ± 0.4% of the Measured Value
Reverse Polarity Protection
- Yes
Screw Material
- Stainless Steel
Seat / Seal Material
- Seal: EPDM
- Seal: FKM
- Seal: Silicone
Switch Type
- 1 Transistor Output (NPN), 2 Transistor Output (NPN & PNP): Transistor
Tri-Clamp Connection
- DN15 Tri-Clamp®
- DN20 Tri-Clamp®
- DN25 Tri-Clamp®
- DN32 Tri-Clamp®
- DN40 Tri-Clamp®
- DN50 Tri-Clamp®
- DN65 Tri-Clamp®
Viscosity
- 300 cSt, Maximum
Welded Connection
- DN 15 Weld End
- DN 20 Weld End
- DN 25 Weld End
- DN 32 Weld End
- DN 40 Weld End
- DN 50 Weld End
- DN 65 Weld End
Wetted Materials
- Axis: Ceramics (Al₂O₃)
- Sensor-fitting, Sensor Armature, Paddle Wheel: PVDF
- Sensor-fitting, Sensor Armature: 316L Stainless Steel, 1.4404
- Sensor-fitting, Sensor Armature: Brass
- Sensor-fitting, Sensor Armature: Polypropylene (PP)
- Sensor-fitting, Sensor Armature: PVC
