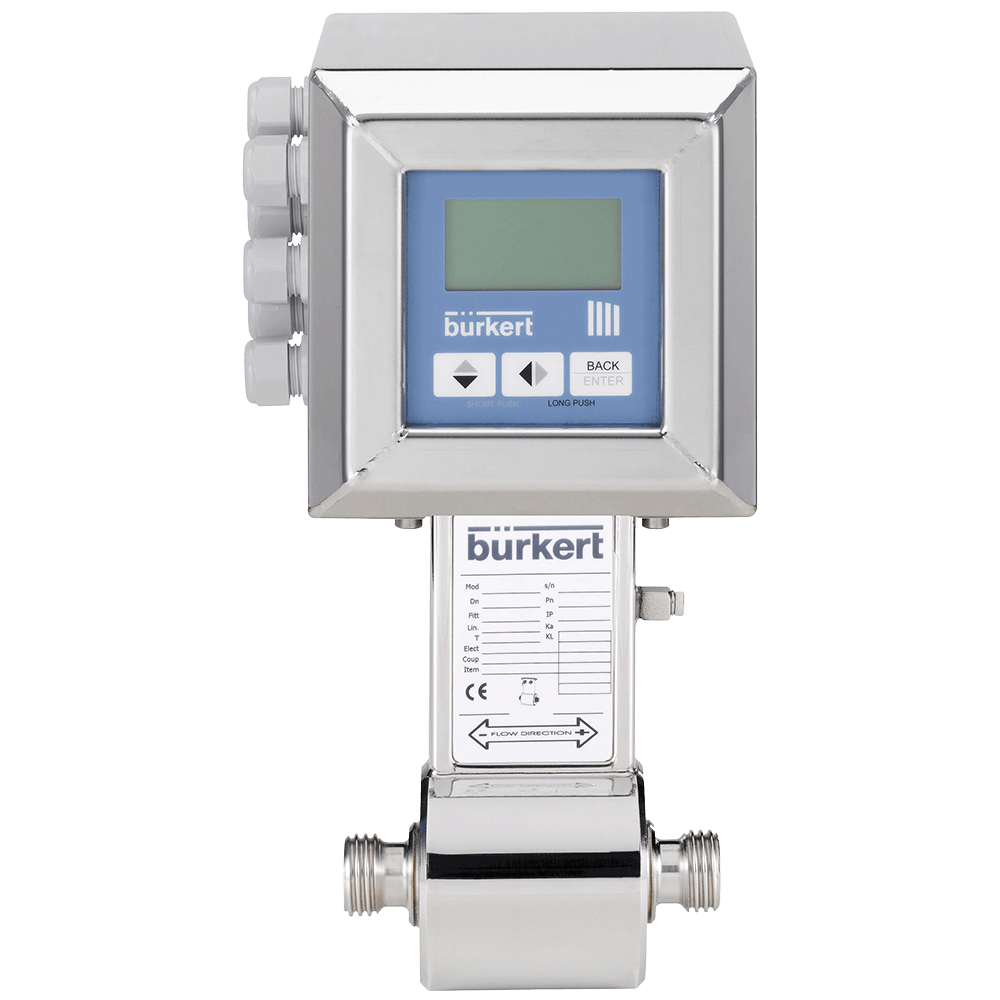

8051 Full Bore Magmeter for Low Flow Volume
Brand: Burkert Fluid Control Systems

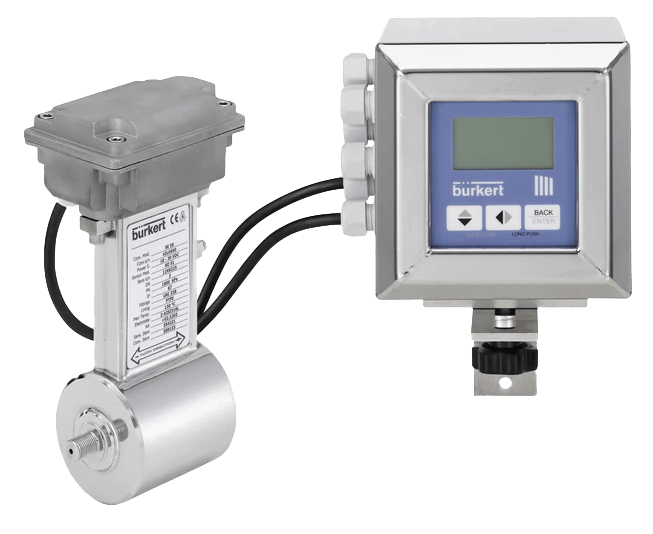

The complete full bore magflowmeter Type 8051, which consists of a magnetic sensor fitting Type S051 connected to an electronics Type SE56 (blind in compact version or with display in compact or remote version) is designed for applications with liquids with a minimum conductivity of 5 µS/cm. Combined with a valve as the actuating element, the complete full bore magflowmeter Type 8051 can control high-precision dosing and filling operations.
Features- Combination of magflowsensor fitting S051 and electronics SE56
- Continuous measurement or Batch Control
- Clean in place (CIP)
- Low-flow measurements on from 3 l/h
Specifications
Approvals & Certifications
- CE
BSP Connection
- G 1" Male
- G 1/2" Male
- G 1/4" Male
- G 3/4" Male
- G 3/8" Male
Cable Length
- Remote Version (S055), Electrode Cable, Coil Cable: 10 meters
Communication
- Profibus DP
Conductivity
- 20 µS/cm Minimum with Demineralized Water
- 5 µS/cm Minimum
Connection Material
- 316L Stainless Steel
Electrical Connectors
- 2 Cable Glands PG9
- Junction Box
Enclosure, Body Material
- 304 Stainless Steel 1.4301
Environmental Protection
- IP65
- IP67
- IP68
Flange Size - 1/2" (DN15)
- 1/2" (DN15) - PN 16 (DIN 2501, ANSI)
- 1/2" (DN15) - PN 40 (DIN 2501, ANSI)
Flange Size - 1/8" (DN6)
- 1/8" (DN6) - PN 16 (DIN 2501, ANSI)
- 1/8" (DN6) - PN 40 (DIN 2501, ANSI)
Flange Size - 3/4" (DN20)
- 3/4" (DN20) - PN 16 (DIN 2501, ANSI)
- 3/4" (DN20) - PN 40 (DIN 2501, ANSI)
Flange Size - 3/8" (DN10)
- 3/8" (DN10) - PN 16 (DIN 2501, ANSI)
- 3/8" (DN10) - PN 40 (DIN 2501, ANSI)
Flow Rate
- 20,000 gpm (100,000 L/minute, 5,000 m³/hour)
- Maximum
- Minimum 0 to 0.4 milliseconds: 0 to 500 L/hour
Measuring Range
- 0 to 12,500 L/hour
NPT Connection
- 1" NPT Male
- 1/2" NPT Male
- 1/4" NPT Male
- 3/4" NPT Male
- 3/8" NPT Male
Pipe Connection
- DN10 Pipe
- DN15 Pipe
- DN20 Pipe
- DN3 Pipe
- DN6 Pipe
Pressure Range
- bar: 0 to 40
- kPa: 0 to 4,000
- psi: 0 to 580
Process Temperature
- -20° to 130° C (-4° to 266° F)
Seat / Seal Material
- Seal: EPDM
- Seal: FFKM
- Seal: FKM
Tri-Clamp Connection
- DN10 Sanitary Clamp
- DN15 Sanitary Clamp
- DN20 Sanitary Clamp
- DN3 Sanitary Clamp
- DN6 Sanitary Clamp
Wetted Materials
- Electrode: Hastelloy® C
- Electrode: Platinum Rhodium
- Electrode: Tantalum
- Electrode: Titanium
- Full Lining: 304 Stainless Steel 1.4301
- Full Lining: 316L Stainless Steel, 1.4404
- Lining: PTFE
