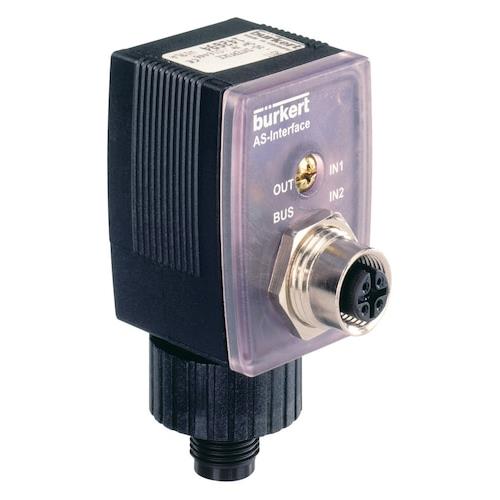

Type 2511 Cable Plug
Brand: Burkert Fluid Control SystemsThe ASI cable plug consist of a polyamide body with an integrated slave electronics and a connector configuration according to DIN EN175301-803 Form A. These plugs connect binary elements with the corresponding tag connectors, e.g., valves, to the AS-interface. In addition, feedback signals can be received by the variants with the M12 socket in the cover.
With the M12 connectors, the installation times are quick and the electrical connection is simple. The advantages with ASI cable plug: Robust and quick installation according to the AS-interface specification. LED status displays facilitate commissioning and fault finding. Bus supply: Transmission of signals and supply voltage on a common line. External supply: transmission of signals and supply voltage on separate lines (such as Emergency Stop or elements with high current consumption).
Features- Protection class IP 65
- With integrated AS-Interface connection
- Simple commissioning and error identification with LED status display
