TOM WHEATLEY Piston Check Valve

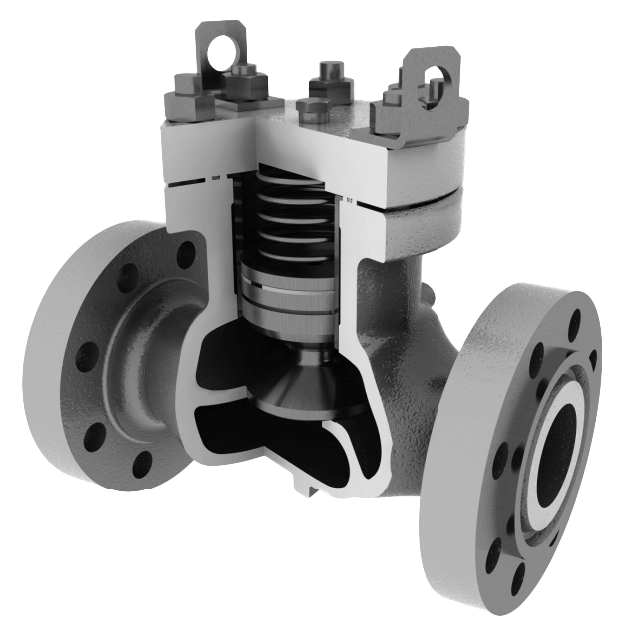

Brand: CameronDue to a unique non-slam design, the cameron TOM WHEATLEY piston check valve has provided years of uninterrupted service downstream from reciprocating pumps and compressors, and in other applications where conventional check valve designs would be subjected to excessive wear. The valve’s top-entry design allows for easy access and replacement of all valve internal parts with reduced downtime.
Features- Size range: 2" through 12" (50 mm through 300 mm)
- ASME classes:150 to 1500
- Full open/top mounted
- Controlled clapper movement
- Horizontal or vertical service
- Metal-to-metal deats
- Quick opening of piston
- RF or RTJ end connections
Specifications
Brand
Approvals & Certifications
- ISO 14313, 15156
Cover Material
- Carbon Steel (ASTM A515 Grade 70, A516 Grade 70)
- Stainless Steel (A240-316)
Enclosure, Body Material
- Carbon Steel (A352-LCC)
- Stainless Steel (A351-CF8M)
- WCC Steel (ASTM A216 Grade WCC)
Flange Size - 10" (DN250)
- 10" (DN250) - 150# (ASME)
- 10" (DN250) - 1500# (ASME)
- 10" (DN250) - 300# (ASME)
- 10" (DN250) - 600# (ASME)
- 10" (DN250) - 900# (ASME)
Flange Size - 12" (DN300)
- 12" (DN300) - 150# (ASME)
- 12" (DN300) - 1500# (ASME)
- 12" (DN300) - 300# (ASME)
- 12" (DN300) - 600# (ASME)
- 12" (DN300) - 900# (ASME)
Flange Size - 2" (DN50)
- 2" (DN50) - 150# (ASME)
- 2" (DN50) - 1500# (ASME)
- 2" (DN50) - 300# (ASME)
- 2" (DN50) - 600# (ASME)
- 2" (DN50) - 900# (ASME)
Flange Size - 3" (DN80)
- 3" (DN80) - 150# (ASME)
- 3" (DN80) - 1500# (ASME)
- 3" (DN80) - 300# (ASME)
- 3" (DN80) - 600# (ASME)
- 3" (DN80) - 900# (ASME)
Flange Size - 4" (DN100)
- 4" (DN100) - 150# (ASME)
- 4" (DN100) - 1500# (ASME)
- 4" (DN100) - 300# (ASME)
- 4" (DN100) - 600# (ASME)
- 4" (DN100) - 900# (ASME)
Flange Size - 6" (DN150)
- 6" (DN150) - 150# (ASME)
- 6" (DN150) - 1500# (ASME)
- 6" (DN150) - 300# (ASME)
- 6" (DN150) - 600# (ASME)
- 6" (DN150) - 900# (ASME)
Flange Size - 8" (DN200)
- 8" (DN200) - 150# (ASME)
- 8" (DN200) - 1500# (ASME)
- 8" (DN200) - 300# (ASME)
- 8" (DN200) - 600# (ASME)
- 8" (DN200) - 900# (ASME)
Flange Type
- Raised Face (RF)
- RTJ - Ring Typical Joint
Flow Capacity
- 46 to 1,908 Cv
Materials of Construction
- Carbon Steel (ASTM A29-1018 with ENP) - Liner
NACE & NIST
- NACE MR-0175
Nut & Bolt Material
- Bolt: Alloy Steel (A320 Grade L7M)
- Bolt: Carbon Steel (ASTM A194 Grade 2H)
- Bolt: Chromium Molybdenum Steel (ASTM A193 Grade B7)
- Bolt: Stainless Steel (A194 Grade 8M)
Piston Material
- 410 Stainless Steel
Piston Seal Material
- AFLAS®
- Buna-N
- Fiber Gasket
- FKM (Viton)
- HSN
- Metal to Metal
- Teflon
Ring Material
- Cast Iron - Piston Rings
Seat / Seal Material
- Cover Seal: AFLAS®
- Cover Seal: Buna-N
- Cover Seal: Fiber Gasket
- Cover Seal: FKM (Viton)
- Cover Seal: HSN
- Cover Seal: Metal to Metal
- Cover Seal: Teflon
- Seat Integral: Stainless Steel (A351-CF8M)
- Seat Integral: WCC Steel (A216-WCC)
- Seat Renewable, Seat Integral (A352-LCC): Carbon Steel
- Seat Renewable: 316 Stainless Steel
- Seat Renewable: 410 Stainless Steel
Spring Material
- Alloy X-750 (Inconel®) - Piston Spring
Valve Size
- 2" to 12" (51 to 305 mm)
