Emerson Appleton Key Release Mushroom Push Button, Unicode 2 Series
Images are representations only.

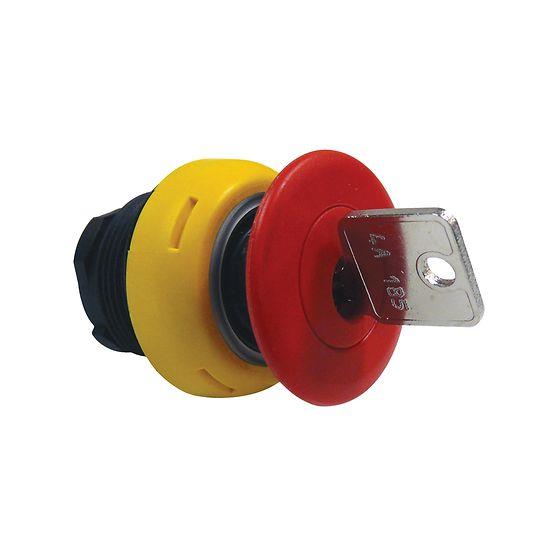

Appleton™ Unicode™ 2 Series Key Release Mushroom Push Buttons

Brand: Appleton
Request Information
Favorite

Appleton™ key release push buttons for Increased Safety Unicode™ 2 Series enclosures are available for use in conjunction with contactors or magnetic starters for remote control of motors. They provide circuit control and/or selection.
Features
  • Can be equipped with up to three Unicode 2 Series Contact Blocks (UCB) Series contact blocks.

  • Globally certified.

  • Available in TS35 rail mounted or panel mounted.

    • Specifications

    Brand

    Approvals & Certifications

    • Zone 1 & 2 - 21 & 22, Ex II 2 GD, IP66, IK10

    ATEX Surface Temperature

    • -20° to +70° C (-4° to +158° F)

    NEC/CEC Ambient Temperature

    • -55° to +70° C (-67° to +158° F)

    NEC/CEC Certifications & Compliances

    • Class I, Division 2 Groups A, B, C, D, Class I, Zone 1, Ex E D IIC Gb, Class I, Zone 1, AEx E D IIC Gb, Class II, Division 1, Groups E, F, G, Class II, Zone 21, Ex Tb IIIC Db, Class II, Zone 21, AEx T IIIC Db, Class III, Division 1, IP66

    Standard Materials

    • Thermosetting Plastic Body with Ethylene Propylene Diene Monomer (M-class) Rubber (EPDM) Seal
