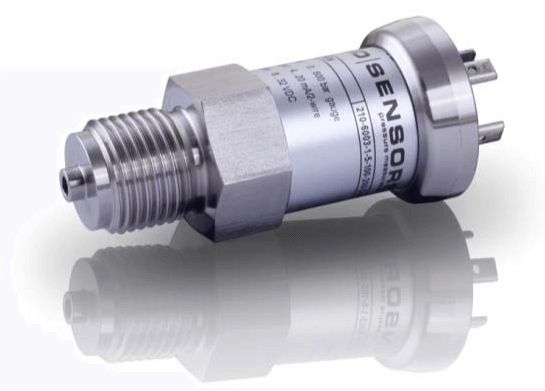

DMP 335 Pressure Transmitter

Brand: BD Sensors
Request Information
Favorite

The industrial pressure transmitter DMP 335 is based on a stainless steel welded pressure sensor without fluid. This characteristic has a special advantage with applications where silicone oil or elastomeric seals cannot be used.

Specifications

Brand

Approvals & Certifications

  • CE-Conformity
  • EMC: Emission & Immunity According to EN 61326, 2014/30/EU
  • IBExU 10-ATEX-1068 x for DMP 335, 2014/34/EU
  • IECEx IBE 12.0027X for DMP 335
  • PED: 2014/68/EU (Module A)
  • REACH
  • RoHS
  • TÜV NORD
  • UL (C,US)

BSP Connection

  • G 1/2" Male (EN 837)
  • G 1/4" Male (EN 837)

Diaphragm Material

  • 630 Stainless Steel (17-4 PH)

Enclosure, Body Material

  • 316L Stainless Steel, 1.4401
  • Cable Gland Brass
  • Nickel-Plated Steel

Environmental Protection

  • IP65
  • IP67
  • IP68

NPT Connection

  • 1/4" NPT Male

Output

  • 0-10 V, 3-Wire
  • 4-20 mA, 2-Wire

Pressure Range

  • bar: 6 to 600
  • kPa: 600 to 60,000
  • psi: 87.02 to 8,702

Pressure Type

  • Gauge
