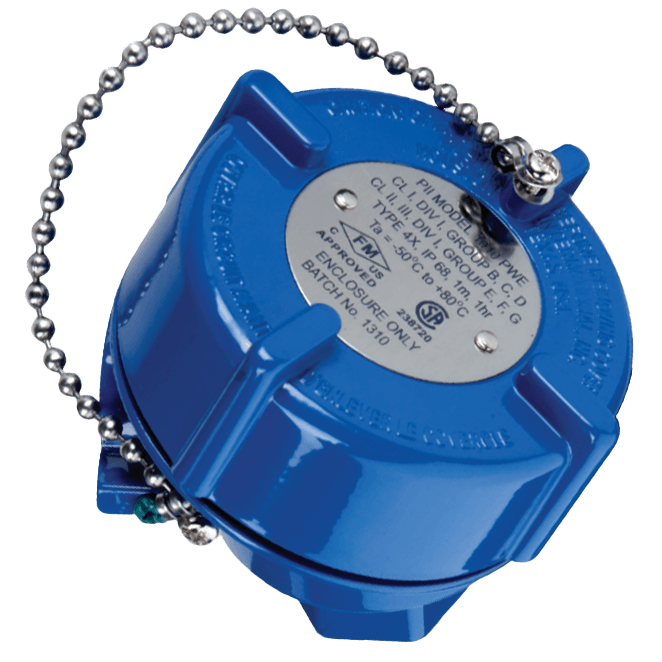

Style 78 Terminal Style RTD Temperature Sensor
Brand: United Electric Controls Ltd.Designed for use in any pipe or surface temperature measuring application.
Features- Heat transfer pad with excellent temperature response
- Rugged stainless steel sheaths for excellent mechanical protection
- Replaceable element design for simplified RTD replacement — to replace a faulty element, you simply remove the head cover, disconnect the leads and remove the flexible element. You then insert the new element and reconnect the leads. Your process is up and running in minutes
- Options include dual RTD sensors, thermocouple sensors and a variety of weld pad and head styles
Specifications
Accuracy
- ± 0.01%
- ± 0.06%
- ± 0.12%
Approvals & Certifications
- CSA Class I, Division 1, Groups B, C, D, Class II, Groups E, F, G
- FM Class I, Division 1, Groups B, C, D, Class II, Groups E, F, G
Approvals & Certifications
- Certificate of Conformance
Communication
- HART
Conduit Connection
- 1/2" NPT
- 3/4" NPT
Diameter
- Sheath: 0.125" to 0.375" (3.17 to 9.52 mm)
Electrical Connectors
- Terminal Block
Environmental Protection
- Connection Head: Explosion-proof
- IP66
- NEMA 4
Input
- 4-20 mA, 2-Wire Transmitter
Length
- Sheath Length: 36" (914.4 mm), Maximum
Materials of Construction
- Sheath: 316 Stainless Steel
- Terminal Head: Cast or Epoxy Coated Aluminum
- Terminal Head: Stainless Steel
- Union Connector: Plated Steel
NACE & NIST
- NIST Traceable Calibration
Name Plate, Tag Material
- Stainless Steel
NPT Connection
- 1/2" NPT Male
- 1/4" NPT Male
- 3/4" NPT Male
Operating Temperature - Sensor
- -200° to 788° C (-328° to 1,450° F)
Output
- 4-20 mA, 2-Wire Transmitter, Isolated or Non-Isolated Output
Process Connection Material
- Welded Stainless Steel
RTD Type
- Pt100
Sensor, Probe Connection
- 2-Wire
- 3-Wire
- 4-Wire
Sensor, Probe Material
- Platinum
Sensor, Probe Type
- RTD
