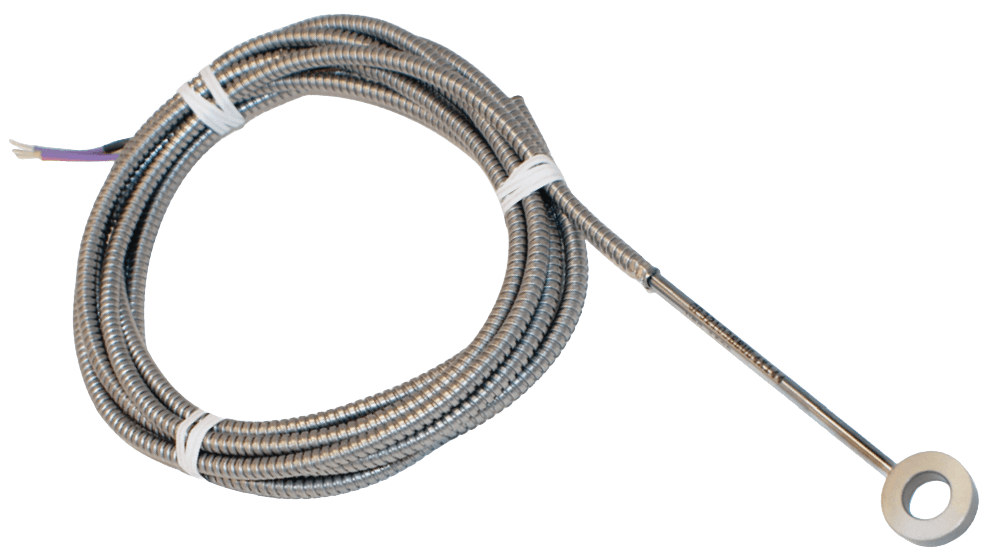

Style 32 Sheath Style RTD Temperature Sensor
Brand: United Electric Controls Ltd.Designed for use in any pipe or surface temperature measuring application.
Features- NEMA 4 or explosion-proof heads
- Heat transfer pad with excellent temperature response
- Rugged stainless steel sheaths for excellent mechanical protection
- Replaceable element design for simplified RTD replacement — to replace a faulty element, you simply remove the head cover, disconnect the leads and remove the flexible element. You then insert the new element and reconnect the leads. Your process is up and running in minutes.
- Options include dual RTD sensors, thermocouple sensors and a variety of weld pad and head styles
Specifications
Accuracy
- ± 0.01%
- ± 0.06%
- ± 0.12%
Approvals & Certifications
- Certificate of Conformance
Cable Type
- Armored
Connectors
- 1/2" BX Connector
- 3/4" BX Connector
Diameter
- Sheath: 0.188" (4.78 mm)
Electrical Connectors
- #6 & #10 Spade Terminal, Copper-Plated
- #8 & #10 Ring Terminal
- 1/4" Push-On Insulated Terminal, Copper-Plated
- Standard Jack, Rated to 177° C (350° F)
- Standard Plug, Rated to 177° C (350° F)
Element
- Dual Elements
- Single Element
Length
- Sheath Length: 36" (914.4 mm), Maximum
Materials of Construction
- Insulated Conductor: Teflon
- Washer: Stainless Steel
NACE & NIST
- NIST Traceable Calibration
Name Plate, Tag Material
- Stainless Steel
Operating Temperature - Sensor
- -45° to 482° C (-50° to 900° F)
RTD Type
- Pt100
Sensor, Probe Connection
- 2-Wire
- 3-Wire
- 4-Wire
Sensor, Probe Material
- Platinum
Sensor, Probe Type
- RTD
Size
- Washer Size: 0.188" to 0.5" (4.78 to 12.7 mm)
