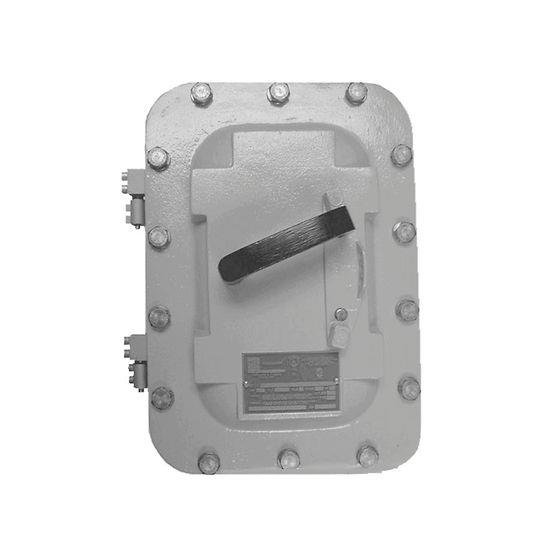

Emerson Appleton Disconnect Switch, AE Series
Images are representations only.

Appleton™ AE Series Disconnect Switches

Brand: Appleton

Appleton™ explosionproof, dust-ignitionproof AE Series fused and non-fused disconnect switches provide explosionproof protection in areas where hazardous materials are handled or stored. These units are used for overload and short circuit protection, control of lighting and power circuits.
Features
  • Explosionproof, dust- ignitionproof.

  • Precision machined flame path between box and cover. O-ring gasket ensures watertight integrity.

  • Bolt on stainless steel slotted mounting feet.

  • Stainless steel hinges are standard.

  • Stainless steel, captive Quad-Lead™ cover bolts are standard (disengaged in 1-1/2 turns).

  • Ground lug package and installation instructions for termination of ground wire enclosed.

  • External operating handle with stops for limiting handle travel.

  • Disconnects operators can be locked in the ON or OFF position (up to 3 padlocks).

  • External flange maximizes internal space.

  • Standard outlets top and bottom for line and load wiring.

  • Plugged 1/2" outlets top and bottom for breather and drain.

  • Disconnects mounted on a galvanized steel removable pan.

    • Specifications

    Brand

    NEC Certifications & Compliances

    • Class I, Division 1 & 2, Groups B, C, D, Class II, Division 1 & 2, Groups E, F, G, Class III, NEMA 4, 4X

    Options

    • 1NO, 1NC or 2NO, 2NC Auxiliary Switch, Breather, Drain, External Grounding Stud, & Plastic Nameplate are available. See Catalog Pages for Details

    Standard Finishes

    • Enclosure & Cover have Gray Epoxy Powder Coat Inside & Outside Standard to Provide NEMA 4X Rating

    Standard Materials

    • Copperfree (4/10 of 1% Max.) Aluminum Bodies & Covers, Stainless Steel Disconnects, Operator Shafts, Cover Bolts & Hinges, Neoprene O-Ring
