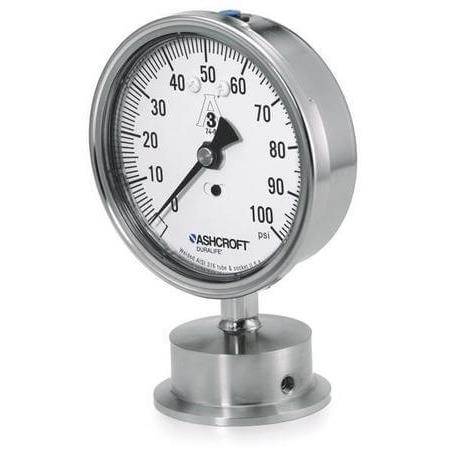

1032 Sanitary Pressure Gauge
Brand: Ashcroft Inc.Ashcroft Type 1032 sanitary pressure gauges have specifically been designed to meet the need for sanitary-type pressure gauges in the pharmaceutical, bio-tech, filtration and food and dairy markets. With a quick-connect clamp and diaphragm surface finish that is electropolished to 12-20RA these instruments are also suitable for use in breweries, wineries and citrus juice production plants.
Available in dial sizes from 2-1/2" thru 4-1/2" and Tri-Clamp type connections of 1" thru 2-1/2". To meet the needs of the markets served, 3-1/2" 1032 sanitary gauges, with optional polysulfone window, can be autoclaved or sterilized to temperatures of 300° F (149° C) and can be cleaned or steamed in place. Ashcroft Type 1032 sanitary gauges with dial sizes of 2-1/2" and 3-1/2" are furnished standard with the patented PowerFlex movement.
Features- PLUS! Performance is available on 2-1/2", 3-1/2", 4-1/2" gauges provides liquid filled performance in a dry case gauge
- Welded 316L Stainless Steel diaphragm and seal housing
- USP grade glycerin (99.5% pure, system fill) standard
- Complies with 3A standard 74 for sensors and sensor fittings
- Electropolished diaphragm & housing
- Dry and liquid filled gauge versions
- Weatherproof and hermetically sealed versions
- External Easy Zero adjust standard on dry, liquid filled and PLUS (3-1/2" dial only)
Specifications
Brand
Accuracy
- 1.5% of Full Scale for Pressure Ranges 100 psi & above
- 2% of Full Scale for Vacuum Compound & Ranges Below 100 psi
Ambient Temperature Range
- Autoclave or Sterilize: 149° C (300° F) when Supplied with Polysulfone Window (3-1/2" Dry Gauge Only)
Applications
- Biotechnology
- Filtration Systems
- Food & Dairy
- Medical Equipment
- OEM Equipment
- Pharmaceutical
Approvals & Certifications
- CRN
- RoHS
- 3A Sanitary Standard 74
- Calibration
- Material Certificate of Conformance Supplied as EN 10204:2004 3.1
Diaphragm Material
- 316L Stainless Steel, 12 to 20 RA Electro-Polished
Enclosure Finish
- Diaphragm Surface Finish: 12 to 20 RA Electro-Polished
Enclosure, Body Material
- 300 Stainless Steel Electro-Polished
Environmental Protection
- Weatherproof
Fill Material
- Halocarbon
- Silicone
- System Fill: USP Food Grade Glycerin
Lens
- Window 2-1/2" & 3-1/2": Polycarbonate
- Window 4-1/2": Glass Lens
- Window: Polysulfone
- Window: Safety Glass
Materials of Construction
- 2-1/2", 4-1/2" Adjustable, 3-1/2" External Adjust Pointer: Black-Painted Aluminum
- Bourdon Tube & Socket: 316L Stainless Steel
- Bourdon Tube: 316 Stainless Steel
Movement
- 2-1/2" & 3-1/2": 300 Stainless Steel
- 4-1/2": 400 Stainless Steel
Name Plate, Tag Material
- Paper
- Stainless Steel
Pressure Range
- bar: 1 to 69
- Inches Hg: -30 to 0
- kPa: 103.4 to 6,895
- psi: 15 to 1,000
Pressure Type
- Compound Pressure
- Gauge
- Vacuum
Process Temperature
- Clean or Steam in Place: 138° C (280° F)
Ring Material
- 300 Stainless Steel Electro-Polished (Bayonet, Removable)
Size
- Dial: 2.5" (63 mm)
- Dial: 3.5" (89 mm)
- Dial: 4.5"
Tri-Clamp Connection
- 2-1/2", 3-1/2" Dial: 1-1/2" Tri-Clamp®
- 2-1/2", 3-1/2", 4-1/2" Dial: 2" Tri-Clamp®
