BD Sensors Pressure Transmitter, XMP ci
Images are representations only.

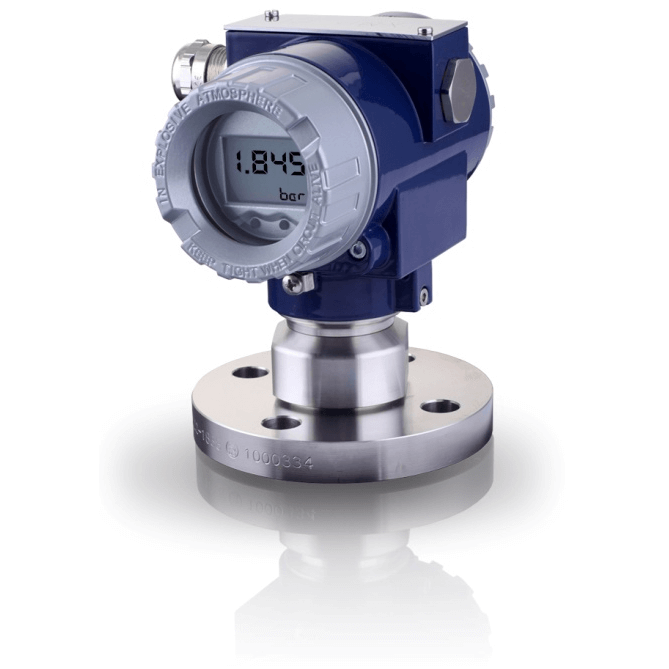

XMP ci Pressure Transmitter

Brand: BD Sensors

The process pressure transmitter XMP ci measures the pressure of gases, steam and fluids. The special-developed capacitive ceramic sensor for this transmitter has a high overpressure capability and excellent media stability. Several process connections e.g. thread or flange are available. The transmitter is as a standard equipped with HART communication, the customer can choose between a two chamber aluminum die cast case or a stainless field housing.

Specifications

Brand

Approvals & Certifications

  • CE-Conformity
  • EMC: Emission & Immunity According to EN 61326, 2004/108/EC
  • IBExU 05-ATEX-1106 x for AX12-XMP Ci, IBExU 12-ATEX-1045 x for AX17-XMP Ci
  • IEC 60770
  • REACH
  • RoHS
  • TÜV NORD

BSP Connection

  • G 1/2" Male
  • G 1-1/2" Male

Diaphragm Material

  • Ceramic

Enclosure, Body Material

  • 316L Stainless Steel
  • Aluminum
  • Powder-Coated

Environmental Protection

  • IP67

Flange Size - 1" (DN25)

  • 1" (DN25) - PN 40

Flange Size - 2" (DN50)

  • 2" (DN50) - 150# (ANSI B16.5)
  • 2" (DN50) - PN 40

Flange Size - 3" (DN80)

  • 3" (DN80) - 150# (ANSI B16.5)
  • 3" (DN80) - PN 16

NPT Connection

  • 1/2" NPT Male

Output

  • 4-20 mA, 2-Wire

Pressure Range

  • bar: 0.16 to 20
  • kPa: 16 to 2,000
  • psi: 2.32 to 290.1

Pressure Type

  • Gauge
  • Vacuum
