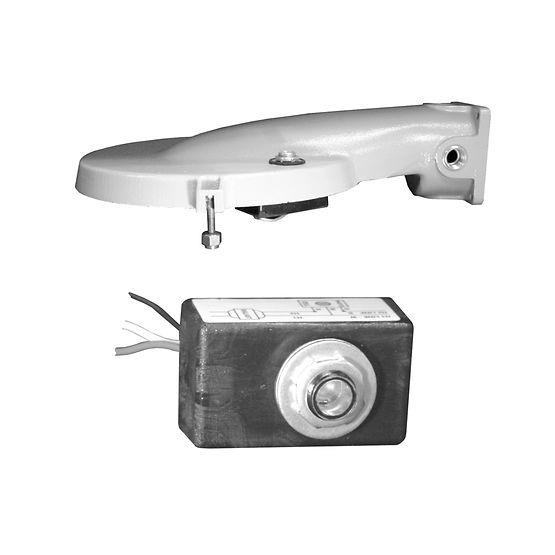

Appleton™ PCD2 Series Hazardous Location Photocontrol

Brand: Appleton

PCD2 Series Hazardous Location Photocontrol provides automatic dusk-to-dawn lighting control in Class I, Division 2 locations. This encapsulated photocontrol is ideal for remote mounting in an FS box.
Features
  • Typical applications include walkways, security areas and any other outdoor lighting application.

  • For use in Class I, Division 2, Groups A, B, C, D locations.

  • For use with Mercmaster III Low Profile, Mercmaster III 50-250, and Mercmaster III 400 Series Luminaires.

  • Factory sealed design eliminates the need for an explosionproof enclosure. Can be easily installed in the field.

  • Solid state design for performance and reliability. Available for 120, 208, 240, or 277 volts. 50-400 W HID, incandescent or fluorescent, 50/60 Hz. 1000 V.A. Voltage/Ampere.

  • Minimum time delay: 15 seconds to eliminate nuisance tripping.

  • Provided with (3) 18 AWG stranded leads 152.4 mm (6 in) in length.

  • Will fit through standard 1/2" knockout.

  • Supplied with locknut and gasket.

    • Specifications

    Brand

    NEC/CEC Certifications & Compliances

    • Class I, Division 2, Groups A, B, C, D, NEMA 4X

    Standard Materials

    • Encapsulated with Epoxy Sealing Compound
