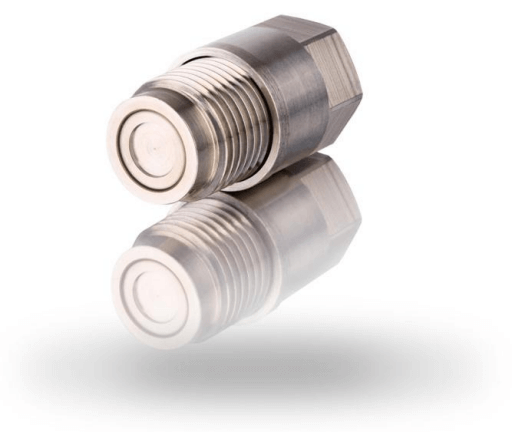

BD Sensors Piezoelectric Pressure Sensor, DAC 109
Images are representations only.

DAC 109 Piezoelectric Pressure Sensor

Brand: BD Sensors

The DAC 109 is an extremely durable sensor for continuous pressure monitoring in difficult environments. Installation with M14 thread, various sealing options and an internal leader element allow long-term, continuous operation. The Double Shell design offers high mechanical separation from the influences of the mounting hole.
Features
  • Robust design for long-term operation
  • Internal leader element
  • High linearity across the whole pressure and temperature range
  • High temperature resistance 350° C (662° F)
  • Constant sensitivity across the entire service life

Specifications

Brand

Approvals & Certifications

  • TÜV NORD

Metric Connection

  • Thread Diameter: M14 x 1.25

Pressure Range

  • bar: 0 to 250
  • kPa: 0 to 24,994
  • psi: 0 to 3,625
