BD Sensors Pressure Transmitter, 18.601 G
Images are representations only.

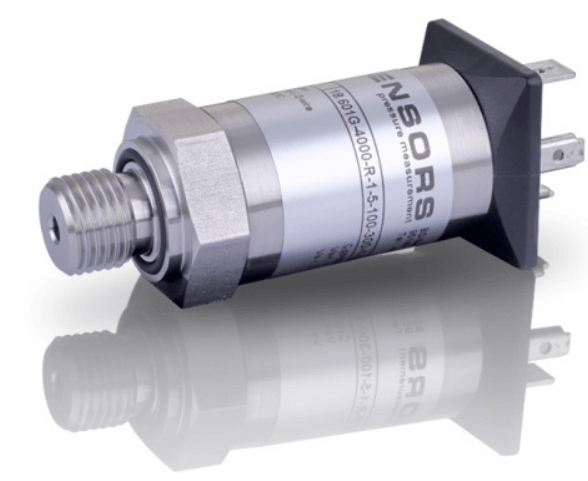

18.601 G Pressure Transmitter

Brand: BD Sensors
Request Information
Favorite

Low Pressure OEM Pressure Transmitter Features:
  • Piezoresistive stainless steel sensor
  • Accuracy 0.5% of FSO according to IEC 60770
  • Nominal pressure from psi: 0 to 87 (kPa: 0 to 600, bar: 0 to 6)

    • Specifications

    Brand

    Approvals & Certifications

    • CE-Conformity
    • EMC: Emission & Immunity According to EN 61326, 2014/30/EC
    • REACH
    • RoHS
    • TÜV NORD
    • UL (C,US)

    BSP Connection

    • G 1/2" Male (EN 837)
    • G 1/4" Male (DIN 3852, EN 837)

    Diaphragm Material

    • 316L Stainless Steel, 1.4435

    Enclosure, Body Material

    • 304 Stainless Steel, 1.4301

    Environmental Protection

    • IP65
    • IP67

    NPT Connection

    • 1/4" NPT

    Output

    • 0-10 V, 3-Wire
    • 10 to 90% Ratiometric Voltage (3-Wire)
    • 4-20 mA, 2-Wire

    Pressure Range

    • bar: 0 to 6
    • kPa: 0 to 600
    • psi: 0 to 80

    Pressure Type

    • Gauge
