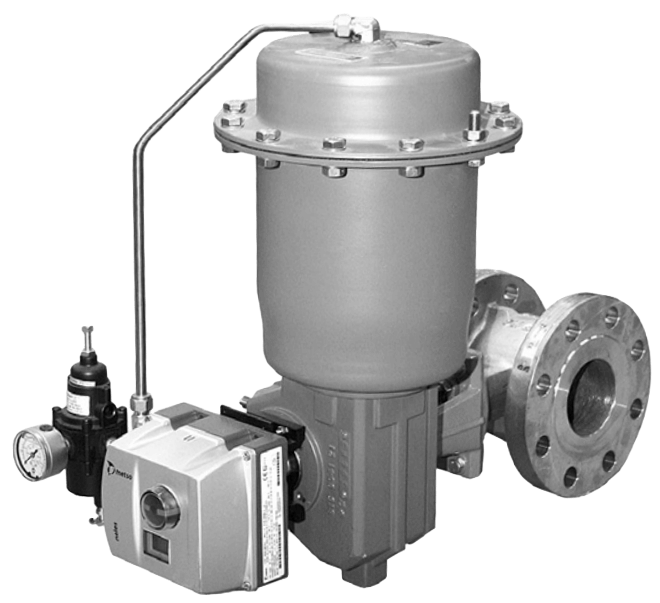

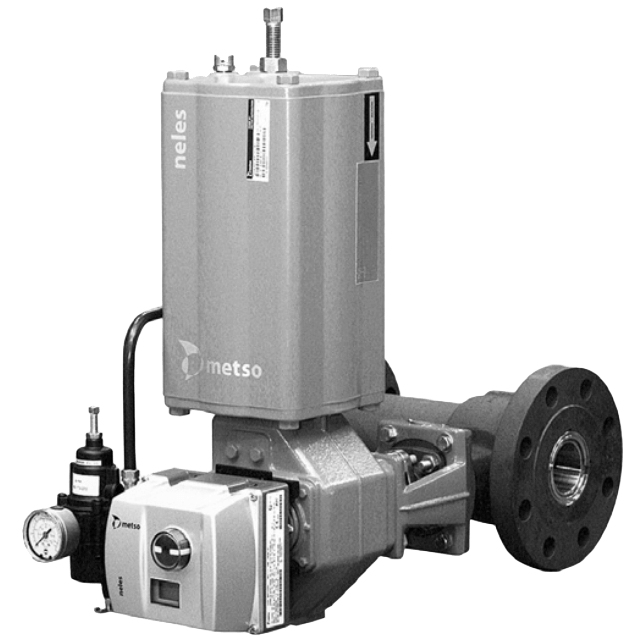

Neles Series FC Rotary Plug Control Valve
Brand: Metso
Finetrol eccentric rotary plug valves are economical high-performance control valves designed to provide the best possible control accuracy and wide rangeability with the all inherent benefits of rotary control valves.
Standard units are equipped with spring-diaphragm actuators and ND9000 intelligent valve controllers for precise flow control, extended operational life and performance monitoring on-line.
Specifications
Brand
Actuator Size
- 1" to 10" (25 to 250 mm)
Actuator Type
- Pneumatic Diaphragm Spring
Approvals & Certifications
- EN 60534-3-2
- ISA 75.08.02
Approvals & Certifications
- IEC 60534-3-2
- TÜV
Bearing Material
- Thrust Bearing: Cobalt Based Alloy
- Upper Lower Bearing: 630 Nitrated Stainless Steel (17-4 PH)
Bonnet Material
- 316 Stainless Steel - ASTM A351 CF8M, 1.4408
- Carbon Steel (WCC)
Communication
- FOUNDATION Fieldbus - Intelligent Valve Controller ND9000 Positioner
- HART - Intelligent Valve Controller ND9000 Positioner
- PROFIBUS PA - Intelligent Valve Controller ND9000 Positioner
Current
- Split Range: 12-20 mA - Intelligent Valve Controller ND9000, Electropneumatic NE 700 Positioner
- Split Range: 4-12 mA - Intelligent Valve Controller ND9000, Electropneumatic NE 700 Positioner
Enclosure, Body Material
- 316 Stainless Steel - ASTM A351 CF8M, 1.4408
- Carbon Steel (WCC, 1.0619)
Environmental Protection
- Fire-Safe Tested
Flange Size - 1-1/2" (DN40)
- 1-1/2" (DN40) - 150# (ASME)
- 1-1/2" (DN40) - 300# (ASME)
- 1-1/2" (DN40) - 600# (ASME)
- 1-1/2" (DN40) - PN 10
- 1-1/2" (DN40) - PN 100
- 1-1/2" (DN40) - PN 16
- 1-1/2" (DN40) - PN 25
- 1-1/2" (DN40) - PN 40
- 1-1/2" (DN40) - PN 63
Flange Size - 1" (DN25)
- 1" (DN25) - 150# (ASME)
- 1" (DN25) - 300# (ASME)
- 1" (DN25) - 600# (ASME)
- 1" (DN25) - PN 10
- 1" (DN25) - PN 100
- 1" (DN25) - PN 16
- 1" (DN25) - PN 25
- 1" (DN25) - PN 40
- 1" (DN25) - PN 63
Flange Size - 1/2" (DN15)
- 1/2" (DN15) - 150# (ASME)
- 1/2" (DN15) - 300# (ASME)
- 1/2" (DN15) - 600# (ASME)
- 1/2" (DN15) - PN 10
- 1/2" (DN15) - PN 100
- 1/2" (DN15) - PN 16
- 1/2" (DN15) - PN 25
- 1/2" (DN15) - PN 40
- 1/2" (DN15) - PN 63
Flange Size - 10" (DN250)
- 10" (DN250) - 150# (ASME)
- 10" (DN250) - 300# (ASME)
- 10" (DN250) - 900# (ASME)
- 10" (DN250) - PN 10
- 10" (DN250) - PN 100
- 10" (DN250) - PN 16
- 10" (DN250) - PN 25
- 10" (DN250) - PN 40
- 10" (DN250) - PN 63
Flange Size - 2" (DN50)
- 2" (DN50) - 150# (ASME)
- 2" (DN50) - 300# (ASME)
- 2" (DN50) - 600# (ASME)
- 2" (DN50) - PN 10
- 2" (DN50) - PN 100
- 2" (DN50) - PN 16
- 2" (DN50) - PN 25
- 2" (DN50) - PN 40
- 2" (DN50) - PN 63
Flange Size - 3" (DN80)
- 3" (DN80) - 150# (ASME)
- 3" (DN80) - 300# (ASME)
- 3" (DN80) - 600# (ASME)
- 3" (DN80) - PN 10
- 3" (DN80) - PN 100
- 3" (DN80) - PN 16
- 3" (DN80) - PN 25
- 3" (DN80) - PN 40
- 3" (DN80) - PN 63
Flange Size - 4" (DN100)
- 4" (DN100) - 150# (ASME)
- 4" (DN100) - 300# (ASME)
- 4" (DN100) - 600# (ASME)
- 4" (DN100) - PN 10
- 4" (DN100) - PN 100
- 4" (DN100) - PN 16
- 4" (DN100) - PN 25
- 4" (DN100) - PN 40
- 4" (DN100) - PN 63
Flange Size - 6" (DN150)
- 6" (DN150) - 150# (ASME)
- 6" (DN150) - 300# (ASME)
- 6" (DN150) - 600# (ASME)
- 6" (DN150) - PN 10
- 6" (DN150) - PN 100
- 6" (DN150) - PN 16
- 6" (DN150) - PN 25
- 6" (DN150) - PN 40
- 6" (DN150) - PN 63
Flange Size - 8" (DN200)
- 8" (DN200) - 150# (ASME)
- 8" (DN200) - 300# (ASME)
- 8" (DN200) - 600# (ASME)
- 8" (DN200) - PN 10
- 8" (DN200) - PN 100
- 8" (DN200) - PN 16
- 8" (DN200) - PN 25
- 8" (DN200) - PN 40
- 8" (DN200) - PN 63
Flange Type
- Raised Face (RF)
Flow Rate
- Q Trim with Metal Seat: Maximum
- Q Trim with Soft Seat: Maximum
- Soft Seat: Maximum
- Standard Metal Seat: Maximum
Gland Material
- 316 Stainless Steel - ASTM A351 CF8M, 1.4408
- 316L Stainless Steel, 1.4436
Input
- 4-20 mA or 0 to 100% - Intelligent Valve Controller ND9000, Electropneumatic NE 700 Positioner
Materials of Construction
- Flow Direction Arrow: Aluminum
- Insert, Key (SS 142324), Stud: Stainless Steel
- Insert: 316L Stainless Steel (1.4436)
- Stud: Carbon Steel
NACE & NIST
- Fulfils NACE MR-0103-2003 Requirements
Name Plate, Tag Material
- Stainless Steel
Nut & Bolt Material
- Hexagon Nut: Carbon Steel
- Hexagon Nut: Stainless Steel
Packing Material
- Gland Packing: Graphite
- Gland Packing: PTFE
Plug Material
- Plug with Q2 Plate: Stainless Steel & Cobalt Based Hard Facing
Pressure Range
- Split Range - psi: 3 to 9 (kPa: 20 to 62, bar: 0.2 to 0.6) - Pneumatic NP 700 Positioner
- Split Range - psi: 9 to 15 (kPa: 62 to 100, bar: 0.6 to 1) - Pneumatic NP 700 Positioner
Rotation
- 90°
Seat / Seal Material
- Back, Bonnet Seal: Graphite
- Metal, Soft Seat: Stainless Steel (XM-19)
- Soft Seat: XTREME
Spring Material
- Disc Spring Set: 329 Stainless Steel (SIS 2324)
- Disc Spring Set: Chromium Steel (CrMo Steel)
Stem Material
- 630 Nitrated Stainless Steel (17-4 PH)
Supply Pressure
- psi: 3 to 15 (kPa: 20.68 to 103.4, bar: 0.20 to 1.03) - Pneumatic NP 700 Positioner
Temperature Range
- -200° to 425° C (-328° to 797° F)
Valve Size
- 1" to 10" (25 to 250 mm)
