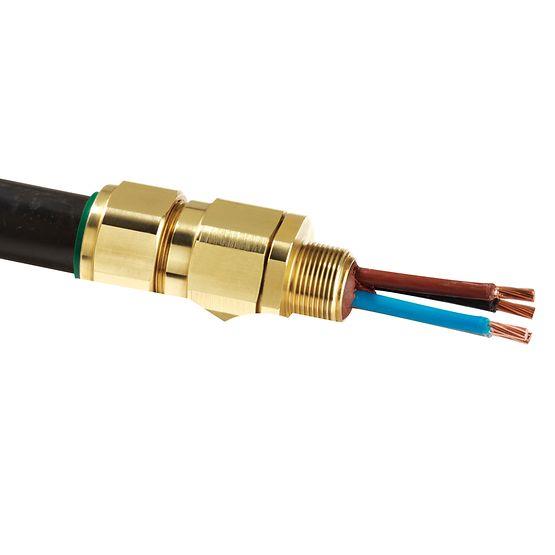

Appleton™ PX2K Series Nickel Plated Brass Cable Glands
Brand: AppletonAppleton™ PX2K Series Nickel Plated Brass Cable Glands are suitable for all types of armored cables (braid, tape, wire and lead sheath version) certified for enclosures with the following protection modes: Ex d flameproof IIB or IIC (as per §10.4.2 of IEC 60079-14), Ex e increased safety, Ex nR restricted breathing and D dust environment. They are ideal for onshore and offshore use and for other hazardous areas exposed to gases and dust.
Features- Cable gland with compound barrier seal for use in hazardous areas with all types of armored cables (braid, tape and wire)
- The cable gland provides mechanical cable retention and earth continuity via cable armor termination
- A combined detachable armor cone and compound tube, together with AnyWay universal clamping ring arrangement allows the cable to be easily disconnected from the equipment
- The cable gland is IP66/68 and complies with deluge protection tests
- The cable gland is supplied with epoxy resin and two detachable armor cones
Specifications
Brand
Approvals & Certifications
- Zone 1 & 2 - 21 & 22, Ex II 2 GD, IP66/68 (10 M)
Cable Gland Accessories
- Shroud, Locknut, Earth Tag, Entry Thread Seal, Serrated Washers, Adaptors & Reducers
Compound Material
- Epoxy Putty
Gland Material
- Nickel-Plated Brass
NEC/CEC Certifications & Compliances
- Braid-Armor Cable, Armored Jacketed Marine Shipboard Cable: Class I, Division 1 & 2, Groups A, B, C, D, Class II, Division 1 & 2, Groups E, F, G, Class III, NEMA 4X
Optional Material
- 316L Stainless Steel Version (replace Last Digit 5 with 4), Lead Sheath Version (replace PX2K with PX2KPB) or Copperfree Aluminum (replace Last Digit 5 with 1)
Seal Material
- LSF (Low Smoke Fume) ThermoPlastic Elastomer Displacement Outer Seal
