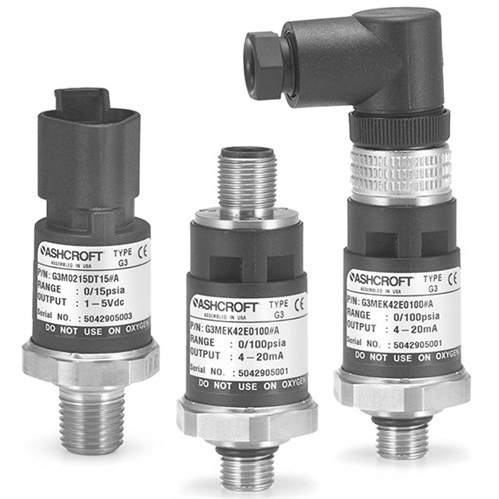

Model G3 Pressure Transducer
Brand: Ashcroft Inc.The Ashcroft G3 Pressure Transducer is a ruggedly dependable sensor for monitoring and controlling pressure.
An ideal product where vibration, shock, and high-cycling exist.
The G3 is the perfect companion to the G2 transducer for low pressure, vacuum, and absolute pressure applications.
Features- 1.5% total error band accuracy
- Broad temperature capability
- All-welded 316L stainless steel wetted parts
- High EMI/RFI rating
- Ranges vacuum through psi: 300 (kPa: 2,068, bar: 20.68)
- Up to IP67 ingress rating
- Diagnostic rails
Specifications
Brand
Accuracy
- ± 1.5% of Span: from -20° to 85° C (-4° to 185° F)
- ± 2% of Span: from -40° to -20° C (-40° to -4° F), 85° to 125° C (185° to 257° F)
Applications
- Agricultural Implements
- Compressor Control
- HVAC Systems
- Hydraulics & Pneumatics Sensing
- Performance Racing
- Process Automation & Control
- Pump Monitoring
- Railroad/Transportation
- Refrigerators
Approvals & Certifications
- CE
- EMC Directive 2004/108/EC
- IEC/EN 61326-1: Edition 1.0 Industrial, EN 61326-2-3: Edition 1.0 Annex BB Industrial
- PED
- UL
BSP Connection
- 1/4"-19 BSP Male
Compensated Temperature
- -40° to 125° C (-40° to 257° F)
Current
- Supply Current: 4 mA
- Supply Current: 5 mA
Electrical Connectors
- AMP Superseal
- Deutsch DT Series DT04 3-Pin
- Deutsch DTM Series DTM04 3-Pin
- EN 175301-803, Form C (DIN 43650, Form C)
- Flying Leads
- M12 - Mates to Hirschmann 933 172-100 or similar
- Metri-Pack
- Shielded Cable
Electrical Protection
- Reverse Polarity
Enclosure, Body Material
- 20% Glass Reinforced Nylon, Fire Retardant to UL94 V1
Environmental Protection
- Ingress Rating: IP65
- Ingress Rating: IP67
- Ingress Rating: NEMA 4X
- IP66
Excitation Voltage
- 9-36 Vdc
Humidity
- 0 to 100% Relative Humidity, No Effect
Insulation Resistance
- > 100 MegaOhms at 100 Vdc
NPT Connection
- 1/4" NPT Male
- 1/8" NPT Male
O-Ring Material
- Buna-N
Operating Temperature
- -40° to 125° C (-40° to 257° F)
Output
- 0.5 - 4.5 Vdc Ratiometric, 3-Wire
- 0.5 - 4.5 Vdc, 3-Wire
- 0-10 Vdc, 3-Wire
- 0-5 Vdc, 3-Wire
- 1-5 Vdc, 3-Wire
- 1-6 Vdc, 3-Wire
- 4-20 mA, 2-Wire
- 9-36 Vdc
- Ratiometric: 3.5 mA
Position Effect
- <± 0.01% of Span, Typical
Pressure Cycles
- Durability: Tested to 10 Million Cycles
Pressure Range
- bar: -1 to 20.7
- kPa: -101.4 to 2,068
- psi: -14.7 to 300
Pressure Type
- Absolute
- Gauge
Response Time
- < 2 milliseconds
SAE Connection
- 3/8"-24 SAE Male with Buna-N O-Ring
- 7/16"-20 SAE Male with Buna-N O-Ring
- 9/16"-18 SAE Male with Buna-N O-Ring
Shock
- 100 G, 6 milliseconds
Stability
- <± 0.25% of Span/Year
Storage Temperature
- -40° to 125° C (-40° to 257° F)
UNF/UNC Connection
- 3/8"-24 Male UNJF-3A (with 37° Cone Seat)
- 7/16"-20 Male UNJF-3A (with 37° Cone Seat)
Update Time
- Warm-Up Time: < 500 milliseconds Typical
Vibration
- Random Vibration: 20 G over Temperature Range -40° to 125° C (-40° to 257° F). Exceeds Typical MIL. Standard requirements
Voltage
- Insulation Breakdown Voltage: 100 Vac
Wetted Materials
- 316L Stainless Steel
