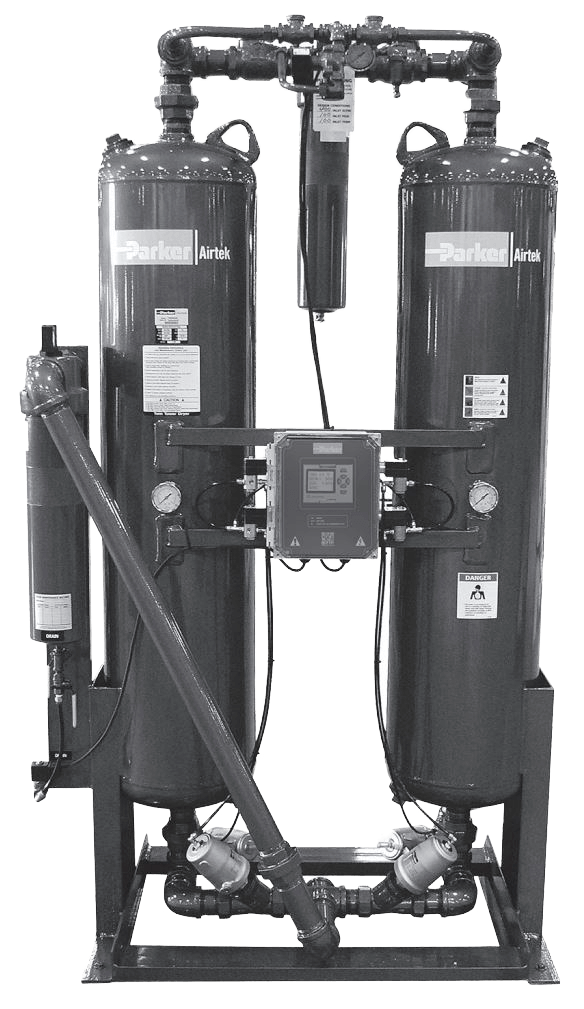

TW Series Heatless Desiccant Air Dryers
Brand: Wilkerson CorporationParker TW Series Heatless Desiccant Air Dryers remove water vapor from compresses air through a process known as pressure swing adsorption. Pressure dewpoints ranging from -40° F (-40° C) standard to -100° F (-70° C) optional are attained by directing the flow of saturated compressed air over a bed of desiccant.
Features- Pre-Filter and After Filters Included with Dryers
- Solid State Controller
- CycleLoc™ Demand Control
- Variable Cyle Control (Models TW75 - TW800 SCFM)
- Purge Flow Indicator
- Purge Flow Regulator (Models TW75 - TW800 SCFM)
- Repressurization Circuit (Models TW75 - TW800 SCFM)
- Control Air Filter (Models TW75 - TW800 SCFM)
- Safety Valves
- Pressure Equalization
- 150 PSIG Design Standard
- Moisture Indicator (Models TW75 - TW800 SCFM)
Displaying prices & availability for Ohio, United States 43201 in USD. Change location.
Models matching criteria: 12
Capacity 40 SCFM @ 100 psig
Out of Stock
Capacity 55 SCFM @ 100 psig
Out of Stock
Capacity 75 SCFM @ 100 psig
Out of Stock
Capacity 100 SCFM @ 100 psig
Out of Stock
Capacity 130 SCFM @ 100 psig
Out of Stock
Capacity 200 SCFM @ 100 psig
Out of Stock
Capacity 250 SCFM @ 100 psig
Out of Stock
Capacity 300 SCFM @ 100 psig
Out of Stock
Capacity 400 SCFM @ 100 psig
Out of Stock
Capacity 500 SCFM @ 100 psig
Out of Stock
Capacity 600 SCFM @ 100 psig
Out of Stock
Capacity 800 SCFM @ 100 psig
Out of Stock
Specifications
Inlet or Ambient Air Temperature
- 120° F (49° C) Maximum, 50° F (10° C) Minimum Inlet
Operating Pressure
- 80 psig (5.5 bar) Minimum
Working Pressure
- 150 psig (10.5 bar) Maximum
Pressure Drop at Rated Flow
- Less Than 5 psi (0.34 bar)
Primary Voltage
- 120 V / 1 ph / 60 Hz
Capacity
- 40 to 800 SCFM @ 100 psig
Dryer Air Port In/Out
- 1/2" NPT, 3/4" NPT, 1" NPT, 1-1/2" NPT, 2" NPT
