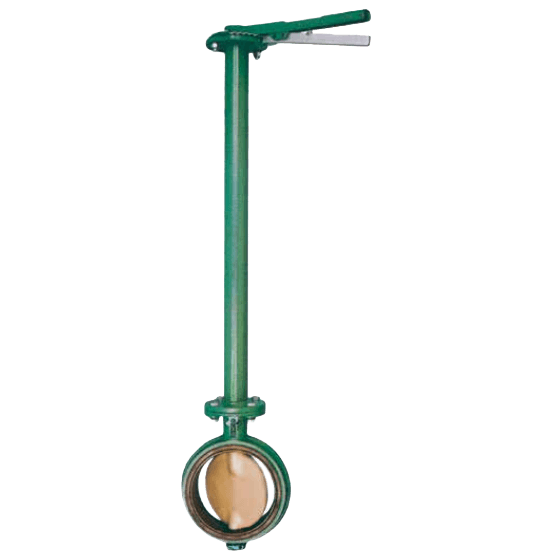

Stem Extension DEMCO Butterfly Valve Accessory

Brand: Cameron

Acclaimed as one of the most durable of all resilient-seated butterfly valves in the industry, this valve excels in a wide variety of applications. Cast in both wafer and tapped-lug patterns in a wide variety of material choices, DEMCO NE-C butterfly valve features a one-piece body for reduced weight and increased strength. The unique stem-hole design in the disc ensures a dry stem journal, and the hard-backed seat allows ease of installation, reliable operation, and is field-replaceable without special tools. The DEMCO NE-C butterfly valve is available in sizes 2" through 36" (50 mm through 900 mm). Engineered for long-term, maintenance-free performance, the DEMCO NE-C butterfly valve is commonly selected for a variety of applications spanning a wide range of industries.

Specifications

Brand

Applications

  • Agriculture
  • Chemical & Petrochemical
  • Cooling Towers (HVAC)
  • Dry Bulk Handling
  • Food & Beverage
  • Marine & Government
  • Mining & Materials
  • Oil & Gas Drilling & Production
  • Power
  • Water & Wastewater

Approvals & Certifications

  • MSS-SP-25

Flange Size - 10" (DN250)

  • 10" (DN250) - 150# (ASME)

Flange Size - 12" (DN300)

  • 12" (DN300) - 150# (ASME)

Flange Size - 14" (DN350)

  • 14" (DN350) - 150# (ASME)

Flange Size - 16" (DN400)

  • 16" (DN400) - 150# (ASME)

Flange Size - 18" (DN450)

  • 18" (DN450) - 150# (ASME)

Flange Size - 2-1/2" (DN65)

  • 2-1/2" (DN65) - 150# (ASME)

Flange Size - 2" (DN50)

  • 2" (DN50) - 150# (ASME)

Flange Size - 20" (DN500)

  • 20" (DN500) - 150# (ASME)

Flange Size - 24" (DN600)

  • 24" (DN600) - 150# (ASME)

Flange Size - 3-1/2" (DN90)

  • 3-1/2" (DN90) - 150# (ASME)

Flange Size - 3" (DN80)

  • 3" (DN80) - 150# (ASME)

Flange Size - 4" (DN100)

  • 4" (DN100) - 150# (ASME)

Flange Size - 5" (DN125)

  • 5" (DN125) - 150# (ASME)

Flange Size - 6" (DN150)

  • 6" (DN150) - 150# (ASME)

Flange Size - 8" (DN200)

  • 8" (DN200) - 150# (ASME)

Flange Type

  • Flat Face (FF)
  • Raised Face (RF)

Flow Rate

  • 6 to 70,000 Cv

Operating Temperature

  • -34° to 204° C (-30° to 300° F)

Pressure Rating

  • psi: 0 to 285 (kPa: 0 to 1,965, bar: 0 to 19.65)

Seat / Seal Material

  • Seat: Buna-N
  • Seat: EPDM
  • Seat: FKM
  • Seat: Neoprene

Stem Material

  • Carbon Steel
