Emerson Appleton Illuminated Push Button, Unicode 2 Series
Images are representations only.

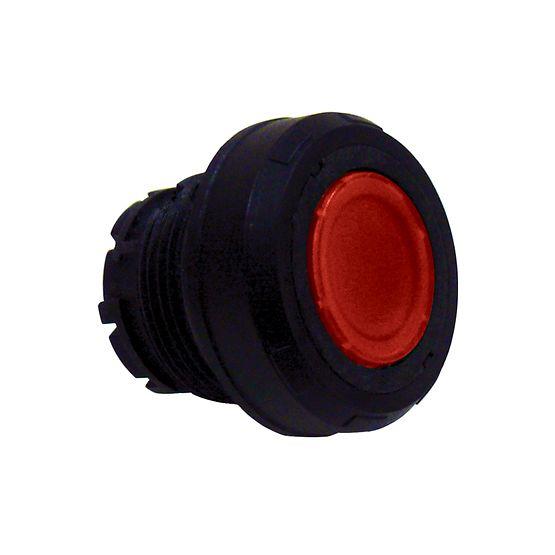

Appleton™ Unicode™ 2 Series Illuminated Push Buttons

Brand: Appleton

Appleton™ illuminated push buttons for Increased Safety Unicode™ 2 Series enclosures are available for use in conjunction with contactors or magnetic starters for remote control of motors. They provide circuit control and/or selection.
Features
  • Can be equipped with up to two Unicode 2 Series Contact Blocks (UCB) contact blocks.

  • Globally certified.

  • Available in TS35 rail mounted or panel mounted.

  • Long lifetime, high intensity single LED light.

  • Rated operating voltage (Ue): 12 Vac to 254 Vac, 50/60 Hz and 12 Vdc to 60 Vdc.

  • Terminal connection: 2.5 mm² (0.004 in²).

  • Operational life: 100,000 hours.

    • Specifications

    Brand

    Approvals & Certifications

    • Zone 1 & 2 - 21 & 22, Ex II 2 GD, IP66, IK10

    ATEX & IECEx Surface Temperature

    • Actuator & Lens: -40° to +60° C (-40° to +140° F). Contact Block & Pilot Light: -40° to +75° C (-40° to +167° F)

    NEC/CEC Certifications & Compliances

    • Class I, Division 2, Groups A, B, C, D, Class I, Zone 1, AEx De IIC, Class I, Zone 1, AEx E IIC, Class II, Division 2, Groups F, G, Class III, Typical 4X, IP66

    NEC/CEC Operating Temperature

    • -40° to +60° C (-40° to +140° F)

    Standard Materials

    • Polyamide Body with Ethylene Propylene Diene Monomer (M-class) Rubber (EPDM) Seal
