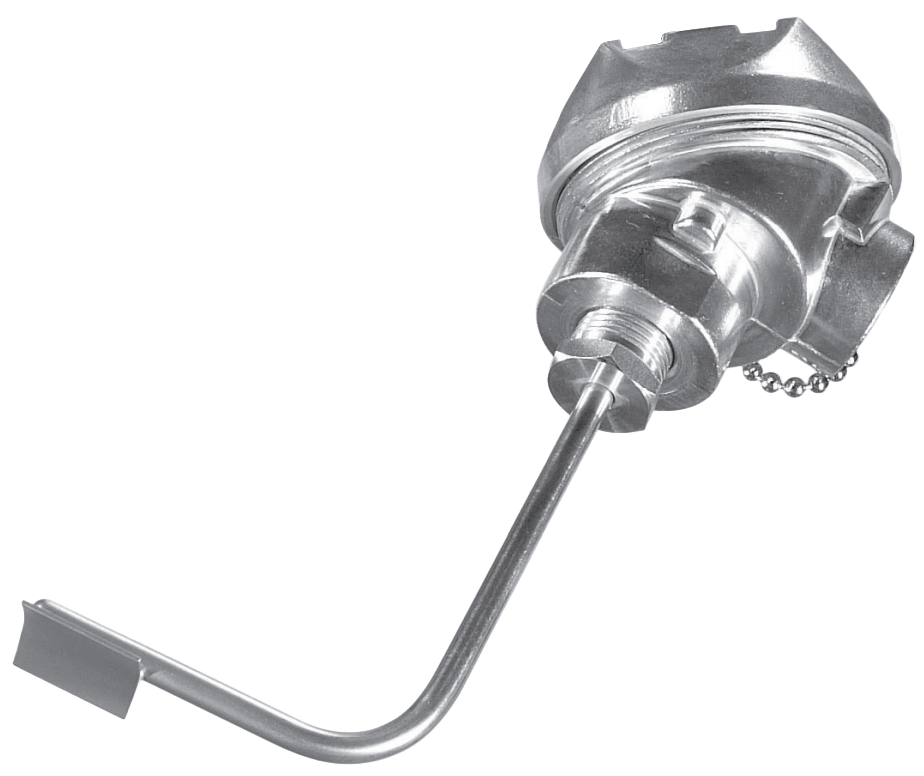

Style T1441/T1441X Heat Trace RTD Temp Sensor
Brand: United Electric Controls Ltd.Designed for use in any pipe or surface temperature measuring application.
Features- Heat transfer pad with excellent temperature response
- Rugged stainless steel sheaths for excellent mechanical protection
- Replaceable element design for simplified RTD replacement — to replace a faulty element, you simply remove the head cover, disconnect the leads and remove the flexible element. You then insert the new element and reconnect the leads. Your process is up and running in minutes
- Options include dual RTD sensors, thermocouple sensors and a variety of weld pad and head styles
Specifications
Accuracy
- ± 0.12%
Conduit Connection
- 1/2" NPT
Electrical Connectors
- Terminal Block
Environmental Protection
- IP66
- NEMA 4
- Terminal Head: Explosion-proof
Length
- Sheath Length: 4-1/4" (107.9 mm) from Pipe to Fitting Standard
Materials of Construction
- Aluminum
- Sheath: Stainless Steel
Mounting
- Pipe
Operating Temperature - Sensor
- -18° to 371° C (0° to 700° F)
RTD Type
- Pt100
Sensor, Probe Connection
- 3-Wire
Sensor, Probe Type
- RTD
