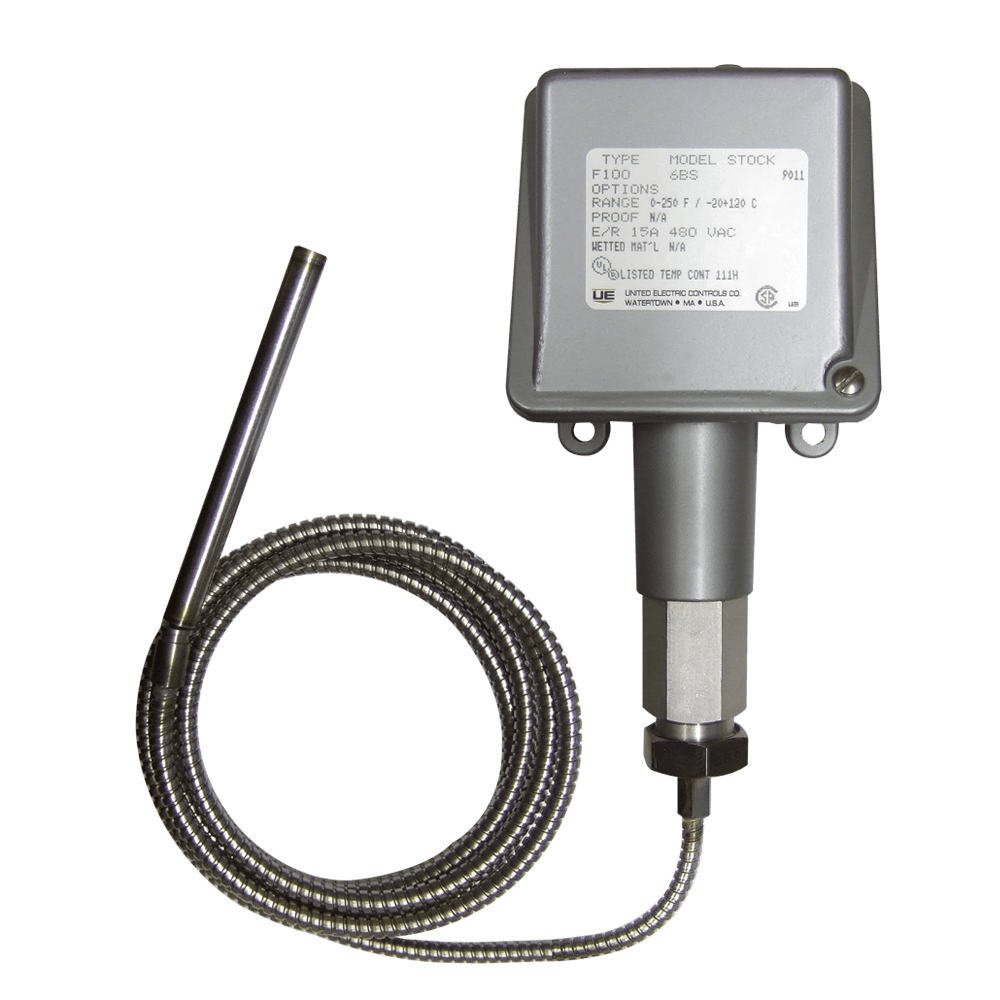

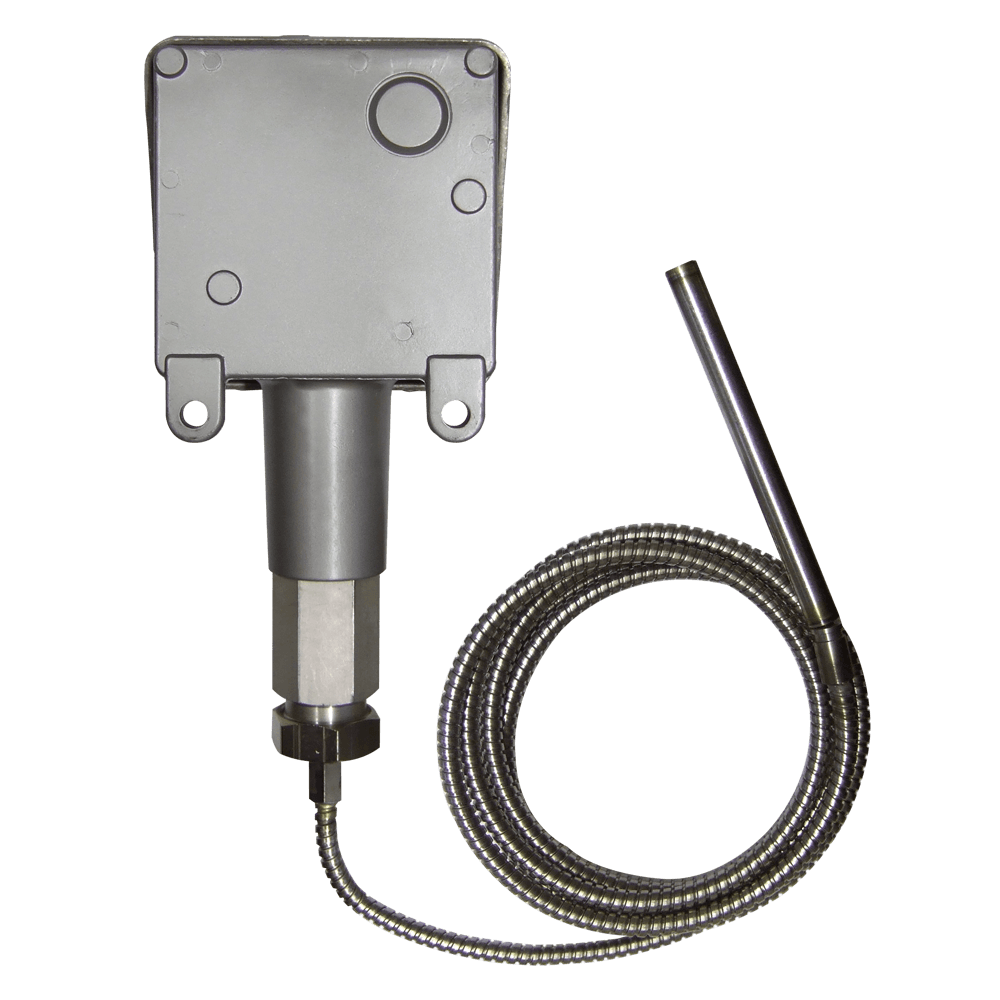

100 Series Type F100 Temperature Switch
Brand: United Electric Controls Ltd.

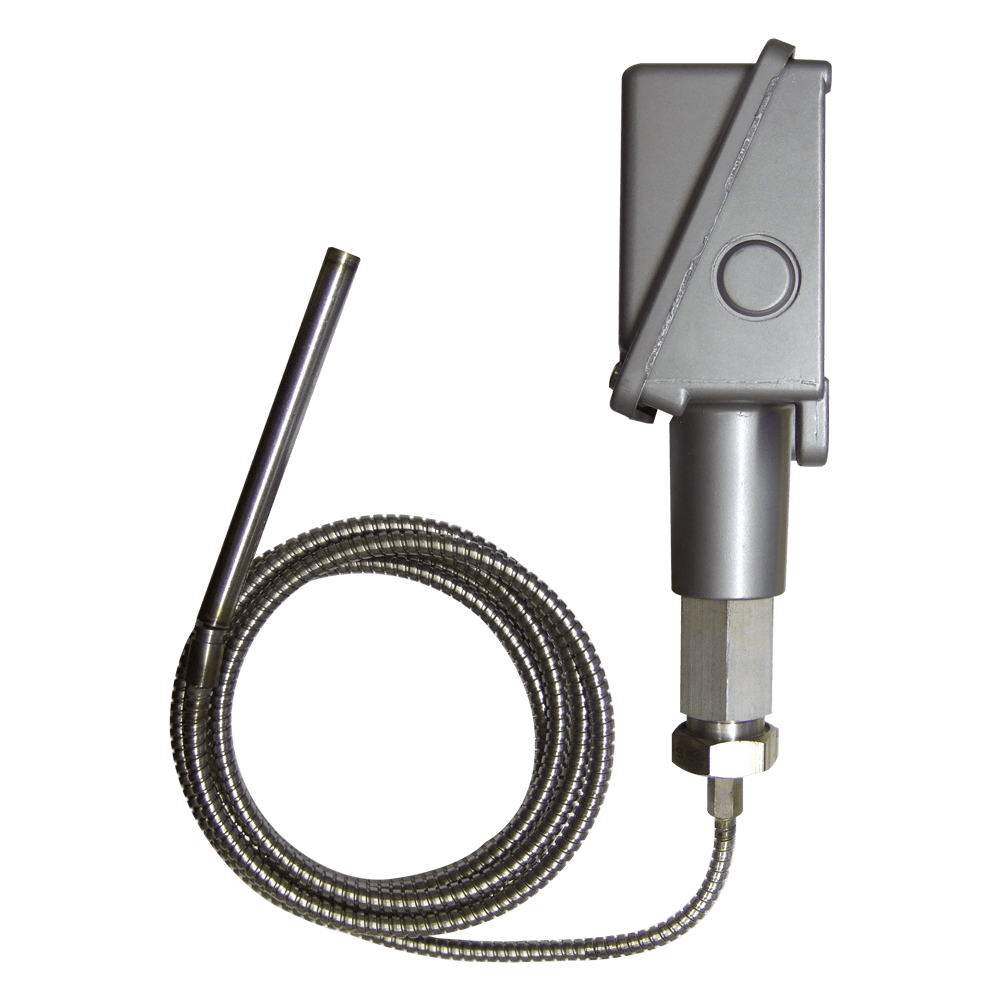

The United Electric 100 Series is a cost-effective pressure and temperature switch for process plants and OEM equipment. The rugged, one piece enclosure features a slanted cover for wiring accessibility. A wide variety of microswitch and process-connection options make this versatile series ideal for applications requiring a rugged weather-proof mechanical switch.
Typical applications that utilize the 100 Series are heat tracing, freeze protection, processing equipment (pumps, compressors), inputs for annunciator panels, and fire suppression systems.
Features- UL Listed, CSA Certified. Conforms to NEMA 4X & IP 65 Requirements
- Adjustable Range: -115° to 340° C (-180° to 650° F)
Specifications
Ambient Temperature Range
- -40° to 71° C (-40° to 160° F)
Applications
- Heat Tracing
Approvals & Certifications
- ATEX Ex Tamb. = -50° to 60° C
- CE: ATEX Directive (94/9/EC) II 1 G EEx Ia IIC T6
- CPT: Gosgortechnadzor Permit, 0ExiaIICT6, Tamb: -50° to 60° C
- CSA
- GOST
- UL
Deadband
- Typical 1% of Range Under Laboratory Conditions (70° F Ambient Circulating Bath at Rate of 1/2° F Per Minute Change)
Electrical Connectors
- 1/2" NPT Female
Electrical Contacts
- Normally Closed or Normally Open
Electrical Rating
- 0.03 A Inductive at 0.5 A Resistive, 125 Vdc
- 1 A Inductive at 2 A Resistive, 24-30 Vdc
- 15 A 125/250/480 Vac Resistive
Enclosure, Body Material
- Die Cast Aluminum
- Epoxy Powder-Coated
Environmental Protection
- IP65
- NEMA 4X
Fill Material
- Non-Toxic Oil
Materials of Construction
- Bulb & Capillary: 304 Stainless Steel
- Bulb & Capillary: Copper
Repeatability
- ± 1% of Adjustable Range
Set Point - Decreasing
- Model 1BS, 1BC: -117.8° to 48.9° C (-180° to 120° F)
- Model 2BS, 2BC: -87.2° to 176.7° C (-125° to 350° F)
- Model 3BS, 3BC: -87.2° to 260° C (-125° to 500° F)
- Model 4BS, 4BC: -40° to 48.9° C (-40° to 120° F)
- Model 5BS, 5BC: -40° to 82.2° C (-40° to 180° F)
- Model 6BS, 6BC: -17.8° to 121.1° C (0° to 250° F)
- Model 7BS, 7BC: -17.8° to 204.4° C (0° to 400° F)
- Model 8BS, 8BC: 10° to 343.3° C (50° to 650° F)
Set Point - Increasing
- Model 1BS, 1BC: -117.8° to 48.9° C (-180° to 120° F)
- Model 2BS, 2BC: -87.2° to 176.7° C (-125° to 350° F)
- Model 3BS, 3BC: -87.2° to 260° C (-125° to 500° F)
- Model 4BS, 4BC: -40° to 48.9° C (-40° to 120° F)
- Model 5BS, 5BC: -40° to 82.2° C (-40° to 180° F)
- Model 6BS, 6BC: -17.8° to 121.1° C (0° to 250° F)
- Model 7BS, 7BC: -17.8° to 204.4° C (0° to 400° F)
- Model 8BS, 8BC: 10° to 343.3° C (50° to 650° F)
Shock
- 15 G 10 milliseconds
Storage Temperature
- -54° to 71° C (-65° to 160° F)
Switch Type
- SPDT
Temperature Effect
- Set Point Shift: Typical < 1% of Range for a Ambient Temperature Change of 50° F (28° C)
Temperature Range
- -117.8° to 343.3° C (-180° to 650° F)
Vibration
- 2.5 G, 5-500 Hz
