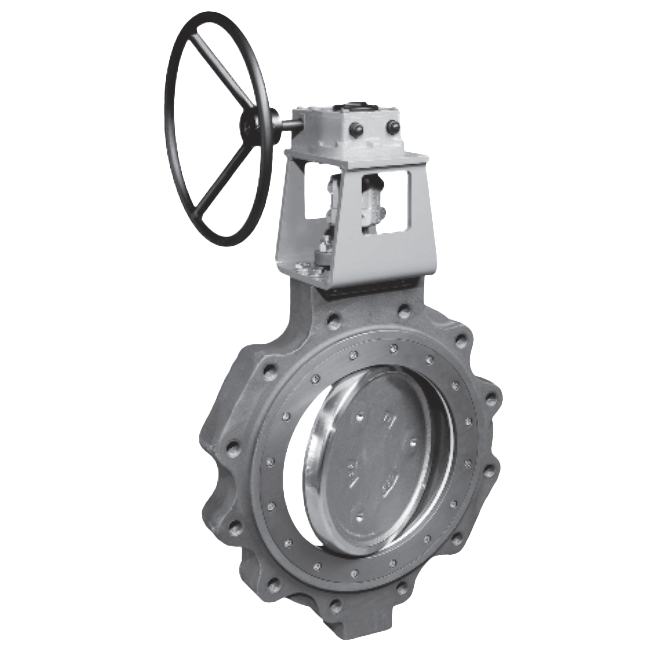

Jamesbury M Series Manual Gear Actuator
Brand: Metso
Type M Series gear actuators are recommended for use on Jamesbury ball and butterfly valves.
For the sake of convenience, and where lever-handles presents pace problems, gear actuators are the ideal choice.
Type M Series actuators are fully enclosed and weather-proof. They are factory lubricated for their lifetime, and each unit includes a pointer to indicative valve position.
Standard M units are temperature rated from -40° to 80° C (-40° to 176° F).
Type M Series actuators are available factory-mounted on valves or separately for field installation.
Specifications
Brand
Actuator Type
- Hand Operated
- Manual Gear Actuator
Approvals & Certifications
- API 608
- API 609
Bearing Material
- Worm Shaft: Sintered Iron Copper (FC02540)
Cap Material
- Indicator, Locknut Protection: Injection Molded Plastic / Gray Iron (Acetal Kematal WR90 / BS1452 Grade 260)
Cover Material
- Gray Iron ( BS 1452 Grade 260)
Environmental Protection
- Weatherproof
Materials of Construction
- Bearing Thrust, Needle Thrust: Alloy Steel (Typical AS)
- Dowels: Hardened & Ground Steel (BS7055 Typical A)
- Quadrant: Ductile Iron (BS 2789 Grade 500/7)
Name Plate, Tag Material
- Aluminum
O-Ring Material
- Indicator, Quadrant: Medium Nitrile (60 to 80) Shore Hardness
Pressure Type
- Differential
Screw Material
- Hex Head Set, Stop, Socket, Cover: Steel (BS3692 Grade 8.8 / BS3692)
Seat / Seal Material
- Worm Shaft Oil Seal: Hytrel 5526 (Injection Molded Plastic)
Shaft Material
- Worm: Nitempered Steel (BS 970 606M36)
Temperature Range
- 25° to 200° C (77° to 392° F) - High Temperature
- -40° to 80° C (-40° to 176° F)
Torque
- Input: 124 to 1,124 In/Lbs (14 to 127 Nm), Maximum
- Output: 1,106 to 213,268 In/Lbs (125 to 24,096 Nm), Maximum
