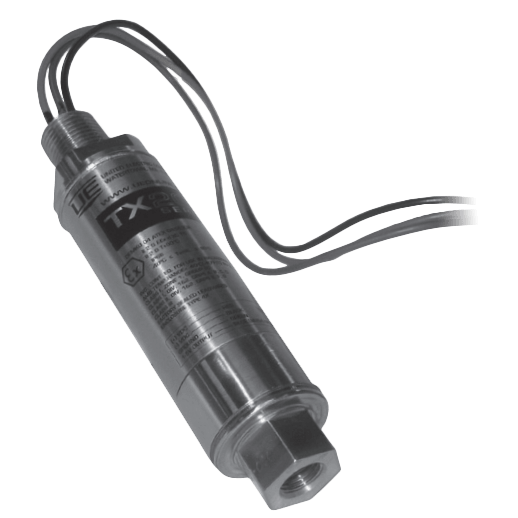

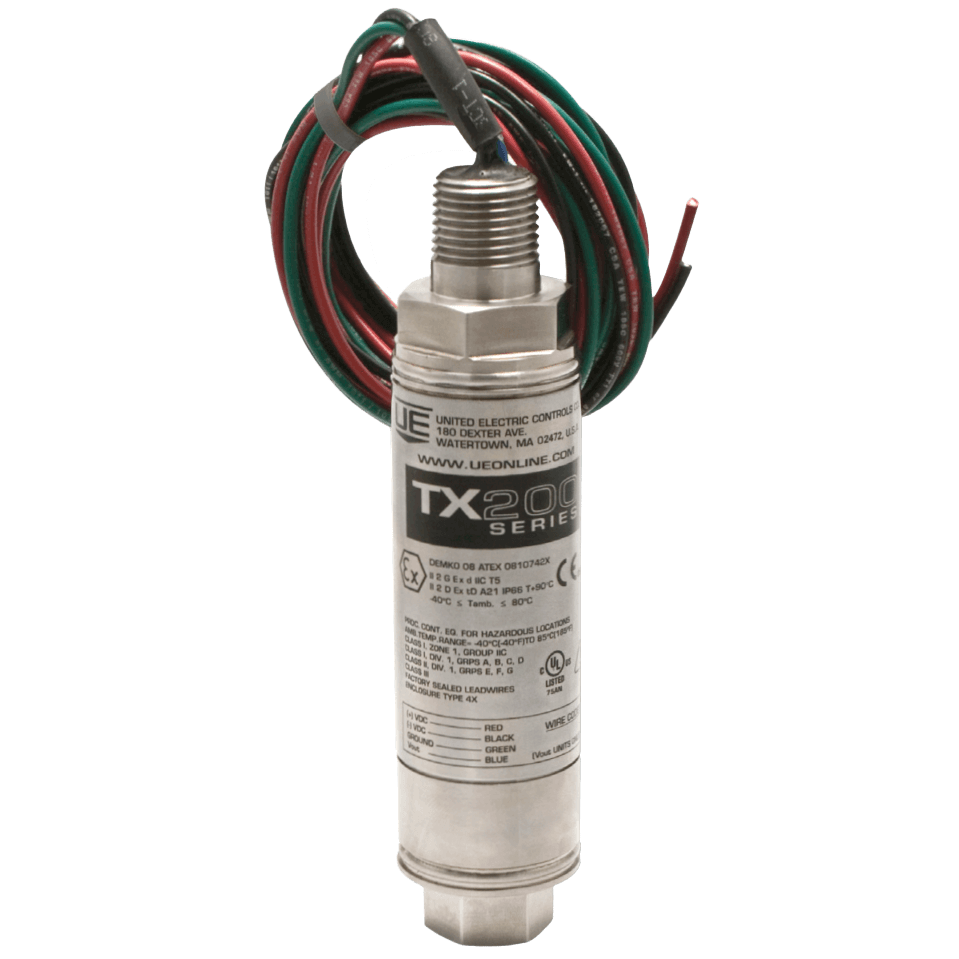

TX200 Pressure Transmitter

Brand: United Electric Controls Ltd.
Request Information
Favorite

United Electric Pressure Transmitter, TX200 United Electric Pressure Transmitter, TX200
The TX200 is a compact, rugged pressure transmitter utilizing ASIC technology to provide optimum sensor signal conditioning and temperature compensation of the sensor output. It is designed for process control industries worldwide and ideally suited for petrochemical and upstream oil and gas applications. The TX200 provides a cost-effective solution to using conventional process transmitters.
Features
  • HART 7 communication protocol with 4-20 mA output
  • ASIC 4-20 mA or 1-5 or 0-10 voltage outputs
  • 0.25% accuracy
  • Compact, 316 stainless steel, hermetically sealed enclosure
  • cULus and ATEX certified for Class I, Div. 1, Zone 1
  • Pressure Ranges: psi: 0 to 25,000 (kPa: 0 to 172,400, bar: 0 to 1,724)

View Details

Specifications

Brand

Accuracy

  • Accuracy (L, H, R): 0.25% [0.5% for psi: 15 (kPa: 103.4, bar: 1.034)]

Applications

  • BOP Accumulator Closing Units
  • Compressors & Turbine Skid Packages
  • Equipment Monitoring & Safety Shutdown for Pump
  • Gas Flow Monitoring
  • Metering Runs
  • Monitoring Tubing & Casing Pressures
  • Offshore & Onshore Drilling Rigs
  • Pipeline Integrity
  • Pipelines Compressor Stations
  • Process Applications
  • Process Monitoring & Control
  • Pump Monitoring & Protection
  • Reliable Asset Management Data
  • Safety Shutdown & Control Panels
  • SCADA Systems
  • Upstream, Midstream, & Downstream Oil & Gas Applications
  • Wellhead Monitoring

Approvals & Certifications

  • ATEX Directive 94/9/EC. Ex II 2 G Ex D IIC T5, II 2 D Ex TD A21 IP66 T+90° C, Tamb: -40° to 80° C, EN 60079-0, 60079-1, 61241-0, 61241-1
  • CE
  • EMC (89/336/EEC, 92/31/EEC & 93/68/EEC), EN 55011, 61000-6-4, 61000-6-2, 61326
  • PED (97/23/EC), Sound Engineering Practice (SEP)
  • UL (C,US): Class I, Division 1 & 2, Groups A, B, C, D, Class II, Division 1 & 2, Groups E, F, G, Class III, Class I, Zone 1, Group IIC

BSP Connection

  • G 1/2" Female
  • G 1/2" Male
  • G 1/4" Female
  • G 1/4" Male

Burst Pressure

  • 10 times FSPR of psi: 15 to 2,000 (kPa: 103 to 13,790, bar: 1.03 to 137.9)
  • 4 times FSPR of psi: 7,500 to 25,000 (kPa: 51,710 to 172,400, bar: 517.1 to 1,724) or psi: 90,000 (kPa: 620,500, bar: 6,205) whichever is Less
  • 8 times FSPR of psi: 2,500 to 6,000 (kPa: 17,240 to 41,370, bar: 172.4 to 413.7) or psi: 30,000 (kPa: 206.800, bar: 2,068) whichever is Less

Communication

  • HART 7 with 4-20 mA Output

Compensated Temperature

  • -18° to 80° C (0° to 176° F)

Conduit Connection

  • M20 Male

Cone & Thread Connection

  • 1/4" Autoclave Typical HP Female (HF4)
  • 1/4" Autoclave Typical HP Male (HM4)
  • 1/4" Autoclave Typical MP Female (LF4)
  • 1/4" Autoclave Typical MP Male (LM4)
  • 3/8" Autoclave Typical HP Female (HF6)
  • 3/8" Autoclave Typical HP Male (HM6)
  • 3/8" Autoclave Typical MP Female (LF6)
  • 3/8" Autoclave Typical MP Male (LM6)

Electrical Connectors

  • 1/2" NPT Male
  • 72" 18 AWG, Color-Coded Leadwires
  • Epoxy Coated Aluminum Junction Box
  • M20 Male

Electrical Protection

  • Transient Surges Protection Using A Gas Discharge Tube

Enclosure, Body Material

  • 316 Stainless Steel

Environmental Protection

  • IP66
  • NEMA 4X

Fill Material

  • 0.25 ml Silicone Oil - Models 03-08, 15929

Hysteresis

  • ± 0.1% of Full Scale Output

Load Impedance

  • 1,300 ohms, Maximum
  • 2,000 ohms Minimum (1-5 Vdc or 0-10 Vdc Output) - TX200A & B
  • 250 ohms Minimum for Communication - TX200H
  • 700 ohms, Maximum

Name Plate, Tag Material

  • Stainless Steel

Non-Linearity

  • 0.1% of Full Scale Output, Typical at psi: 0 to 25,000 (kPa: 0 to 172,400, bar: 0 To1,724)
  • 0.2% of Full Scale Output, Typical at psi: 0 to 250 (kPa: 0 to 1,720, bar: 0 to 17.2)
  • 0.3% of Full Scale Output, Typical at psi: 0 To15 (kPa: 0 to 100, bar: 0 to 1)

NPT Connection

  • 1/2" NPT Female
  • 1/2" NPT Male
  • 1/4" NPT Female
  • 1/4" NPT Male

Operating Temperature

  • ATEX: -40° to 80° C (-40° to 176° F)
  • UL, CUL: -40° to 85° C (-40° to 185° F)

Output

  • Full Scale Output: 10 Vdc (0-10 Vdc)
  • Full Scale Output: 16 mA (4-20 mA)
  • Full Scale Output: 4 Vdc (1-5 Vdc)

Pressure Range

  • bar: 0 to 1,724
  • kPa: 0 to 172,400
  • psi: 0 to 25,000

Pressure Type

  • Sealed Gauge

Process Connection Material

  • 316 Stainless Steel

Process Temperature

  • -40° to 125° C (-40° to 257° F)

Proof Pressure

  • psi: 45 to 40,000 (kPa: 310 to 275,800, bar: 3.1 to 2,758)

Repeatability

  • ± 0.1% of Full Scale Output

Resolution

  • A/D Input Resolution: 22-bit - TX200H
  • Infinite - TX200A & B
  • Output Resolution: 0.0004 mA - TX200H

Response Time

  • 10 milliseconds (Typical 90% Final Value) - TX200A & B
  • Programmable Time Constant between 0.2 to 32 seconds - TX200H

Reverse Polarity Protection

  • Yes

SAE Connection

  • 7/16"-20 SAE Female
  • 7/16"-20 SAE Male

Seal Type

  • Hermetically Sealed

Service

  • Oxygen Service Cleaning

Shock

  • 200 G, 1 millisecond

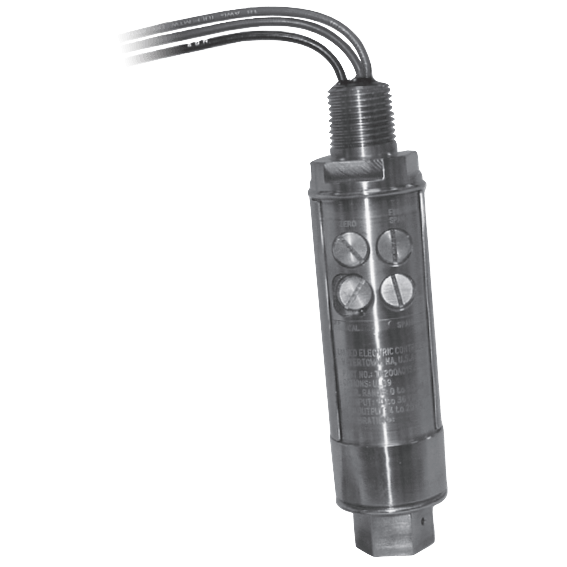

Span & Zero Adjustments

  • Span Adjustment of Calibration Signal Accuracy: ± 1.0% of Full Scale Output - TX200A
  • Span Adjustment of Range Calibration Signal: Nominal 20% of FSPR - TX200A
  • Span Adjustment of Rangeable Down: 10:1 FSPR - TX200H
  • Span Adjustment of Rangeable Down: 5:1 FSPR - TX200A

Span & Zero Effect

  • Temperature Effect: ± 0.5% Per 55° C (100° F)

Storage Temperature

  • -55° to 105° C (-67° to 221° F)

Supply Voltage

  • 10-30 Vdc for 1-5 Vdc Output - TX200A & B
  • 10-36 Vdc for 4-20 mA Output
  • 14-30 Vdc for 0-10 Vdc Output - TX200A & B

Vibration

  • 15 G Peak at 2,000 Hz
  • MIL-STD-810F

Wetted Materials

  • 316 Stainless Steel - Models 03-08, 15-16, 15929, 09-14, 17-20
  • 632 Stainless Steel (15-5 PH) - Models 09-14, 17-20

Zero Balance

  • ± 0.5% of Full Scale Output
