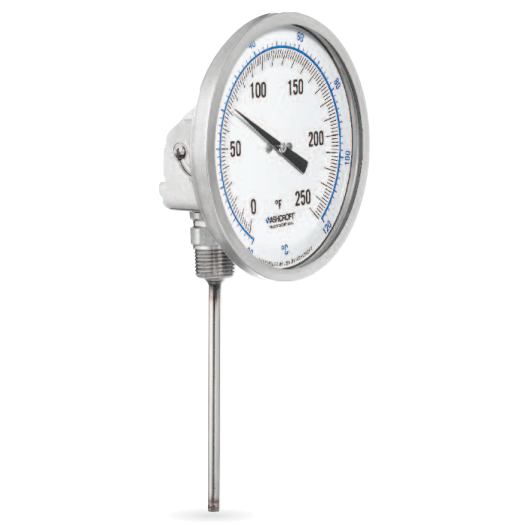

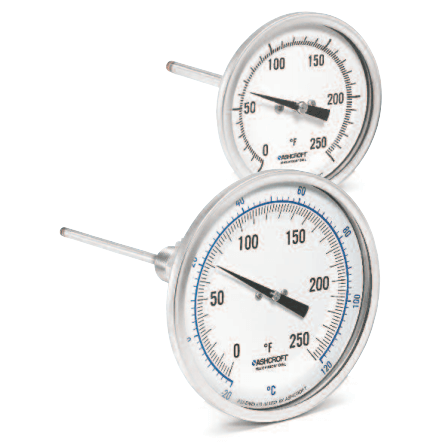

EI Series Bimetal Thermometer
Brand: Ashcroft Inc.
The Ashcroft® EI Bimetallic Thermometer provides high quality and performance.
An ideal choice for accurate temperature measurement.
Features- 1% full span accuracy ASME B40.200 (ASME B40.3 Grade A)
- Maximum ambient temperature is 94° C (200° F)
- Hermetically sealed case to prevent entry of moisture, interior corrosion and coil freeze-up
- External adjustment permits zero reset from outside the case
- Maxivison dial allows readability from any angle without parallax error
- Silicone coil dampening (up to 400° F) provides vibration dampening and improves response time
- All-welded stainless steel construction
- Heavy-Duty glass lens
- Protection NEMA 4X/IP66
Specifications
Brand
Accuracy
- 1% of Full Scale ASME B40.200 (ASME B40.3 Grade A)
Ambient Temperature Range
- Maximum
Applications
- Biotechnology
- Chemical & Petrochemical
- Equipment Skids
- Food & Beverage
- General Industries
- HVAC Equipment
- Offshore Oil Rigs
- Pharmaceutical
- Power
- Pulp & Paper
- Refineries
Approvals & Certifications
- RoHS
Diameter
- Stem: 0.25" (6.35 mm)
Enclosure, Body Material
- 304 Stainless Steel
- 316 Stainless Steel
Environmental Protection
- IP66
- NEMA 4X
Lens
- Window: Heavy-Duty Glass Lens
- Window: Plastic Lens
- Window: Shatterproof Glass
Name Plate, Tag Material
- Paper
- Stainless Steel
NPT Connection
- 1/2" NPT Male
- 1/4" NPT Male
Size
- Dial: 2"
- Dial: 3" (76.2 mm)
- Dial: 5" (128 mm)
Stem Length
- 2.5 to 60" (63.5 to 1,524 mm)
Stem Material
- 304 Stainless Steel
- 316 Stainless Steel
Temperature Range
- -50° to 500° C (-58° to 932° F)
