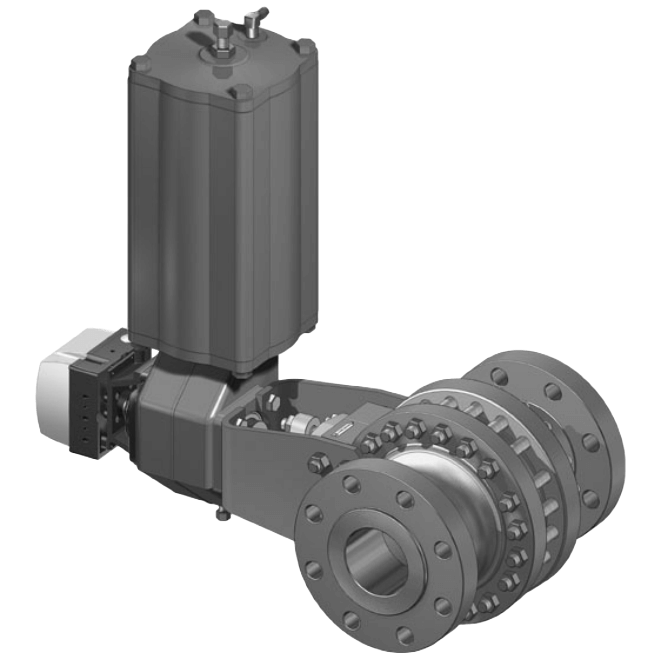

Metso Neles Trunnion Mounted Ball Valve, Series D
Images are representations only.

Neles Series D Trunnion Mounted Ball Valve

Brand: Metso
Request Information
Favorite

Metso's Neles Series D is a trunnion mounted ball valve for demanding on/off and control applications.

Valve series incorporates Metso's several decade experience of metal-to-metal seat technology, application based seat selection and overall robust construction.

Equipped with Metso B1 series actuator and VG9000 intelligent safety solenoid the valve assembly delivers high availability in demanding safety valve applications up to SIL 3.

For control applications valves can be equipped with top of the line rotary valve noise attenuation trim options - including the new Q2 trim for gas applications.

Valves are well suited in various of oil and gas, refining, petrochemical and chemical industries - conforming to today's demanding requires of safety and emissions.

View Details

Specifications

Brand

Applications

  • Chemical & Petrochemical
  • Cryogenic Service
  • De-Pressurizing & Blow Down Service
  • ESD/ESV Service
  • High Cycle & Switching Service
  • High Temperature Service
  • HIPPS
  • Low Noise & Anti Cavitation
  • Molecular Sieves
  • Natural Gas, LNG, LPG
  • Oil & Gas Production
  • Oxygen Construction for Gaseous Oxygen Service
  • Power Plants
  • Solids Handling
  • Steam

Approvals & Certifications

  • Fire Safety API 607
  • ISO 15848-1
  • Material Certificate EN 10204-3.1
  • SIL 3

Ball Material

  • 316 Stainless Steel - ASTM A351 CF8M, 1.4408
  • Hard Chrome

Bearing Material

  • Thrust, Strip: PTFE
  • Trunnion: AISI 316 Stainless Steel

Bonnet Material

  • 316 Stainless Steel - ASTM A351 CF8M, 1.4408
  • Cast Carbon Steel (ASTM A 216 Grade WCB)

Bushing Material

  • Cobalt Based Alloy - High Temperature Construction

Enclosure Finish

  • Carbide Hard Facing

Enclosure, Body Material

  • Half (Male, Female): 316 Stainless Steel - ASTM A351 CF8M, 1.4408
  • Half (Male, Female): Cast Carbon Steel (ASTM A 216 Grade WCB)

Flange Size - 10" (DN250)

  • 10" (DN250) - 300# (ASME)
  • 10" (DN250) - 600# (ASME)
  • 10" (DN250) - JIS 10K
  • 10" (DN250) - JIS 16K
  • 10" (DN250) - JIS 20K
  • 10" (DN250) - JIS 30K
  • 10" (DN250) - JIS 40K
  • 10" (DN250) - PN 10
  • 10" (DN250) - PN 100
  • 10" (DN250) - PN 16
  • 10" (DN250) - PN 25
  • 10" (DN250) - PN 40
  • 10" (DN250) - PN 63

Flange Size - 12" (DN300)

  • 12" (DN300) - 150# (ASME)
  • 12" (DN300) - 300# (ASME)
  • 12" (DN300) - 600# (ASME)
  • 12" (DN300) - JIS 10K
  • 12" (DN300) - JIS 16K
  • 12" (DN300) - JIS 20K
  • 12" (DN300) - JIS 30K
  • 12" (DN300) - JIS 40K
  • 12" (DN300) - PN 10
  • 12" (DN300) - PN 100
  • 12" (DN300) - PN 16
  • 12" (DN300) - PN 25
  • 12" (DN300) - PN 40
  • 12" (DN300) - PN 63

Flange Size - 14" (DN350)

  • 14" (DN350) - 150# (ASME)
  • 14" (DN350) - 300# (ASME)
  • 14" (DN350) - 600# (ASME)
  • 14" (DN350) - JIS 10K
  • 14" (DN350) - JIS 16K
  • 14" (DN350) - JIS 20K
  • 14" (DN350) - JIS 30K
  • 14" (DN350) - JIS 40K
  • 14" (DN350) - PN 10
  • 14" (DN350) - PN 100
  • 14" (DN350) - PN 16
  • 14" (DN350) - PN 25
  • 14" (DN350) - PN 40
  • 14" (DN350) - PN 63

Flange Size - 16" (DN400)

  • 16" (DN400) - 150# (ASME)
  • 16" (DN400) - 300# (ASME)
  • 16" (DN400) - 600# (ASME)
  • 16" (DN400) - JIS 10K
  • 16" (DN400) - JIS 16K
  • 16" (DN400) - JIS 20K
  • 16" (DN400) - JIS 30K
  • 16" (DN400) - JIS 40K
  • 16" (DN400) - PN 10
  • 16" (DN400) - PN 100
  • 16" (DN400) - PN 16
  • 16" (DN400) - PN 25
  • 16" (DN400) - PN 40
  • 16" (DN400) - PN 63

Flange Size - 18" (DN450)

  • 18" (DN450) - 150# (ASME)
  • 18" (DN450) - 300# (ASME)
  • 18" (DN450) - 600# (ASME)
  • 18" (DN450) - JIS 10K
  • 18" (DN450) - JIS 16K
  • 18" (DN450) - JIS 20K
  • 18" (DN450) - JIS 30K
  • 18" (DN450) - JIS 40K
  • 18" (DN450) - PN 10
  • 18" (DN450) - PN 100
  • 18" (DN450) - PN 16
  • 18" (DN450) - PN 25
  • 18" (DN450) - PN 40
  • 18" (DN450) - PN 63

Flange Size - 2" (DN50)

  • 2" (DN50) - 600# (ASME)
  • 2" (DN50) - JIS 10K
  • 2" (DN50) - JIS 16K
  • 2" (DN50) - JIS 20K
  • 2" (DN50) - JIS 30K
  • 2" (DN50) - JIS 40K
  • 2" (DN50) - PN 10
  • 2" (DN50) - PN 100
  • 2" (DN50) - PN 16
  • 2" (DN50) - PN 25
  • 2" (DN50) - PN 40
  • 2" (DN50) - PN 63

Flange Size - 20" (DN500)

  • 20" (DN500) - 150# (ASME)
  • 20" (DN500) - 300# (ASME)
  • 20" (DN500) - 600# (ASME)
  • 20" (DN500) - JIS 10K
  • 20" (DN500) - JIS 16K
  • 20" (DN500) - JIS 20K
  • 20" (DN500) - JIS 30K
  • 20" (DN500) - JIS 40K
  • 20" (DN500) - PN 10
  • 20" (DN500) - PN 100
  • 20" (DN500) - PN 16
  • 20" (DN500) - PN 25
  • 20" (DN500) - PN 40
  • 20" (DN500) - PN 63

Flange Size - 24" (DN600)

  • 24" (DN600) - 150# (ASME)
  • 24" (DN600) - 300# (ASME)
  • 24" (DN600) - 600# (ASME)
  • 24" (DN600) - JIS 10K
  • 24" (DN600) - JIS 16K
  • 24" (DN600) - JIS 20K
  • 24" (DN600) - JIS 30K
  • 24" (DN600) - JIS 40K
  • 24" (DN600) - PN 10
  • 24" (DN600) - PN 100
  • 24" (DN600) - PN 16
  • 24" (DN600) - PN 25
  • 24" (DN600) - PN 40
  • 24" (DN600) - PN 63

Flange Size - 28" (DN700)

  • 28" (DN700) - 150# (ASME)
  • 28" (DN700) - 300# (ASME)
  • 28" (DN700) - 600# (ASME)
  • 28" (DN700) - JIS 10K
  • 28" (DN700) - JIS 16K
  • 28" (DN700) - JIS 20K
  • 28" (DN700) - JIS 30K
  • 28" (DN700) - JIS 40K
  • 28" (DN700) - PN 10
  • 28" (DN700) - PN 100
  • 28" (DN700) - PN 16
  • 28" (DN700) - PN 25
  • 28" (DN700) - PN 40
  • 28" (DN700) - PN 63

Flange Size - 3" (DN80)

  • 3" (DN80) - 600# (ASME)
  • 3" (DN80) - JIS 10K
  • 3" (DN80) - JIS 16K
  • 3" (DN80) - JIS 20K
  • 3" (DN80) - JIS 30K
  • 3" (DN80) - JIS 40K
  • 3" (DN80) - PN 10
  • 3" (DN80) - PN 100
  • 3" (DN80) - PN 16
  • 3" (DN80) - PN 25
  • 3" (DN80) - PN 40
  • 3" (DN80) - PN 63

Flange Size - 30" (DN750)

  • 30" (DN750) - 150# (ASME)
  • 30" (DN750) - 300# (ASME)
  • 30" (DN750) - JIS 10K
  • 30" (DN750) - JIS 16K
  • 30" (DN750) - JIS 20K
  • 30" (DN750) - JIS 30K
  • 30" (DN750) - JIS 40K
  • 30" (DN750) - PN 10
  • 30" (DN750) - PN 100
  • 30" (DN750) - PN 16
  • 30" (DN750) - PN 25
  • 30" (DN750) - PN 40
  • 30" (DN750) - PN 63

Flange Size - 32" (DN800)

  • 32" (DN800) - 150# (ASME)
  • 32" (DN800) - 300# (ASME)
  • 32" (DN800) - JIS 10K
  • 32" (DN800) - JIS 16K
  • 32" (DN800) - JIS 20K
  • 32" (DN800) - JIS 30K
  • 32" (DN800) - JIS 40K
  • 32" (DN800) - PN 10
  • 32" (DN800) - PN 100
  • 32" (DN800) - PN 16
  • 32" (DN800) - PN 25
  • 32" (DN800) - PN 40
  • 32" (DN800) - PN 63

Flange Size - 36" (DN900)

  • 36" (DN900) - 150# (ASME)
  • 36" (DN900) - 300# (ASME)
  • 36" (DN900) - JIS 10K
  • 36" (DN900) - JIS 16K
  • 36" (DN900) - JIS 20K
  • 36" (DN900) - JIS 30K
  • 36" (DN900) - JIS 40K
  • 36" (DN900) - PN 10
  • 36" (DN900) - PN 100
  • 36" (DN900) - PN 16
  • 36" (DN900) - PN 25
  • 36" (DN900) - PN 40
  • 36" (DN900) - PN 63

Flange Size - 4" (DN100)

  • 4" (DN100) - 300# (ASME)
  • 4" (DN100) - 600# (ASME)
  • 4" (DN100) - JIS 10K
  • 4" (DN100) - JIS 16K
  • 4" (DN100) - JIS 20K
  • 4" (DN100) - JIS 30K
  • 4" (DN100) - JIS 40K
  • 4" (DN100) - PN 10
  • 4" (DN100) - PN 100
  • 4" (DN100) - PN 16
  • 4" (DN100) - PN 25
  • 4" (DN100) - PN 40
  • 4" (DN100) - PN 63

Flange Size - 6" (DN150)

  • 6" (DN150) - 300# (ASME)
  • 6" (DN150) - 600# (ASME)
  • 6" (DN150) - JIS 10K
  • 6" (DN150) - JIS 16K
  • 6" (DN150) - JIS 20K
  • 6" (DN150) - JIS 30K
  • 6" (DN150) - JIS 40K
  • 6" (DN150) - PN 10
  • 6" (DN150) - PN 100
  • 6" (DN150) - PN 16
  • 6" (DN150) - PN 25
  • 6" (DN150) - PN 40
  • 6" (DN150) - PN 63

Flange Size - 8" (DN200)

  • 8" (DN200) - 300# (ASME)
  • 8" (DN200) - 600# (ASME)
  • 8" (DN200) - JIS 10K
  • 8" (DN200) - JIS 16K
  • 8" (DN200) - JIS 20K
  • 8" (DN200) - JIS 30K
  • 8" (DN200) - JIS 40K
  • 8" (DN200) - PN 10
  • 8" (DN200) - PN 100
  • 8" (DN200) - PN 16
  • 8" (DN200) - PN 25
  • 8" (DN200) - PN 40
  • 8" (DN200) - PN 63

Flange Type

  • Raised Face (RF)
  • Ring Joint Facing

Flow Rate

  • 2,120 to 192,000 Cv at Cv 90° - D2D Model
  • 22,400 to 192,000 Cv at Cv 90° - D2C Model
  • 480 to 86,300 Cv at Cv 90° - D1F Model

Gasket Material

  • Body: Graphite
  • PTFE

Gland Material

  • 316 Stainless Steel - ASTM A351 CF8M, 1.4408

Materials of Construction

  • Bearing Strip (Net), Spring Pin: Stainless Steel
  • Bearing Strip, Insert: PTFE
  • Compression Sleeve, Stud: 316 Stainless Steel (ASTM A 351 Grade CF8M, ASTM A 193 Grade B8M)
  • Key: AISI 329 Stainless Steel
  • Seal Strip: Graphite
  • Stud: Alloy Steel (ASTM A 320 Grade L7M)

Media

  • Gas
  • Oil

Mounting

  • ISO 5211

NACE & NIST

  • NACE MR-0103
  • NACE MR-01-75

Name Plate, Tag Material

  • AISI 304 Stainless Steel

NPT Connection

  • 1" NPT
  • 1" NPT Female
  • 1/2" NPT
  • 1/2" NPT Female
  • 1/4" NPT
  • 3/4" NPT
  • 3/4" NPT Female
  • 3/8" NPT

Nut & Bolt Material

  • Bolt: Stainless Steel (B8M/8M)
  • Hexagon Nut, Bolt: Carbon Steel (ASTM A 194 Grade 2HM, L7M/2H or 2MH)
  • Hexagon Nut: 316 Stainless Steel (ASTM A 194 Grade 8M)

O-Ring Material

  • Viton GF

Plug Material

  • Hexagon: AISI 316 Stainless Steel

Port

  • Full
  • Reduced

Ring Material

  • Back Up, Packing: Polytetrafluoroethylene (PTFE)
  • Retainer: Stainless Steel (ASTM A 479 Grade XM-19)
  • Set: AISI 316 Stainless Steel
  • Sheet, Packing: Graphite

Seat / Seal Material

  • Back Seal, Seat: Graphite
  • Ball Seat: AISI 316 Stainless Steel
  • Ball Seat: Cobalt Based Alloy
  • Bellows Seat: Hard Facing Stainless Steel (Grade 660/F6NM)
  • PTFE

Service

  • Oxygen Service

Spring Material

  • Alloy (UNS N07750)
  • Disc Spring Set: Stainless Steel (EN10088 to 1.8159, ENP)
  • Inconel® 625

Temperature Range

  • -200° to 450° C (-330° to 840° F)

Welded Connection

  • 10" Weld End
  • 12" Weld End
  • 14" Weld End
  • 16" Weld End
  • 18" Weld End
  • 2" Weld End
  • 20" Weld End
  • 24" Weld End
  • 28" Weld End
  • 3" Weld End
  • 30" Weld End
  • 32" Weld End
  • 36" Weld End
  • 4" Weld End
  • 6" Weld End
  • 8" Weld End
