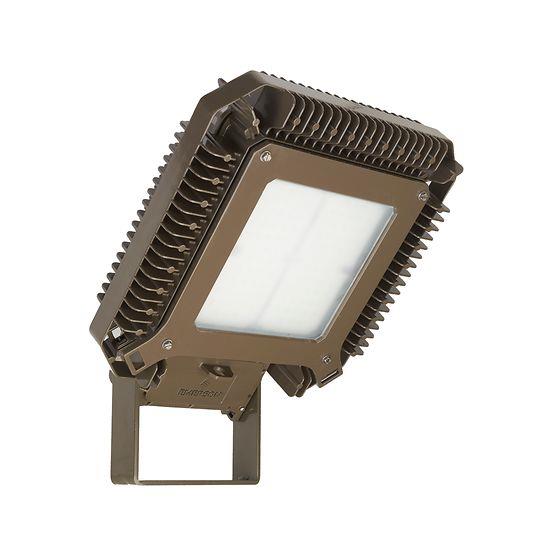

Appleton™ Industrial Areamaster™ Generation 2 LED Luminaire

Brand: Appleton

The Appleton Industrial Areamaster Generation 2 LED luminaires by Emerson deliver best-in-class LED performance. The redesigned Industrial Areamaster provides greater versatility, with models from 9,000 to 19,500 lumens and from 24,000 to 38,000 lumens for the High Lumen version, and a choice of beam patterns to meet your diverse floodlighting needs. Featuring new optic designs for superior uniformity and coverage, the Industrial Areamaster Generation 2 LED luminaires provide HID equivalent lighting that saves over 75 percent in energy costs and practically eliminates maintenance burdens. They are certified for use in industrial and ordinary locations, that require a high degree of ingress protection and ruggedness.
Features
  • Typical applications include security lighting, production facilities, warehouses, processing plants, storage areas, parking garages and lots.

  • Three lumen outputs provide up to 19,500 lumens with a choice of optics for optimal light distribution.

  • Choice of optics for optimal light distribution in a variety of applications.

  • Separate field wiring compartment with screw terminal block for easy and secure connection (can accept UL/CSA 26-10AWG).

  • Choice of color temperature (CCT); 5000K cool white or 3000K warm white.

  • Rugged and compact housing with superior thermal design translates to long luminaire life.

  • Heavy duty, high temperature silicone rubber gaskets.

  • Thermal shock and impact resistant clear or frosted glass one piece lens with captive fasteners. Guard and visor available, purchase separately.

  • Standard 6KV surge protection. Optional 10KV surge protection available.

  • Yoke bracket is designed to accommodate traditional Areamaster brackets and slipfitters for easy retrofit. Slip-fitters and mounting brackets available for easy pole or wall mounting.

  • Two 3/4" NPT entries provided.

  • Field replaceable LED driver and lens cover available.

    • Specifications

    Brand

    Electrical

    • 120-277 Vac 50/60 Hz, 170-300 Vdc or 347-480 Vac, 50/60 Hz

    Lumens to Watts

    • 9,500 Lumens is 175-250 W HID, 15,000 Lumens is 250-400 W HID, 19,500 Lumens is 400-750 W HID

    NEC/CEC Certifications & Compliances

    • Marine Outside Typical (salt Water) for USA Only, Wet Locations, Typical 3R, 4, 4X, IP66/67

    Standard Finishes

    • Architectural Bronze Polyester Housing, Lens Cover, Visor & Yoke Mount

    Standard Materials

    • Copperfree (4/10 of 1% Max.) Aluminum Housing & Lens Door, Silicone Rubber Gaskets, Zinc-Plated HR Steel Yolk, Stainless Steel Bolts, Guard & Safety Cable, Aluminum Visor & (1) Close Up Plug (provided)
