Emerson Appleton Fixture Hanger, JB and GS
Images are representations only.

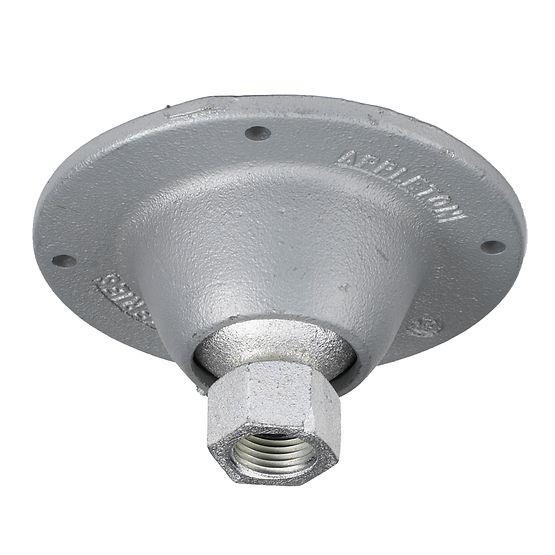

Appleton™ JB and GS Flexible Fixture Hangers

Brand: Appleton

JB and GS Flexible Fixture Hangers are used for the suspension of HID, fluorescent and incandescent lighting fixtures. Ball Type hangers allow for a 15° Swing. Cushion Type hangers allow for a 8° Swing. They are designed for use with JB and GS conduit outlet boxes.
Features
  • Protects fixture against wind and vibration damage.

  • Cushion type hangers feature a neoprene diaphragm which keeps moisture and dirt out of system. Since they are enclosed and gasketed, they are ideal for use in areas where dust and dampness are present.

  • Cushion type hangers are used for added protection where lighting fixtures are subjected to vibration. They permit an 8° swing from vertical.

  • Ball type hangers are economical general purpose hangers that permit a 15° swing.

  • Mount directly to JB and GS cast conduit outlet boxes.

  • JB and GS cushion type hangers suitable for classified location use in Class I, Division 2 areas, if installed in compliance with NEC 501-9(b).

    • Specifications

    Brand

    NEC/CEC Certifications & Compliances

    • Listed for Ordinary (Unclassified) Locations

    Standard Materials & Finishes

    • Malleable Iron with a Triple Coat Finish of (1) Zinc Electroplate (2) Chromate & (3) Epoxy Powder Coat
