TVG006 Silencer
Brand: Burkert Fluid Control Systems
Silencers are used to reduce the noise level of the exhaust air on pneumatic valves. They consist of porous, permeable materials and are screwed directly to the outlet of a control valve.

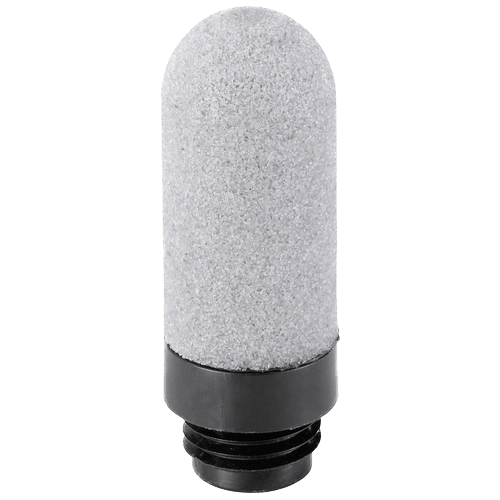

Features- Plastic version

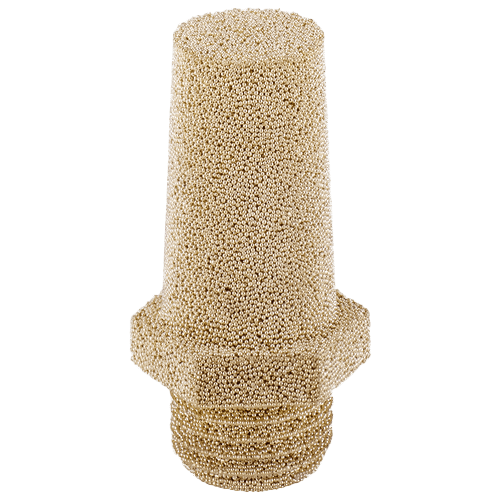

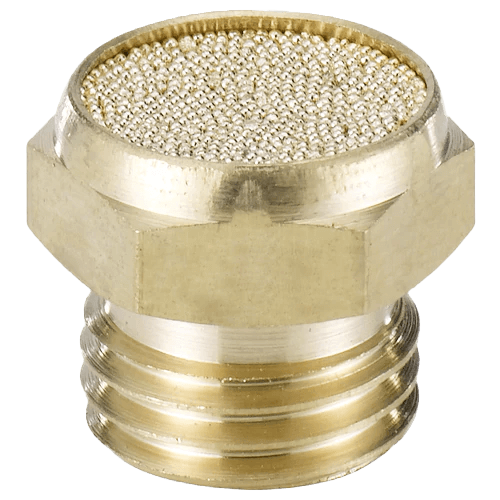

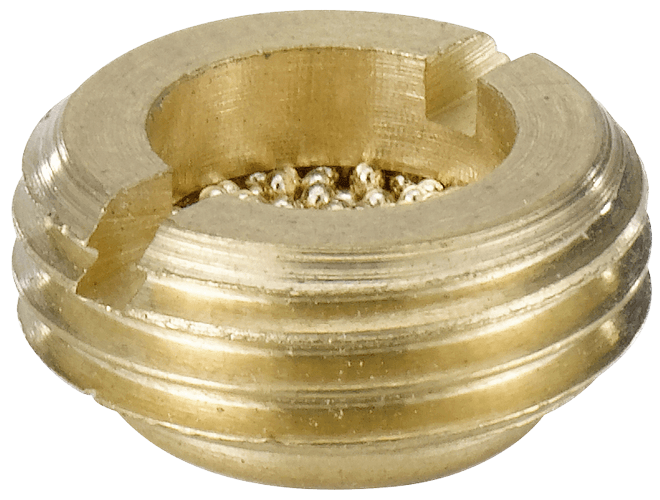

- Sintered bronze with thread or plug connection
- Various construction
- Flat design for restricted space

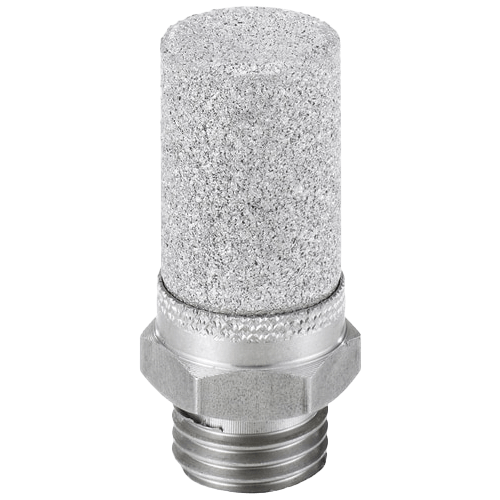

- Stainless steel silencer
Specifications
BSP Connection
- G 1" Male
- G 1/2" Male
- G 1/4" Male
- G 1/8" Male
- G 3/4" Male
- G 3/8" Male
Enclosure, Body Material
- Brass Nickel-Plated
- Porous Polyethylene
- Sintered Bronze
- Stainless Steel
Media
- Compressed Air
Metric Connection
- M5
Pressure Range
- psi: 87.02 to 174 (kPa: 600 to 1,200, bar: 6 to 12), Maximum
Size
- Middle Pore Size: 25 to 150 µm
Temperature Range
- 80° to 180° C (176° to 356° F), Maximum
