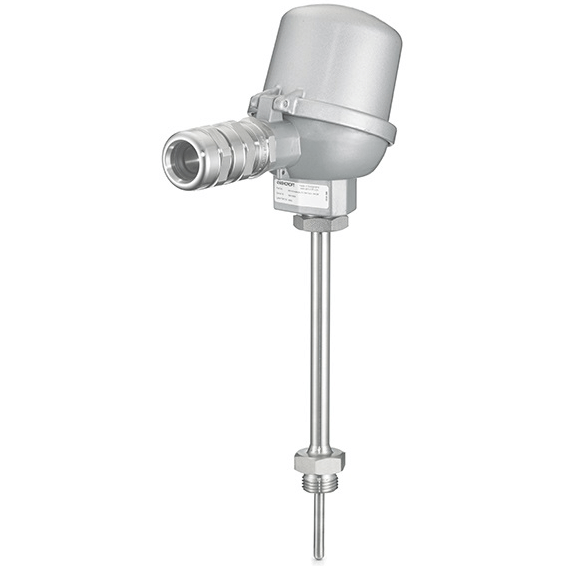

AR10 RTD
Brand: Ashcroft Inc.The Ashcroft AR10 temperature sensor assemblies provide accurate temperature measurements for most applications.
Each temperature sensor assembly consists of a spring loaded temperature sensor insert, a connection head and lag extension.
The assembly may also include an optional terminal block for wiring and/or transmitters.
RTD assemblies are manufactured to IEC 60751.
Features- Designed for DIN 43772 thermowells
- Manufactured to IEC 60751
- Available with and without transmitters
Specifications
Brand
Accuracy
- 1/2 Class B: ± [0.15 + 0.0025° C (0.0045° F)]
- 1/3 Class B: ± [0.10 + 0.0017° C (0.00306° F)]
- Class A: ± [0.15 + 0.0020° C (0.0036° F)]
- Class B: ± [0.30 + 0.0050° C (0.009° F)]
Applications
- Biotechnology
- Cooling Towers
- Diesel Engines
- Food & Beverage
- HVAC/R
- Industrial Equipment Manufacture
- Industrial Ovens
- Pharmaceutical
- Power Generation Equipment
- Reactors
- Turbines
Approvals & Certifications
- Calibration
- ATEX: Ex Ia IIC T6
- IECEx: Ex Ia IIC T6 Ga, 60079-11, 60751
BSP Connection
- G 1/2" A Male
- G 3/4" A Male
Diameter
- Stem: 0.11 to 0.31" (3 to 8 mm)
Electrical Connectors
- Ceramic Terminal Block
Environmental Protection
- IP64
- IP66
- IP68
Gland Material
- Cable Gland: Nickel Plating Brass
- Cable Gland: Polyamide
- Cable Gland: Stainless Steel
Lagging Extension
- 2 to 39" (0.05 to 1 Meter)
Length
- Stem Length: 2 to 3,937" (0.05 to 100 meters)
Materials of Construction
- Head: Aluminum Alloy
- Head: Plastic
Metric Connection
- M14 x 1.5 Male
- M18 x 1.5 Male
Mounting
- Head: 1/2" NPT Female
- Head: M20 x 1.5
- Head: Pg 16
Name Plate, Tag Material
- Metal
NPT Connection
- 1/2" NPT Male
Process Connection Material
- AISI 316 Stainless Steel
Sensor, Probe Connection
- 2-Wire
- 3-Wire
- 4-Wire
Sensor, Probe Type
- Sensor Typical: Pt100, -200° to 600° C (-328° to 1,112° F)
- Sensor Typical: Pt1000, -40° to 600° C (-40° to 1,112° F)
Stem Length
- 2 to 3,937" (0.05 to 100 meters)
Stem Material
- AISI 316L Stainless Steel
