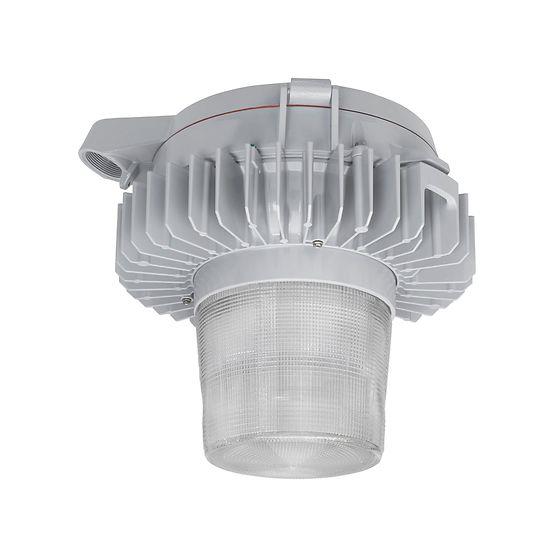

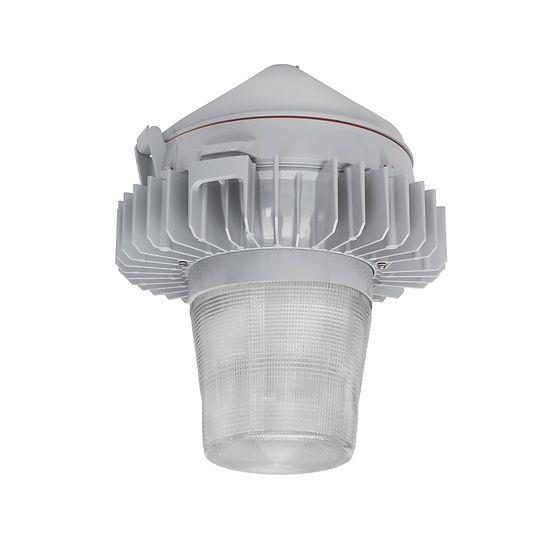

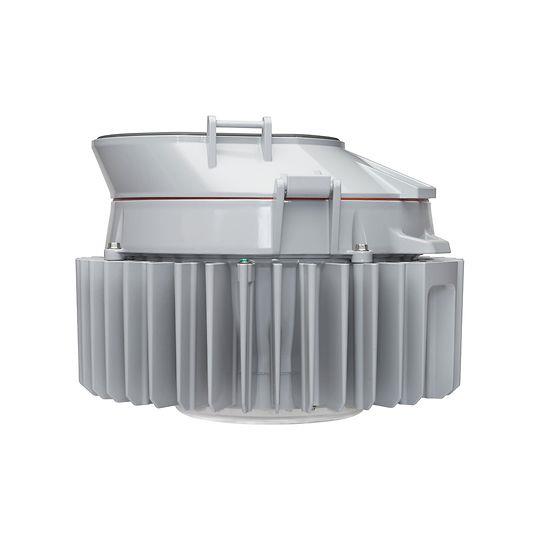

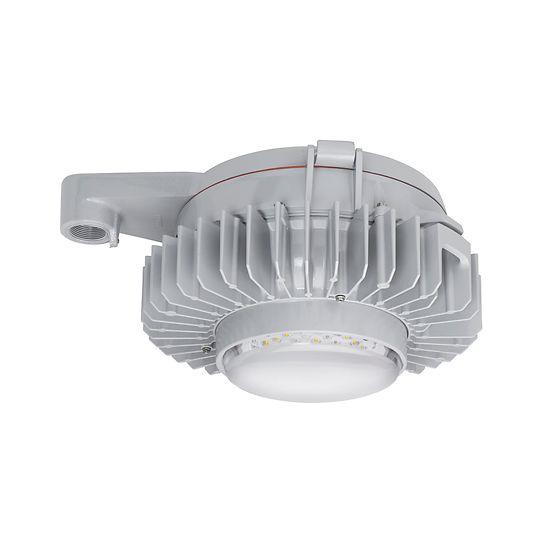

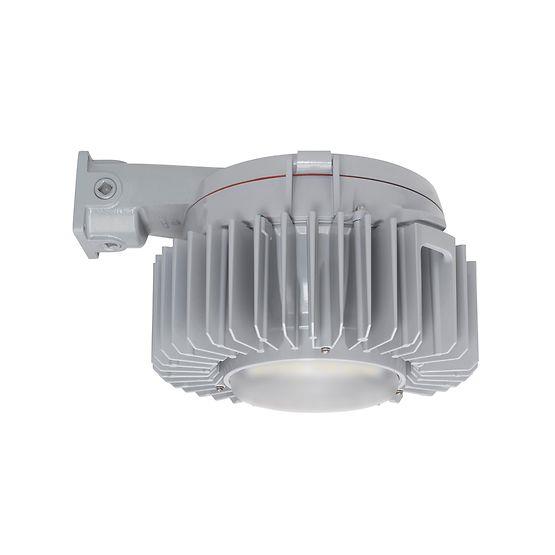

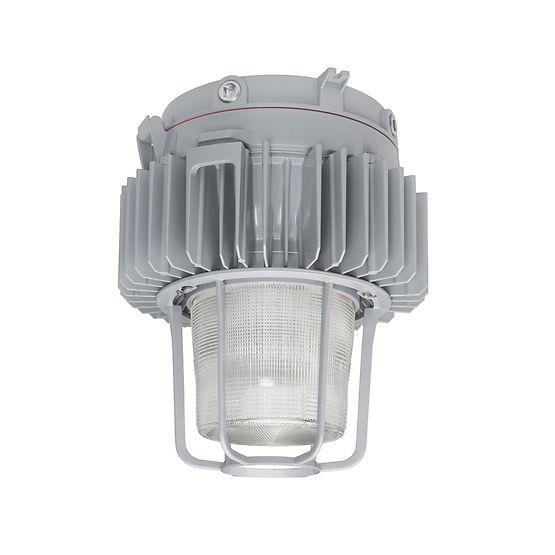

Appleton™ Industrial Mercmaster™ LED Generation 3 Series Luminaires
Brand: Appleton
The Appleton™ Industrial Mercmaster™ LED Generation 3 is a full-feature lighting solution in a rugged, corrosion-resistant housing, offering a range of lumen output options 3,500 to 20,000. Also available in an Emergency Battery Backup version, it offers 90 or 180 minute modes, providing up to 1450 lumens during emergency lighting. cCSAus Certification for ordinary (unclassified) locations and a marine and wet location rating make them an efficient weatherproof fixture for harsh industrial environments. Featuring a multitude of customizable options and accessories, these best-in-class LED luminaires achieve unprecedented application versatility and comfort, while meeting the most demanding task and area lighting requirements.
Features- Typical applications include warehouses, storage facilities, machine shops, receiving areas, manufacturing plants, walkways and catwalks, and other areas where dust, water, dirt and rough usage are a problem
- Design is suited for low mounting heights, from 7 ft., up to 30 ft.
- Standard version: Seven light outputs provide up to 20,000 lumens. LED L70 reported at 60,000 hoursEmergency version: offered on the 3500 and 5500 lumen output options, provides up to 1450 lumens in 90 minute emergency mode and up to 900 lumens in 180 minute emergency mode
- Choice of optics for optimal light distribution in a variety of applications: Type I, Type III, Type V or Type V Wide
- Choice of color temperature (CCT): 5000K cool white, 4000K neutral white or 3000K warm white
- Modular design provides thousands of combinations for maximum versatility: Standard version offers four different globe options (Emergency version offers three different globe options) and seven standard mounting hoods
- Retrofit adapters for Crouse-Hinds™ and Mercmaster™ II hoods available
- Hinge has high lip for added safety during installation and servicing. Hinge and bolt construction assures 360° compression at all points on fixture housing gasket for positive sealing. Swing away design of captive bolt and nut simplifies installation
- Standard 6 kV surge protection, heavy duty, high temperature silicone gaskets and a rugged housing with superior thermal design translates to long luminaire life
- Luminaire housing has wiring compartment with terminal block separate for easy wiring access. The standard screw-type terminal block can accept UL/CSA 26-10 AWG wire
- Standard NPT threads, with M20 option on the standard version
- Field replaceable globes and LED driver
Specifications
Brand
Electrical
- 120-277 Vac, 50/60 Hz, 170-300 Vdc, 347-480 Vac, 50/60 Hz
Lumens to Watts
- 3500 Lumens is 70-100 W HID, 5500 Lumens is 100-150 W HID, 7500 Lumens is 175-250 W HID, 9500 Lumens is 250-350 W HID, 11,500 Lumens is 350-400 W HID, 14,500 Lumens is 400 W HID, 17,500 Lumens is 400-600 W HID
NEC/CEC Certifications & Compliances
- Typical 3R, 4, 4X, IP66, IP67, Suitable for use in Wet Locations, Marine Outside Typical (Salt Water) for USA Only
Standard Materials & Finishes
- Mounting Hoods & Bodies are Copperfree (4/10 of 1% Max.) Aluminum with Electrostatically Applied Baked Gray Epoxy-clad Finish. All Hardware & Catch Assemblies are Stainless Steel. Globes are Polycarbonate or Glass. Refractor is Heat-Resistant Prismati
Documentation
Catalogs
- APMS050C135HD LED Drivers Catalog pdf 341 KB
- APMS050C135UD LED Drivers Catalog pdf 373 KB
- APMS100C105HD LED Drivers Catalog pdf 2.5 MB
- APMS100C105UD LED Drivers Catalog pdf 3.0 MB
- APMS150C105HD LED Drivers Catalog pdf 2.8 MB
- APMS150C105UD LED Drivers Catalog pdf 2.7 MB
- Industrial Mercmaster™ LED Generation 3 Series Luminaires Catalog pdf 8.3 MB
