Emerson Appleton Interlocked Switched Receptacle, MD2SR
Images are representations only.

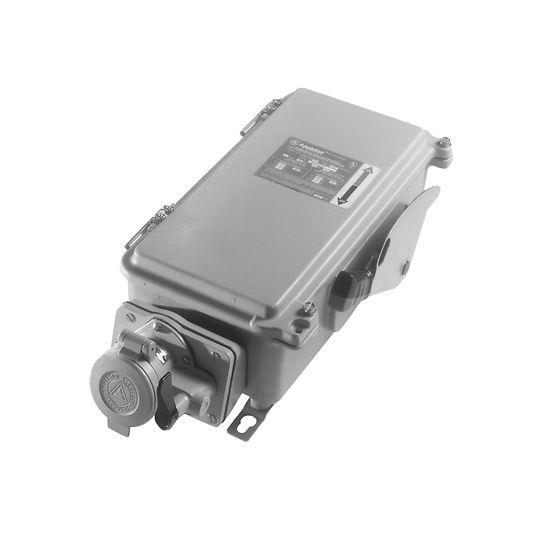

Appleton™ MD2SR Factory Sealed Interlocked Switched Receptacles

Brand: Appleton
Request Information
Favorite

MD2SR Factory Sealed Interlocked Switched Receptacles are designed to provide short circuit protection in 30, 60 and 100 Amp versions. The internal, factory sealed switch provides safe and reliable power for hazardous, damp and corrosive environments. They are typically used for applications that require portable or fixed heavy duty equipment. A special polarization option prevents the insertion of a plug into a receptacle or connector that is wired for a different voltage.
Features
  • Class J fused version: short circuit withstand rated to 200,000 RMS symmetrical amperes.

  • Unfused version: short circuit withstand rated to 10,000 RMS symmetrical amperes.

  • Positive polarization; only plugs of the same style, number of poles, and Amperage rating may be used with these receptacles.

  • Plug must be inserted into the receptacle before the switch can be turned on. Plug cannot be withdrawn unless the switch is in the off position.

  • Insulated, dual-color polymer operating handle clearly indicates the switch being energized. Ergonomically designed handle is made of high-impact polymer material for exceptional ruggedness, durability and corrosion resistance.

  • Unit is equipped with defeatable door interlock which allows emergency access when switch is energized.

  • Operating handle can be locked in the OFF position with provision to lock in the ON position. Cover can be padlocked closed.

  • Style 2 (shell and extra pole) grounding.

  • Removable hinged cover and key-hole mounting feet allows for easy installation and maintenance.

  • Conduit entry is drilled and tapped to 1-1/2". Reducer bushings 1-1/2" – 1-1/4" and 1-1/2" – 1" provided at no additional cost.

  • Accommodates #8 – #4/0 AWG copper wire.

  • UL Listed for use with Appleton ACP plugs.

    • Specifications

    Brand

    Amperage

    • 30, 60 or 100 A

    Hazardous Area Classification

    • Class I, Division 2, Groups B, C, D, Class II, Division 1, & 2, Groups F, G, Class III, Class I, Zone 2, Group IIC T3, NEMA 3, 3R, 4, 4X, 9FG, 12

    Horsepower Ratings

    • 3, 7.5, 10, 20, 30 or 50

    Materials & Finishes

    • Enclosure is Copperfree (4/10 of 1% Max.) Aluminum with Epoxy Powder Coat. High Impact Polymer Operating Handle. Stainless Steel Hardware & Mounting feet.

    Mounting Box Entries

    • Dead-End

    Number of Poles

    • 3 or 4

    Number of Wires

    • 2 or 3

    Plug Cable Diameter

    • .390 - 1.375 or .875 - 1.906"

    Voltage

    • 240 Vac or 600 Vac
