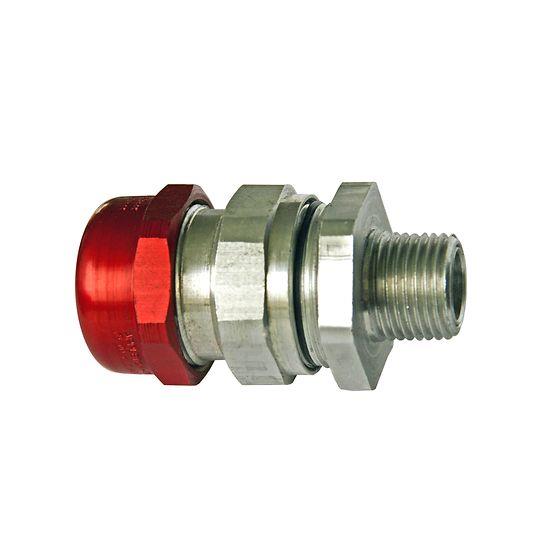

Appleton™ TMCX Connectors For Metal Clad Cable

Brand: Appleton
Request Information
Favorite

Appleton™ TMCX Connectors are designed for use with MC/MCHL, corrugated interlocked aluminum/steel armor or continuously welded armor (TECK or CLX) cables. They provide a means for terminating jacketed type MC cable, forming a mechanical watertight connection and providing ground continuity for cable armor.
Features
  • For use on horizontal or vertical runs.

  • Independent sealing and armor clamping.

  • True 360° grounding.

  • Superior pull out prevention.

  • Compact slim profile.

  • Widest cable acceptance range.

  • Supplied complete with epoxy sealing compound.

  • Disconnectable design.

  • Additional integral deluge proof seal for protection in extreme offshore and onshore environments.

    • Specifications

    Brand

    Cable Armor Diameter Range

    • 0.342" Thru 4.020"

    Cable Jacket Diameter Range

    • 0.354" Thru 4.220"

    Connector Material

    • Bodies, Sleeve & Gland Nut are available in Copperfree (4/10 of 1% Max.) Aluminum, Nickel-Plated Brass, or Stainless Steel

    NEC/CEC Certifications & Compliances

    • Class I, Division 1 & 2, Groups A, B, C, D, Class I, Zone 1, AExd IIC, Class II, Division 1 & 2, Groups E, F, G, Class III, NEMA 4X, IP66

    Other Standard Materials

    • Grounding Spring is Stainless Steel. Bushing is LSF-TPE (halogen Free). End Stop Washer is Nylon. Viton O-Ring.

    Threads

    • NPT Threads are Standard. Metric Threads Available (add Metric Thread Size to the End of Catalog Number)

    Trade Sizes

    • 1/2" Thru 4"

    Documentation
