BD Sensors Digital Pressure Gauge, BAROLI 05P
Images are representations only.

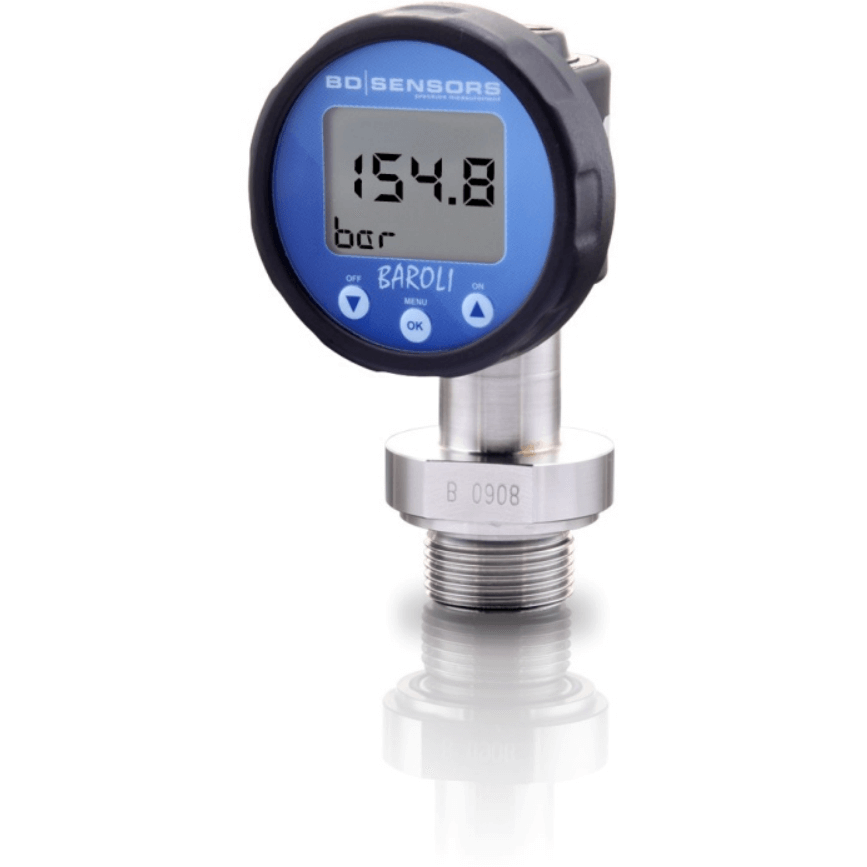

BAROLI 05P Digital Pressure Gauge

Brand: BD Sensors
Request Information
Favorite

The battery-powered digital pressure gauge BAROLI 05P with flush welded stainless steel diaphragm enables a local displaying of values in applications, where high requirements on hygienic process connections and easy cleaning or sterilisability are requested. The filling medium is food compatible oil with FDA approval. The BAROLI 05P display housing is rotatable, thus ensuring an easy reading even under unfavorable mounting conditions. Additional functions as changing unit, displaying minimum / maximum values, calibrating of offset and span, as well as configuring the automatic switching-off complete the profile.
Features
  • Nominal pressure from psi: 0 to 5,801.2 (kPa:0 to 40,000, bar: 0 to 400)
  • Rotatable housing
  • 2-line LC display
  • 4.5-digit 7-segment display
  • 6-digit 14-segment additional display
  • For viscous and pasty media

    • Specifications

    Brand

    Approvals & Certifications

    • CE
    • EMC: Emission & Immunity According to EN 61326, 2014/30/EU
    • FDA
    • PED: 2014/68/EU
    • REACH
    • RoHS

    BSP Connection

    • G 1" (DIN 3852) with Flush Diaphragm
    • G 1/2" (DIN 3852) with Flush Diaphragm

    Enclosure, Body Material

    • 316L Stainless Steel, 1.4401
    • Display Housing: PA 6.6
    • Display Housing: Polycarbonate

    Environmental Protection

    • IP65

    Fill Material

    • Filling Fluids: Food Compatible Oil with FDA-Certificate
    • Filling Fluids: Silicone Oil

    Pressure Range

    • bar: 0 to 400
    • kPa: 0 to 40,000
    • psi: 0 to 5,802

    Pressure Type

    • Absolute
    • Gauge
