Burkert Swing Check Valve, TFU005
Images are representations only.

TFU005 Swing Check Valve

Brand: Burkert Fluid Control Systems
Request Information
Favorite

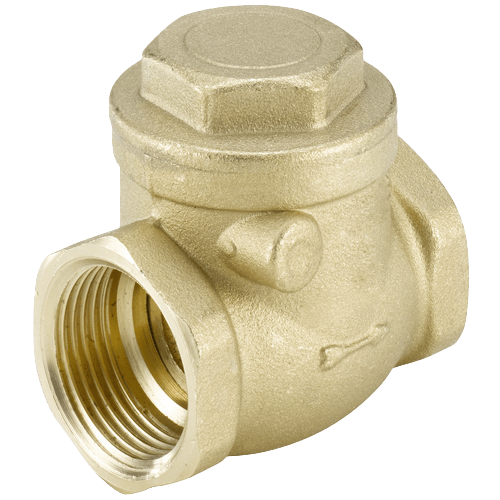

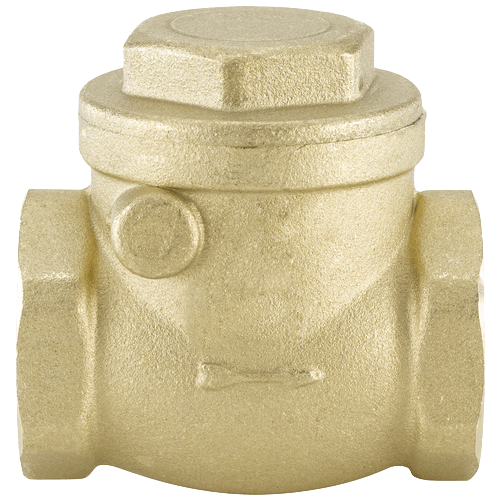

Burkert Swing Check Valve, TFU005
Swing check valve with metal seal for horizontal installation. For opening is a pressure difference of psi: 1.45 (kPa: 10 ,bar: 0.1) required.
Features
  • Brass body
  • Metal seal

View Details

Specifications

Brand

BSP Connection

  • 1" BSPT Female
  • 1/2" BSPT Female
  • 1-1/2" BSPT Female
  • 1-1/4" BSPT Female
  • 2" BSPT Female
  • 3/4" BSPT Female

Differential Pressure

  • Opening Pressure - psi: 1.45 (kPa: 10, bar: 0.1)

Disc Material

  • Brass (CW 617N)

Enclosure, Body Material

  • Brass (CW 617N)

Mounting

  • Horizontal

Orifice Size

  • 0.59" to 1.96" (15 to 50 mm)

Pressure Range

  • psi: 145 (kPa: 1,000, bar: 10), Maximum

Process Temperature

  • 110° C (230° F), Maximum

Seat / Seal Material

  • Seal: Metallic
