United Electric Terminal Head Style RTD Temperature Sensor, Style 75
Images are representations only.

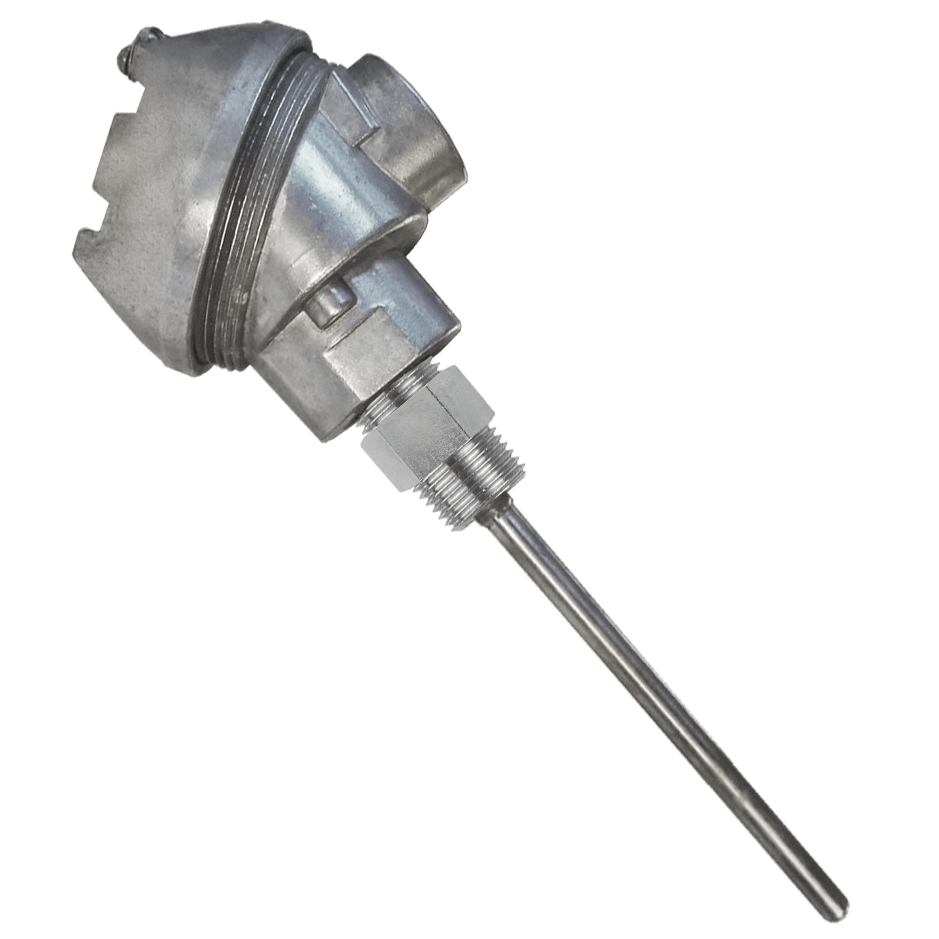

Style 75 Terminal Head Style RTD Temperature Sensor

Brand: United Electric Controls Ltd.
Request Information
Favorite

Designed for use in any pipe or surface temperature measuring application.
Features
  • NEMA 4 or 4X and Explosion-proof Terminal Head Option
  • Heat transfer pad with excellent temperature response
  • Rugged stainless steel sheaths for excellent mechanical protection
  • Replaceable element design for simplified RTD replacement — to replace a faulty element, you simply remove the head cover, disconnect the leads and remove the flexible element. You then insert the new element and reconnect the leads. Your process is up and running in minutes
  • Options include dual RTD sensors, thermocouple sensors and a variety of weld pad and head styles

View Details

Specifications

Brand

Accuracy

  • ± 0.01%
  • ± 0.06%
  • ± 0.12%

Approvals & Certifications

  • ATEX EEx D IIC
  • CSA Class I, Division 1, Groups B, C, D, Class II, Groups E, F, G
  • FM Class I, Division 1, Groups B, C, D, Class II, Groups E, F, G
  • UL Class I, Division 1, Groups C, D, Class II, Groups E, F, G

Approvals & Certifications

  • Certificate of Conformance

Communication

  • HART

Conduit Connection

  • 1/2" NPT
  • 3/4" NPT

Diameter

  • Sheath: 0.125" to 0.375" (3.17 to 9.52 mm)

Electrical Connectors

  • #6 & #10 Spade Terminal, Copper-Plated
  • #8 & #10 Ring Terminal
  • 1/4" Push-On Insulated Terminal, Copper-Plated
  • Cable Gland
  • Terminal Block

Environmental Protection

  • Explosion-proof
  • IP66
  • IP67
  • IP68
  • NEMA 4
  • NEMA 4X

Gasket Material

  • O-Ring Gasket: Silicone Rubber

Input

  • 4-20 mA, 2-Wire Transmitter

Length

  • Sheath Length: 36" (914.4 mm), Maximum

Materials of Construction

  • Explosion-proof Terminal Head: Stainless Steel
  • Insulated Conductor: Teflon
  • Sheath & Terminal Head: 316 Stainless Steel
  • Terminal Head: Cast Iron
  • Terminal Head: Cast or Epoxy Coated Aluminum
  • Terminal Head: Nylon
  • Terminal Head: Polypropylene (White/Black)

NACE & NIST

  • NIST Traceable Calibration

Name Plate, Tag Material

  • Stainless Steel

NPT Connection

  • 1/2" NPT Male

Operating Temperature - Sensor

  • -200° to 788° C (-328° to 1,450° F)

Output

  • 4-20 mA, 2-Wire Transmitter, Isolated or Non-Isolated Output

Process Connection Material

  • Stainless Steel

RTD Type

  • Pt100

Sensor, Probe Connection

  • 2-Wire
  • 3-Wire
  • 4-Wire

Sensor, Probe Material

  • Platinum

Sensor, Probe Type

  • RTD
