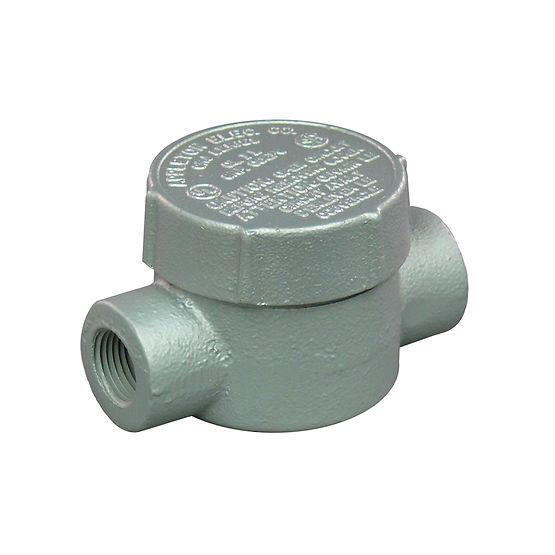

Appleton™ GRJ Conduit Outlet Boxes
Brand: AppletonAppleton™ explosionproof, dust-ignitionproof, raintight GRJ conduit outlet boxes are furnished with internal ground screw. They are ideal for use in indoor and outdoor classified locations. These corrosion-resistant outlet boxes provide access for maintenance, allow the connection of different lengths of conduit, and for changing the direction of conduit.
Features- Explosionproof, dust-ignitionproof, raintight
- Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity
- Furnished with covers
- Malleable iron bodies have high tensile strength and ductility. Provides great resistance to corrosion, impact, and shock
- Smooth, rounded integral bushing in each hub type box protects conductor insulation
- Externally threaded body with internally threaded cover
- Small, round conduit outlet boxes
- Used with threaded metal conduit for general purpose wiring
Specifications
Brand
NEC/CEC Certifications & Compliances
- Class I, Division 1 & 2, Groups C, D, Class II, Division 1 & 2, Groups E, F, G, Class III
Standard Materials & Finishes
- Malleable Iron Body with Triple-coat Finish (1) Zinc Electroplate, (2) Chromate, & (3) Epoxy Powder Coat
