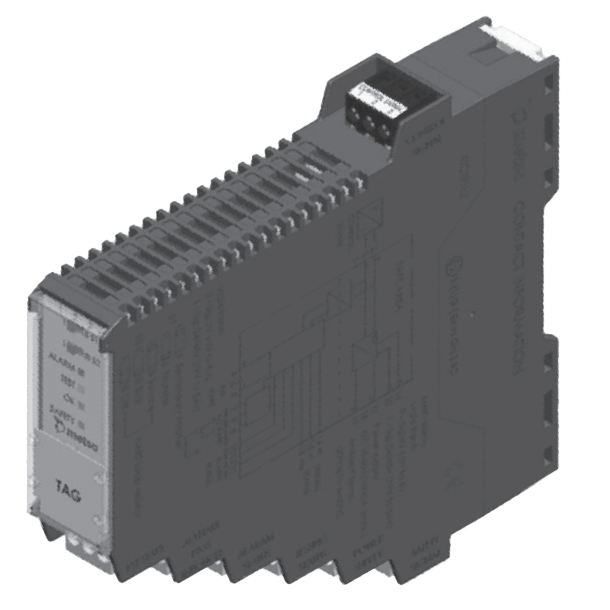

Neles RCI9H2 Remote Communication Interface for Valvguard VG900H

Brand: Metso
Request Information
Favorite

Remote Communication Interface RCI9H2 is intended to be used together with the Neles ValvGuard VG9000H intelligent safety solenoid.

When 24 Vdc output (DO) in the safety system or logic is used RCI9H2 is needed between the DO and VG9000H field device.

The primary function of RCI9H2 is to convert binary signal to SIL 3 compatible 4/20mA current signal.

RCI9H2 also provides relay outputs for monitoring the test and alarm status of the VG9000H and a discrete input for commanding VG9000H to start a PST (Partial Stroke Test).

Additionally, RCI9H2 includes an isolator barrier and can be used in intrinsically safe applications.

RCI9H2 provides HART communication for diagnostics and configuration of the VG9000H.

The HART communication is available when a 24 Vdc power supply is connected, also during the emergency trip.

Specifications

Brand

Ambient Temperature Range

  • -20° to 60° C (-4° to 140° F)

Approvals & Certifications

  • ATEX Sira 13-ATEX-2026X
  • IECEx Sira 13.0014X, IEC61508
  • TÜV

Approvals & Certifications

  • Electromagnetic Compatibility: EN 61326, EN 61000-6-2, EN 61000-6-4
  • SIL 3

Communication

  • HART

Electrical Protection

  • Overvoltage
  • Polarity

Electrical Rating

  • Relay: 1 A at 24 V, Maximum

Environmental Protection

  • IP20

Indication

  • LED

Input

  • 0-Signal: 0 V (-3 to 5 V) - Safety Input (Leakage < 2 mA), Power Supply, PST Start
  • 1-Signal: 24 V (19-54 Vdc) - Safety Input, Power Supply, PST Start
  • 1-Signal: 48 V (19-54 Vdc) - Safety Input, Power Supply, PST Start
  • 4.74 mA at 24 Vdc - PST Start
  • 46.4 mA at 24 Vdc - Safety Input
  • 47.9 mA at 48 Vdc - Safety Input
  • 60 Vdc, Maximum
  • 9.47 mA at 48 Vdc - PST Start
  • HART (Sink Mode): 24 Vdc
  • HART (Source or Sink Mode): 11 mA

Load

  • HART (Sink Mode Internal): 230 ohms
  • HART (Source Mode External): 600 ohms, Maximum
  • Output: 596 ohms, Maximum

Mounting

  • DIN Rail Mounting According to EN 60715

Output

  • HART (Source Mode): 24 Vdc
  • Loop Powered Mode 1 (1-Signal): 16.4 mA (16-17 mA) - VG9000H
  • Loop Powered Mode 1, Loop Powered Mode 2 (0-Signal): 0 mA - VG9000H
  • Loop Powered Mode 2 (1-Signal): 20.5 mA (18-22 mA) - VG9000H
  • Normal Mode (0-Signal): 4.2 mA (3.8-5.6 mA) - VG9000H
  • Normal Mode (1-Signal): 20.5 mA (18-22 mA) - VG9000H

Response Time

  • Input to Output: < 100 milliseconds - VG9000H

Switch Type

  • SPDT
  • SPST
