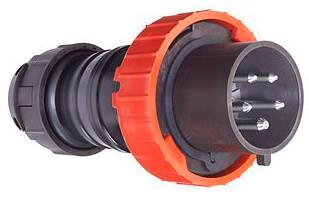

Appleton™ UPR Series 32 Amp Plugs and Sockets
Brand: AppletonUPR Series 32 Amp Plugs and Sockets are compact, lightweight, strong and corrosion resistant. They are used with portable or stationery electrical equipment in corrosive atmospheres and in Zone 1 and 2 and 21 and 22 installations. The UPR is designed with a mechanical interlock to insure disengagement cannot occur while energized. The same plug used in hazardous locations can also be safely used with interlocking non-hazardous location receptacles.
Features- Plug and socket system is designed with a mechanical interlock to insure disengagement cannot occur while energized
- Large ON/OFF actuator on the receptacle gives clear, visible indication of the receptacle status for maximum hazardous location protection
- LV receptacle can be locked in 0 (Off) and 1 (On) positions
- Different voltages are color coded for easy identification
- The receptacles are keyed to accept UPR plugs of the proper voltage
- Receptacle explosionproof switch
- UPR plugs can be used in non-hazardous IEC 60309-2 sockets
- Operating temperature of -20° C to +55° C (-4° F to +131° F)
Specifications
Brand
Area Classification
- Zone 1 & 2 - 21 & 22, Ex II 2 GD, IP66, IK09
Hertz
- 50/60 Hz
Materials & Finishes
- Polyamide Wall Socket & Plug.
Number of Poles
- 2, 3
Number of Wires
- 3, 4, 5
Operating Temperature
- -20° to +55° C (-4° to +131° F)
Voltage
- 100/130 Vac, 200/250 Vac, 380/415 Vac, 480/500 Vac or 600/690 Vac
