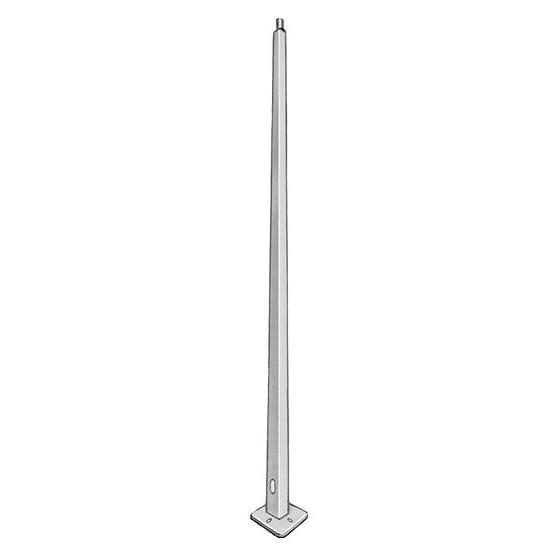

Appleton™ Square Tapered Steel Poles

Brand: Appleton

Square Tapered Steel Poles are used to mount single or multiple luminaires to heights from 6.1 to 11.9 m (20 to 39 ft).

Features

0.61 mm (2 in) pipe size tenon accepts a single luminaire or 2, 3, or 4 luminaires with appropriate pole-top mounting bracket.

High strength shafts have a uniform taper and are made from 11 gauge commercial quality hot rolled steel.

Base plates are of structural quality hot rolled steel with minimum yield strength of 36,000 psi.

A 76.2 x 127 mm (3 in x 5 in) reinforced handhole with cover and grounding lug 355.6 mm (14 in) above the pole base is standard.

Anchor bolts are furnished complete with nuts and washers, and are of 55,000 psi steel.

Available with optional bronze powder coat finish (to match Appleton fixtures) or a galvanized finish.
