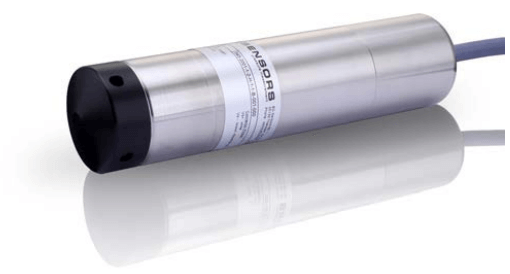

LMK 382H Level Probe

Brand: BD Sensors

The stainless steel probe LMK 382H has been designed for continous level measurement in waste water, waste and higher viscosity mediums. Basic element is a robust and high overpressure capable capacitive ceramic sensor example for low levels.

Specifications

Brand

Approvals & Certifications

  • ATEX: IBExU 10 1186X, II 1 G Ex Ia IIB T4 for Zone 0, II 1D Ex IaD 20 T85° C for Zone 20
  • CE
  • EMC: Emission & Immunity According to EN 61326
  • IEC 60770
  • REACH
  • RoHS
  • TÜV NORD

Enclosure, Body Material

  • 316L Stainless Steel

Environmental Protection

  • IP68

Flange Size - 1-1/2" (DN40)

  • 1-1/2" (DN40) - PN 40

Flange Size - 1" (DN25)

  • 1" (DN25) - PN 40

Flange Size - 2" (DN50)

  • 2" (DN50) - PN 40

Flange Size - 3" (DN80)

  • 3" (DN80) - PN 16

Output

  • 4-20 mA, 2-Wire

Pressure Range

  • bar: 0.05 to 19.61
  • kPa: 5.88 to 1,961
  • meters Wc: 0.6 to 200
  • psi: 0.85 to 284.5
