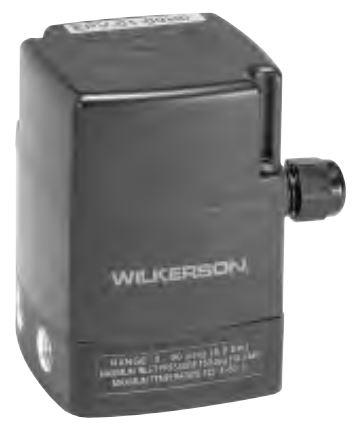

EPV Electronic Proportional Valve

Brand: Wilkerson Corporation
Request Information
Favorite

The EPV provides highly accurate pressure for static and low flow applications. In addition, the EPV is available in both 1/8" NPT or G-series outlet ports on three sides and has a unique compact design which allows for easy installation.

For optimum valve and system performance, we recommend a pre-filter package consisting of a 5 micron particulate filter and a .01 micron coalescing filter.
Features
  • Optional LCD Panel Displays P2 Pressure in PSIG or bar
  • Modern Design and Appearance
  • Light Weight
  • 0-10 VDC, 4-20 mA, or Internal Control Signal Options Available

Displaying prices & availability for Ohio, United States in USD. Change location.

Models matching criteria: 8
EPV-01-PBH0
  • Display - psi
  • Voltage - Internal with LCD
Out of Stock
EPV-01-00H0
  • Display - None
  • Voltage - 0-10 Vdc w/ LCD
Out of Stock
EPV-C1-B0H0
  • Display - bar
  • Voltage - 0-10 Vdc w/ LCD
Out of Stock
EPV-01-0AH0
  • Display - None
  • Voltage - 4-20 mA w/ LCD
Out of Stock
EPV-C1-BAH0
  • Display - bar
  • Voltage - 4-20 mA w/ LCD
Out of Stock
EPV-01-P0H0
  • Display - psi
  • Voltage - 0-10 Vdc w/ LCD
Out of Stock
EPV-C1-BBH0
  • Display - bar
  • Voltage - Internal with LCD
Out of Stock
EPV-01-PAH0
  • Display - psi
  • Voltage - 4-20 mA w/ LCD
Out of Stock

View Details

Specifications

Brand

Flow Rate

  • Cv = .02

Linearity

  • < 1.0 PSIG (.06 bar)

Maximum Supply Pressure

  • 150 PSIG (10.3 bar)

Operating Temperature

  • 32° to 125° F (0° to 52° C)

Output Pressure Ranges

  • 15 / 30 / 60 / 90 PSIG
  • 1/2, 1/4, 1/6, 2 bar

Overall Accuracy

  • 0.8% Scale

Port Size

  • NPT / BSPP-G: 1/8

Response

  • 50 mSEC

Step Response

  • with Step Input 600 mSEC

Weight

  • .92 lb. (.42kg)
