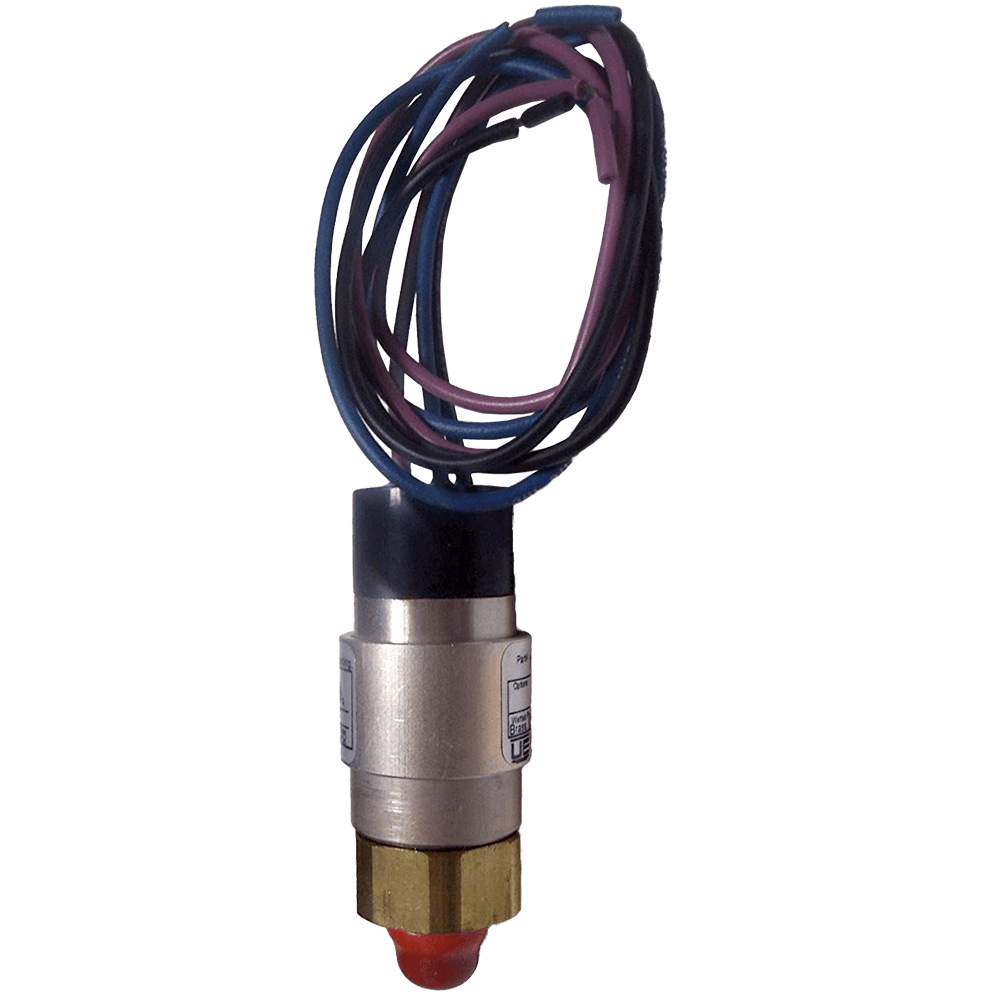

10 Series Type 10D Models 10 to 12 Pressure Switch
Brand: United Electric Controls Ltd.Available with seven electrical termination varieties, a choice of sensors, and several pressure connections, the 10 Series is designed to meet most requirements for a variety of OEM and industrial applications. Just 1-1/4" in diameter and as small as 3" high, this compact, cylindrical switch mounts wherever space is at a premium.
A reliable and cost-effective switch, the 10 Series is ideal for applications with high settings and surges. Among the tough applications in which the product has proven itself are: mobile hydraulic units, compactors, balers and lube oil systems. In addition to standard capabilities, modified designs or options are available to help you meet specific application requirements.
Design flexibility allows for customized pressure connections, electrical terminations and pressure ranges.
Features- Tamper-Resistant Field Adjustment
- 1-1/4" Diameter
- NPT or SAE threaded pressure connections
- cULus recognized, CE compliant to low voltage directive and pressure equipment directive
- Optional ATEX intrinsic safety compliance
- Optional leadwire/cable lengths
- Rugged and vibration resistant
Specifications
Adjustment Type
- Factory Set (Pre-Set) One Switch
- Set Point Adjustment
Ambient Temperature Range
- -18° to 71° C ( 0° to 160° F) with Buna-N Construction
- -18° to 82° C (0° to 180° F) with Viton Construction
Applications
- Balers & Lube Oil Systems
- Compactors
- Industrial Applications
- Mobile Hydraulics Units
- OEM Applications
Approvals & Certifications
- ISO 9001
Approvals & Certifications
- ATEX Directive (94/9/EC) II 1 G EEx Ia IIC T6 Tamb: -50° to 60° C (-58° to 140° F)
- CE
- CRN
- CSA C22.2 No. 14, File # E42272
- GOST-R 51330.0, 51330.1, 51330.10 & 51330.14
- Low Voltage Directive (LVD) 73/23/E & 93/68/EEC
- PED: 97/23/EC
- UL (C,US) 508
BSP Connection
- G 1/2" Male
Cable Length
- Leadwire: 4 to 12 feet (1.21 to 3.65 meters)
Deadband
- psi: 1 to 60 (kPa: 6.895 to 413.7, bar: 0.068 to 4.1)
Diaphragm Material
- Buna-N
- EPDM
- Viton
Electrical - Free Leads
- 20" (508 mm)
Electrical Connectors
- 18 AWG
Electrical Contacts
- Gold Flashing over Silver Contact for Loads down to 5 mA at 6 Vdc, 2 mA at 12 Vdc & 1 mA at 24 Vdc
- Normally Closed
- Normally Open
Electrical Rating
- 0.5 A Resistive, 0.25 A Inductive at 125 Vdc
- 5 A at 250 Vac
- 5 A Resistive, 3 A Inductive at 30 Vdc
- 5 A Resistive, 5 A Inductive (75% Power Factor), at 125/250 Vac, 1/4 hp
Enclosure, Body Material
- Aluminum
Environmental Protection
- Intrinsically Safe
- IP66
- NEMA 4
Mounting
- 1/8" NPT Male
- Bracket Kit
- Surface
Name Plate, Tag Material
- Stainless Steel ID, Paper Tag & Wire Attachment
NPT Connection
- 1/4" NPT Male
- 1/8" NPT Male
O-Ring Material
- Buna-N
- Viton
Overpressure & Static Pressure Limits
- Overpressure - psi: 1,000 to 2,500 (kPa: 6,895 to 17,240, bar: 68.9 to 172.4)
Process Connection Material
- 316 Stainless Steel
- Brass
Process Temperature
- Maximum
Proof Pressure
- psi: 3,000 (kPa: 20,685, bar: 206.8)
Repeatability
- Set Point Repeatability: ± 1% of Full Scale Range
SAE Connection
- 7/16"-20 SAE Male
Service
- Oxygen Service Cleaning, Alcohol Cleaning to Remove Residue from the Process Connection
Set Point - Decreasing
- bar: 0.3 to 41.4
- kPa: 27.58 to 4,137
- psi: 4 to 600
Set Point - Increasing
- bar: 0.3 to 41.4
- kPa: 27.58 to 4,137
- psi: 4 to 600
Shock
- Set Point Repeats after 50 G, 10 millisecond Duration
Storage Temperature
- -40° to 82° C (-40° to 180° F)
Switch Type
- One SPDT
System Pressure
- bar: 172.4
- kPa: 17,236
- psi: 2,500
UNF/UNC Connection
- 7/16"-20 UNF Male-2A
Vibration
- Set Point Repeats after 10 G, 5 to 500 CPS
