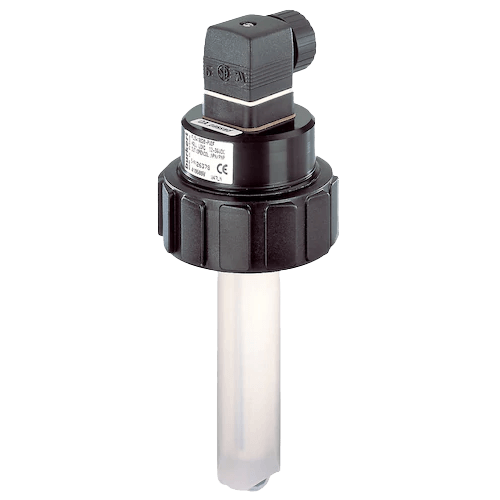

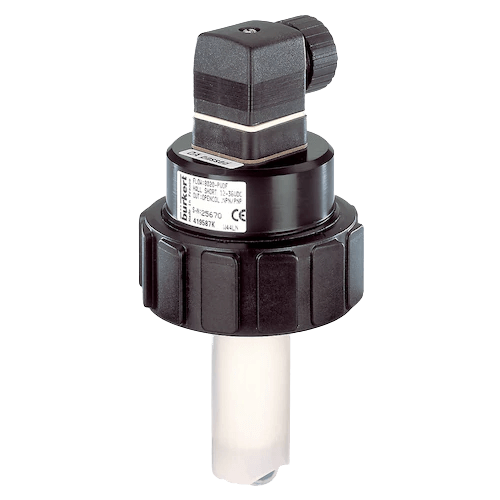

8020 Insertion Flowmeter with Paddle Wheel
Brand: Burkert Fluid Control Systems
The paddle wheel flowmeter for continuous flow measurement is especially designed for use in neutral, slightly aggressive, solid free liquids. The Burkert designed fitting system ensures simple installation of the devices into all pipes from DN20 to DN400. The flowmeter produces a frequency pulse signal, proportional to the flow rate, which can easily be transmitted and processed by a Burkert transmitter/controller.
Features- Economic integration in pipe systems without any additional piping
- 3-wire frequency pulse version to directly interface with PLC’s (both PNP and NPN)
- Connection to Burkert devices in remote versions
Specifications
Accuracy
- Measurement Deviation (Standard K-factor): ± 2.5% of Reading
- Measurement Deviation (Teach-In): ± 1% of Reading
Ambient Temperature Range
- Operating & Storage: -15° to 60° C (5° to 140° F)
Approvals & Certifications
- EN ISO 5167-1
Approvals & Certifications
- EMC: EN 61000-6-2, EN 61000-6-3
Bearing Material
- Ceramics
Cable Length
- 164 feet (50 meters), Maximum
Consumption
- Current (Pulse Version): ≤ 50 mA
- Pulse “Low Power” Version: ≤ 0.8 mA
Diameter
- Pipe: 3/8 to 16" (DN20 to DN400)
Electrical Connectors
- 1.5 mm² Cross Section
- Cable Plug
- Shielded Cable
Enclosure, Body Material
- Polyethylene (PE)
Environmental Protection
- IP65
Frequency
- Output: 0 to 300 Hz
Humidity
- ≤ 80% Relative Humidity, Non-Condensing
Linearity
- ± 0.5% of Full Scale
Measuring Range
- 0.3 to 10 m/sec
Nut & Bolt Material
- Union Nut: Polycarbonate (PC)
Operating Voltages
- 12-36 Vdc
Output
- Pulse “Low Power” Version: 10 mA - Maximum
- Pulse Version: 100 mA - Maximum
Output Format
- Open Collector
Pipe Connection
- DN25 Pipe
- DN32 Pipe
- DN40 Pipe
- DN50 Pipe
- DN65 Pipe
Plug Material
- Cable Plug: Polyamide (PA)
Power Supply
- 12-36 Vdc
Pressure Range
- bar: 0 to 10
- kPa: 0 to 1,000
- psi: 0 to 145.1
Process Temperature
- PP: 0° to 80° C (32° to 176° F)
- PVC: 0° to 50° C (32° to 122° F)
- Stainless Steel, Brass, PVDF: -15° to 80° C (5° to 176° F)
Repeatability
- ± 0.4% of Reading
Reverse Polarity Protection
- Yes
Seat / Seal Material
- Seal: EPDM
- Seal: FKM
Sensor, Probe Material
- Sensor Armature: PVDF (Polyvinylidene Fluoride)
Shock
- EN 60068-2-27
Switch Type
- Pulse Version (NPN/PNP), Pulse “Low Power” Version (NPN): Transistor
Tri-Clamp Connection
- DN25 Tri-Clamp®
- DN32 Tri-Clamp®
- DN40 Tri-Clamp®
- DN50 Tri-Clamp®
- DN65 Tri-Clamp®
Vibration
- EN 60068-2-6
Viscosity
- 300 cSt, Maximum
Welded Connection
- 1" (DN25) Weld End
- 1-1/2" (DN40) Weld End
- 1-1/4" (DN32) Weld End
- 2" (DN50) Weld End
- 2-1/2" (DN65) Weld End
Wetted Materials
- Axis: Ceramics
- Fitting & Paddle Wheel: PVDF (Polyvinylidene Fluoride)
- Fitting: 316L Stainless Steel, 1.4404
- Fitting: Brass
- Fitting: PP (Polypropylene)
- Fitting: PVC
