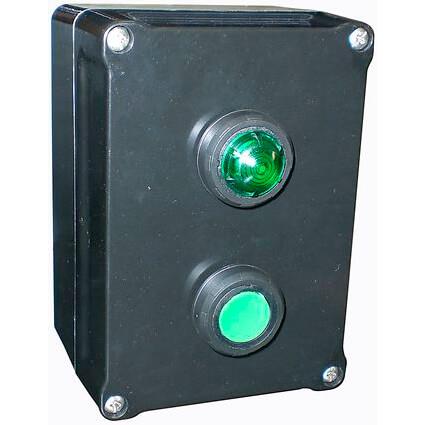

Appleton™ Unicode™ 2 Series Polyester Control Stations and Switches
Brand: AppletonAppleton™ Increased Safety Unicode™ 2 Series fiberglass reinforced polyester control stations and switches are ideal for use in hazardous locations and washdown areas. A variety of push buttons and selector switches are available for use in conjunction with contactors or magnetic starters for remote control of motors. They provide circuit control and/or selection. Pilot lights are available to provide visual assurance that an electrical function is being performed at a remote or local location.
Features- Ideal for the control of equipment at power, chemical and petrochemical plants, petroleum refineries, re-verse osmosis plants, pulp and paper processing plants and various industrial applications
- Employs Ex de method of protection which eliminates the need for external seals
- Operators include push buttons, illuminated push buttons, selector switches, control and load break switches and LED pilot lights.
- Pilot light employs high intensity single LED with lifetime of 100,000 hours that can be used at 12 Vac to 254 Vac 50/60 Hz and 12 Vdc to 60 Vdc
- Up to 3 contact blocks per actuator can be used
- Contact block technical data. IEC rated operating voltage (Ue): 500 Vac - 110 Vdc. IEC switching capacity: AC12: 16 Amp/400 Vac, AC14: 10 Amp/400 Vac, AC15: 6 Amp/500 Vac, DC13: 2 Amp/24 Vdc and 1 Amp/110 Vdc. NEMA switching capacity: A600: 10 Amp/600 Va
- Selector switch technical data. IEC rated operating voltage: 690 Vac. IEC rated operating current: maximum 16 Amp. IEC switching capacity: AC1: 16 Amp/690 Vac, AC15: 16 Amp/415 Vac, AC3: 8 Amp/500 Vac, AC3: 4 Amp/690 Vac, AC3: 16 Amp/690 Vac, DC1: 10 Amp
- Enclosures are rated for IP66 with firmly secured gasket
- Operators and contact blocks are spaced for easy wiring
- Wide selection of termination methods available
- Choice of DIN rail mounted high performance contact block suitable for low intensity (less than 5 mA). TS35 rail mounted components are held securely in place during operation and easily removed for service
- Brass Inserts are provided for TS35 DIN rails or mounting plates to be installed inside the enclosure
Specifications
Brand
Accessories
- Key for Changing Actuator Blocks. Guard for Mushroom Head Actuator. Padlockable Guard. M5 & M6 Earth Stud. Combination Drain & Breather Available in Brass, Polyamide & Stainless Steel. See Catalog Pages for Details
Approvals & Certifications
- Zone 1 & 2 - 21 & 22, Ex II 2 GD, Ex De IIC, Ex Demb IIC, Ex TD A21, IP66, IK10
Approvals & Certifications
- Class I, Division 2, Groups A, B, C, D, Class II, Groups F, G, Class III, Typical 4X, Class I, Zone 1, AEx De IIC/AEx TD 21, IP66
ATEX & IECEx Ambient Temperature
- -55° to +60° C (-67° to +140° F) (empty Enclosure, Temperature to Be Determine According Actuator)
NEC Certifications & Compliances
- Class I, Division 2, Groups A, B, C, D, Class II, Groups E, F, G, Class III, Ex De IIC/DIP A21, IP66, Typical 4X
NEC/CEC Ambient Temperature
- -55° to +60° C (-67° to +140° F)
NEC/CEC Temperature Class
- T5 or T6
Options
- Stainless Steel or Lamacoid Nameplates with Different Color Combinations. Padlocking Facility on Selector Switches. Padlocking Facility for Momentary & Maintained Push Buttons. Special Contact Arrangements Available, See Unicode™ 2 Series Customized Contr
Standard Materials
- Fiberglass Reinforced Polyester (FRP) Body & Cover with Black Finish. Captive 316 Stainless Steel Cover Screws
Surface Temperature
- T75° C (T167° F)
