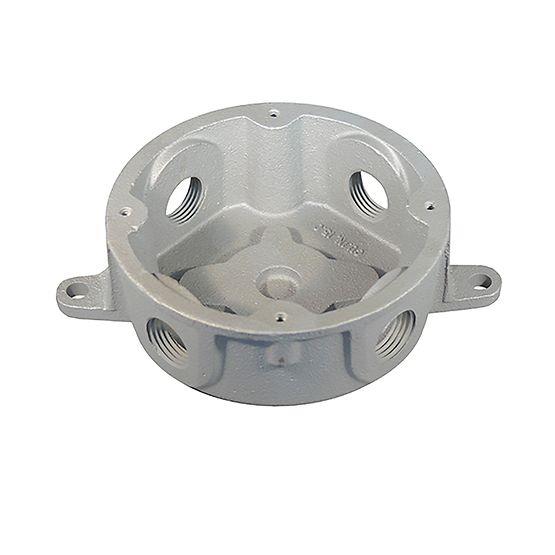

Emerson Appleton Conduit Outlet Box, JB
Images are representations only.

Appleton™ JB Conduit Outlet Boxes, Covers and Hangers

Brand: Appleton

Appleton™ BKX Round Junction Boxes are used to connect and change direction of conduit runs. These conduit outlet boxes serve as pulling fittings and permit access to conductors for splicing and maintenance.
Features
  • Smooth, rounded integral bushings in hubs protect conductor insulation.

  • Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity.

  • Roomy interiors provide more wiring space.

  • Available in three inside depths: 1-1/2", 2-1/4" and 3".

  • Furnished with four tapped holes and two close-up plugs. Boss in rear of box allows for fifth entry, factory or field entries, 1/2" or 3/4".

  • Suitable for exposed or concealed installations.

  • Malleable iron boxes offer high tensile strength, ductility, corrosion resistance and impact and shock resistance.

  • Copperfree aluminum boxes are lightweight, self-oxidizing, self-renewing and offer a high corrosion resistance.

  • Enclosed and gasketed boxes when used with hub or blank covers provide CSA Type 4 fit. When used with a gasket, BKX junction boxes are weatherproof.

  • BKX junction boxes are dust-ignitionproof when supplied for Class II, Division 1 applications. Suitable for use in grain elevators, flour mills and other environments where dust presents a hazard.

  • Cushion fixture hangers are enclosed and Gasketed.

  • Can be fitted with terminal block. For a factory installed terminal block, add suffix -CB to catalog number.

    • Specifications

    Brand

    Standard Materials & Finishes

    • Class II, Division 1, & 2, Groups E, F, G, Class III, CSA Enclosure 4
