Metso Concentric Rubber Lined Steel Reducer
Images are representations only.

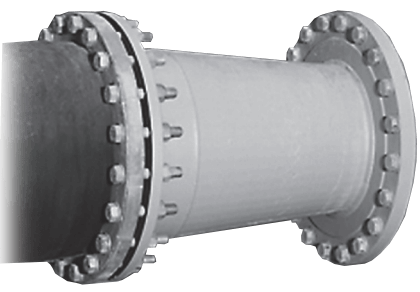

Concentric Rubber Lined Steel Reducer

Brand: Metso

Rubber lined steel reducers provide a transition between pipes or hoses of different diameters to compensate for changes in flow velocity.

Trellex Rubber Lined Steel Reducers are fabricated from rolled and welded steel sheets, lined with T50 rubber.

Specifications

Brand

Enclosure, Body Material

  • Rubber Lined
  • Steel

Flange Size - 10" (DN250)

  • 10" (DN250) - 150# (ASME B16.5)
  • 10" (DN250) - PN 10 (DIN 2501)

Flange Size - 12" (DN300)

  • 12" (DN300) - 150# (ASME B16.5)
  • 12" (DN300) - PN 10 (DIN 2501)

Flange Size - 14" (DN350)

  • 14" (DN350) - 150# (ASME B16.5)
  • 14" (DN350) - PN 10 (DIN 2501)

Flange Size - 16" (DN400)

  • 16" (DN400) - 150# (ASME B16.5)
  • 16" (DN400) - PN 10 (DIN 2501)

Flange Size - 18" (DN450)

  • 18" (DN450) - 150# (ASME B16.5)
  • 18" (DN450) - PN 10 (DIN 2501)

Flange Size - 20" (DN500)

  • 20" (DN500) - 150# (ASME B16.5)
  • 20" (DN500) - PN 10 (DIN 2501)

Flange Size - 24" (DN600)

  • 24" (DN600) - 150# (ASME B16.5)
  • 24" (DN600) - PN 10 (DIN 2501)

Flange Size - 4" (DN100)

  • 4" (DN100) - 150# (ASME B16.5)
  • 4" (DN100) - PN 10 (DIN 2501)

Flange Size - 5" (DN125)

  • 5" (DN125) - 150# (ASME B16.5)
  • 5" (DN125) - PN 10 (DIN 2501)

Flange Size - 6" (DN150)

  • 6" (DN150) - 150# (ASME B16.5)
  • 6" (DN150) - PN 10 (DIN 2501)

Flange Size - 8" (DN200)

  • 8" (DN200) - 150# (ASME B16.5)
  • 8" (DN200) - PN 10 (DIN 2501)

Operating Pressure

  • psi: 145 (kPa: 1,000, bar: 10)

Proof Pressure

  • 1.5 times Working Pressure

Documentation

Data Sheets
